Peristaltic Pump for Pumping Foam Concrete

2015-12-26 18:58:43

Gaode peristaltic pump could be used for pumping foam concrete, according to the difference of capacity, will have different types for option.

Usually the peristaltic pump’s output is 10m3/h, 15m3/h, 20m3/h, so have GH50, GH65 and GH76 peristaltic pump for option. And the pumps’ conveying pressure is 15Bar, max. horizontal conveying distance is 90m, vertical distance is 30m, If need more bigger pressure, will have Trelleborg hose to replace.

The main technical data sheet the peristaltic pump is:

Model

GH76 peristaltic pump

GH65 peristaltic pump

GH50 peristaltic pump

Output

20 m3/h

10-15 m3/h

8-10 m3/h

Max. theoretical conveying pressure

1.5MPa

1.5Mpa

1.5Mpa

Hose ID(mm)

76

65

50

Rotation

42r/min

42r/min

35r/min

Max. aggregate Dia ( mm )

15mm

12

10

Max. Suct.Left ( m )

5

5

5

Motor Power (kw)

18.5kw

11

7.5

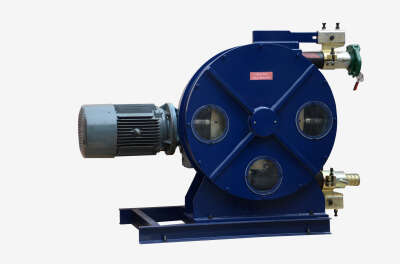

foam concrete pump

The advantage of the peristaltic pump as below:

1, The peristaltic pump no valves, only tube to replace;

2, The peristaltic pump easy maintain, low cost, if use peristaltic pump to pumping foam concrete will have high cost-performance.

So if need peristaltic pump to pumping foam concrete, please contact us freely. Suitable type and the best price will be offered.
