Industrial hose pump for tunnel boring machine
Industrial hose pump is a multifunctional fluid conveying equipment. It can transport materials with high viscosity, high solid content, solid particles, fiber materials and impurities without blocking. This is also a strong point when transporting corrosive liquids and will not cause any leakage. So it can be used for tunnel boring machine.
The advantage of the hose pump for tunnel boring machine is the strong self-priming ability. For industrial pumps, they usually face many different working environments when they are used, and they have a wide range of applications: chemical, petroleum, sewage treatment, food, mining, construction, ceramics, paper and other industries, well-known, functional and multifunctional Sexual function hose pump.
Industrial hose pump for tunnel boring machine uses a motor to drive a set of silver rotations. The rotor passes through the soft U-shaped pump tube in turn and is alternately squeezed to release the working efficiency of the pump. The fluid squeezed in the hose produces a flow output. After the pressure disappears, the hose will rely on its own elasticity. restore. Just like the repeated contraction and relaxation of our body muscles will cause blood to flow in the blood vessels.
Industrial hose pump for tunnel boring machine points out "volume, vacuum generation, liquid suction". This continuous action is the technical principle of industrial hose pump. After repeated compression and release, this squeezing action creates a vacuum, which draws fluid into and through the pump tube to complete the pumping process.

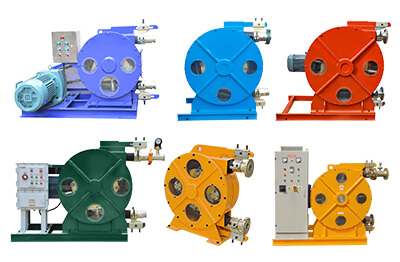

Industrial hose pump structure:
(1) Pump casing: all are carbon steel castings and are quenched; the pump body has a cavity structure and does not need to be filled with other liquids.
(2) Rotor: Cast steel casting, the rotor head can be replaced separately after wear, low operation and maintenance cost. The rotor is wear-resistant, corrosion-resistant and runs smoothly.
(3) Pressure mixing: alloy steel material with sufficient rigidity and sealing on the end face.
(4) Hose: rubber (NR) material, the inner wall should be smooth, easy to clean, high pressure resistance, wear resistance and corrosion resistance.
(5) Base: Made of 45# channel steel, easy to install.
(6) Import and export device: 304 stainless steel material, flange interface.
If you are interested in our industrial hose pump products or have any questions, you can leave us a message or contact us directly, info@gaodetec.com, we will reply as soon as possible after receiving your information.
