Hydraulic jet grouting drilling rig made in China

2020-05-07 17:27:33

Hydraulic jet grouting drilling rig made in China
Hydraulic jet grouting drilling rig made in China, The product we produce the XL-50 hydraulic jet grouting drilling is a kind of full hydraulic power head anchor crawler drilling rig. By altering jet grouting module, the anchor drilling rig can be used for jet grouting construction.

The hydraulic drilling rig is mainly applied to urban subway, high-rise buildings, airport, ground source heat pump and other deep foundation pit for anchoring, jet grouting and dewatering.

In addition, this XL-50 jet grouting drilling rig is stable, efficient, and able to drill complex layers and deal with accidents. The hydraulic clamp & wrench device enormously decreases the assistant time and also reduces the intensity of operating work. The XL-50 jet grouting drilling rig is just applied to the rock and broken layer construction.

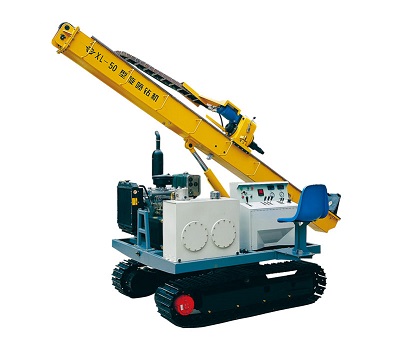

jet grouting drilling rig


XL-50 hydraulic jet grouting drilling rig features:

1. Top-drive head driven by hydraulic, stepless speed regulation, high efficiency and low labor intensity

2. Variable hydraulic system with load feedback, low energy consumoment

3. First use special valve fixed position by friction, satiable for jet grouting technique

4. Top-drive head has wide range of rotary speed, meet varying layer and drilling technology

5. With track chassis, easy and speedy to move

6. With rotary support

7. Longer stroke of top-drive head, reduce auxiliary operation time

8. Compact structure, centralized operation, easy and safety

9. With display unit for verticality of derrick, rotating of top-drive head and lift speed

Our hot products are also have GL-4000 jet grouting drilling rig, GL-4000 full hydraulic crawler jet grouting anchor DTH drilling rig is a kind of multifunctional drilling rig designed and manufactured for jet grouting operation, DTH drilling and anchor rod hole drilling.

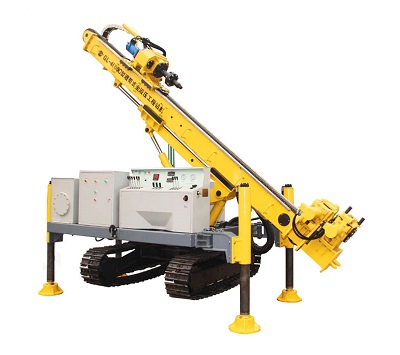

hydraulic drilling rig

GL-4000 hydraulic jet grouting drilling rig features:

1. Pitch luffing mechanism, homework range

2. Variable hydraulic system with load feedback, low energy consumption

3. With display unit for rotating speed of top-drive head, lift speed and verticality of derrick, quickly and accurately to fix position

4. With track chassis and rotary device, easy and speedy to move

5. The major components in hydraulic system adopt the imported brand with a stable, reliable system, and they all have a long service life

6. Top-drive head driven by hydraulic, variable speed regulation, high efficiency

Now we have developed full series of hydraulic drilling rig, if you have any questions, please contact us, we will provide you with the best service at any time.
