High pressure grouting machine for subway station

2016-03-27 21:10:41

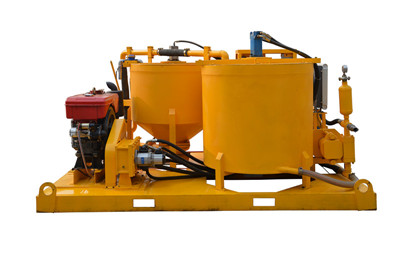

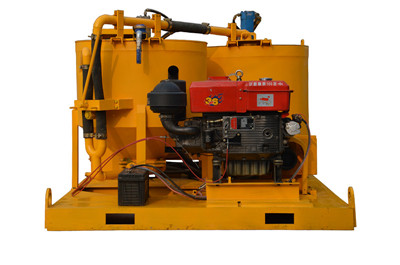

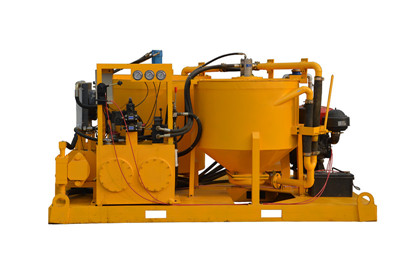

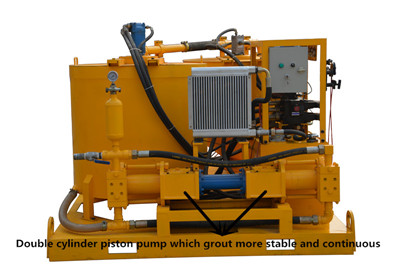

Our high pressure grouting machine GGP500/700/100PI-D is with double cylinder piston pump, 500L mixer, 700L agitator and water meter. Max. pressure of high pressure grouting pump is 50bar, max. output is 100L/min. The grout mixer speed is 1500rpm, it could handle material which water/cement ratio is larger than 0.5, however our engineer also could design the mixer which could handle water/cement ratio is 0.4 at most. The double cylinder piston pump make the grouting more stable and continuously, it is the suitable grouting machine for subway station.

cement grout mixer with pump



grouting machine for subway station



high pressure grouting pump



hydraulic grout injectioin pump
