Electric mortar pump plant for sale

2016-11-10 11:27:38

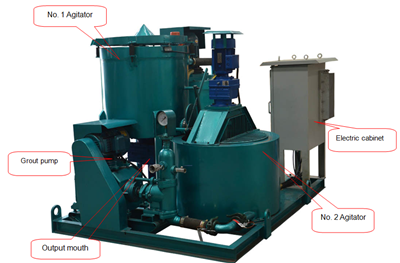

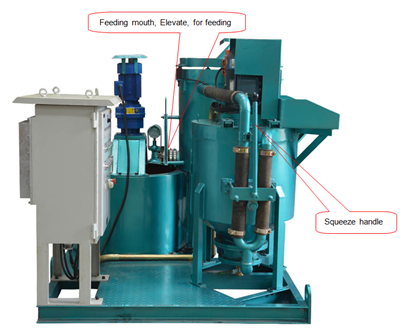

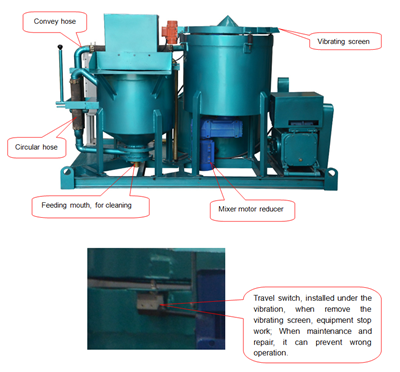

GGP220-300-300PL-E electric mortar pump plant is specially designed for mortar mixing and mortar injection. The equipment is a combination of mixer, double agitator and mortar pump in one plant, it is mainly used for highways, railways, water and electricity, construction, mining etc. ground/underground construction.

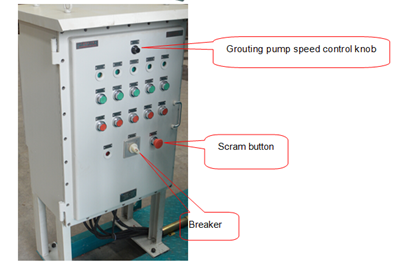

We can mix water and cement by High speed vortex mixer about 2 to 3 minutes, then ,we rotate delivery switch to transport  cement paste to the No.1 agitator. At this time, you can add sand that has been screening to the No.1 agitator. After sand and cement mix evenly, we open discharge outlet to discharge mortar from No.1 agitator to No.2 agitator. then we start mortar pump that sucks mortar from No.2 agitator. This ensures a continuous mixing and grouting operations. According to the requirements of grouting,We can control the displacement of grouting pump by frequency converter. The grouting’s displacement is stepless adjustable.

The machine is high efficiency and low cost, simple operation and convenient maintenance. So it is a cost-effective ideal machine to meet your project requirements.

electric mortar pump plant



electric mortar plant



mortar pump plant for sale


grout plant in China
