The type of double acting hydraulic cylinder is a kind of separating type hydraulic cylinder, it is a kind of new style lifting tool. It has compact structure, simple operation, convenient and safe, etc. it is especially used for factory, oil field, shipping, warehouse, railway building, bridge, etc.

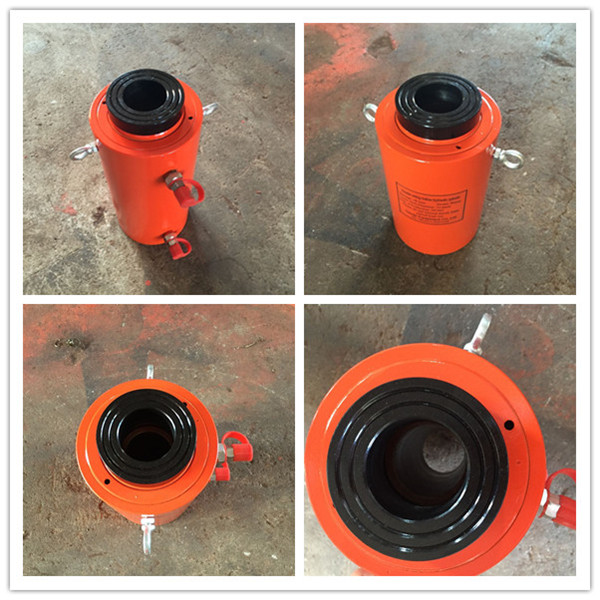

Today we send two sets of 60 ton hydraulic cylinder to Australia. They are hollow hydraulic cylinder, stroke are 89mm and 165mm. Closed height is 248mm and 324mm. Outer diameter is 159. Central hole diameter is 53.8mm.
The below is the technical parameters of double acting hollow cylinder, if you need the type of cylinder, welcome to send inquiry to us.
Technology parameters of double acting hydraulic hollow cylinder:
|
Model |
Capacity Ton |
Stroke mm |
Closed height mm |
Extend height mm |
Outer diameter mm |
Central hole mm |
Weight Kg |
|
RRH-307 |
30 |
178 |
330 |
508 |
114 |
33.3 |
22 |
|
RRH-3010 |
257 |
432 |
689 |
114 |
33.3 |
27 |
|
|
RRH-603 |
60 |
89 |
248 |
337 |
159 |
53.8 |
28 |
|
RRH-606 |
165 |
324 |
489 |
159 |
53.8 |
35 |
|
|
RRH-6010 |
257 |
438 |
695 |
159 |
53.8 |
46 |
|
|
RRH-1001 |
100 |
38 |
165 |
203 |
213 |
79.2 |
39 |
|
RRH-1003 |
76 |
254 |
330 |
213 |
79.2 |
61 |
|
|
RRH-1006 |
152 |
342 |
495 |
213 |
79.2 |
79 |
|
|
RRH-10010 |
257 |
460 |
718 |
213 |
79.2 |
107 |
|
|
RRH-1508 |
150 |
203 |
349 |
552 |
248 |
79.5 |
111 |

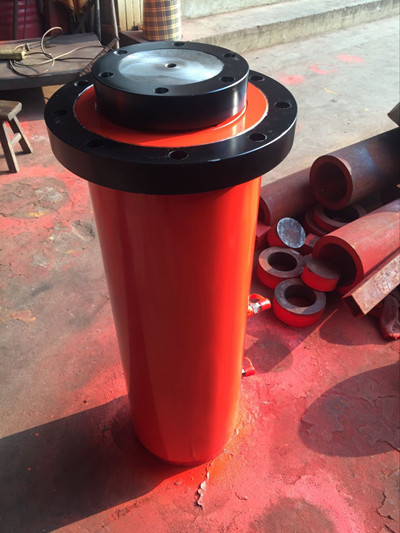

Those parameters are only the parts of double acting hydraulic cylinder, if you have specific requirement about hydraulic cylinder, we also could customize the cylinder as per your demand. The below is a double acting hydraulic cylinder, tonnage is 150 tons, 500mm stroke, closed height is 700mm, outer diameter is 232mm. And we also add two flanges for the cylinder according to customer’s demand. One is cylinder flange, the other one is plunger flange.

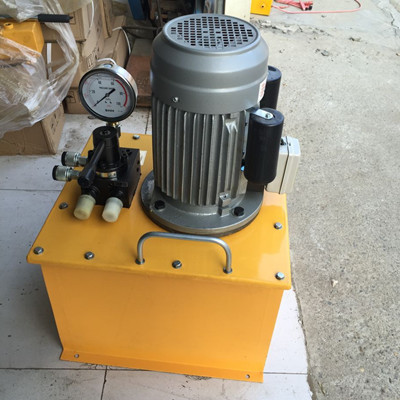

The hydraulic cylinder can be equipped a 2.2kw 42L electric oil pump, like the below picture.
