Crawler DTH drilling rig for sale

2017-12-07 09:32:13

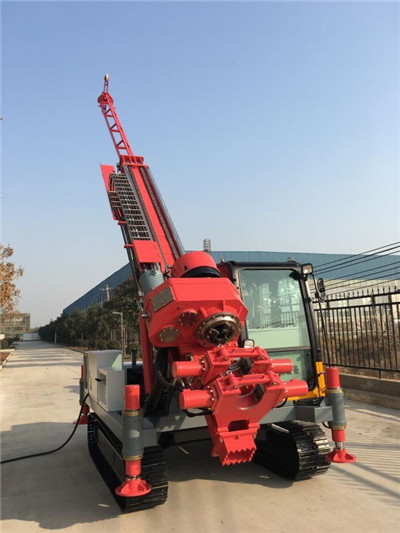

XLT-230 full hydraulic crawler DTH drilling rig is suitable for high - rise building deep foundation anchoring, roadbed, road dam reinforcement and other engineering. This crawler drilling rig is also used for traditional process of single-tube, double-tube and three-tube jet grouting pile. Also used for MJS, S-RJP, SQJ and other high-pressure rotary spray method. Pile diameter can reach to 2m and highly increase the working efficiency.

As for S-RJP method, it is is a kind of excellent construction and very economical construction methods in different construction site, different construction conditions etc.


S-RJP (Speed - RODIN JET PILE) method can create the same modified jet grouting pile in a short time as RJP method. It achieves by increase in the amount of hardening material that in the lower part. RJP workings by using the standard method -- cylindrical type, S-RJP method can use rocking method -- Fan columnar type.


S-RJP method installs the ultra-high pressure jet nozzle and the ultra-high pressure hardening material jetting nozzle in the same direction. It is designed to a back and forth injection angle. Since the injection angle is from 90º to 270º, so the modified body can cause the columnar shape. In the construction site, S-RJP method ensures it cause the same diameter (radius) as the RJP method. Also, it has same characteristic with RJP method.


S-RJP method is inherited the characteristics of ordinary RJP engineering. And at the same time, S-RJP improves its economy and has excellent construction work.


For more information about
drilling rig for sale and drilling method, please email us: info@gaodetec.com.

crawler drilling rig



crawler DTH  drilling rig



drilling rig for sale
