| Items | Units | |||||||

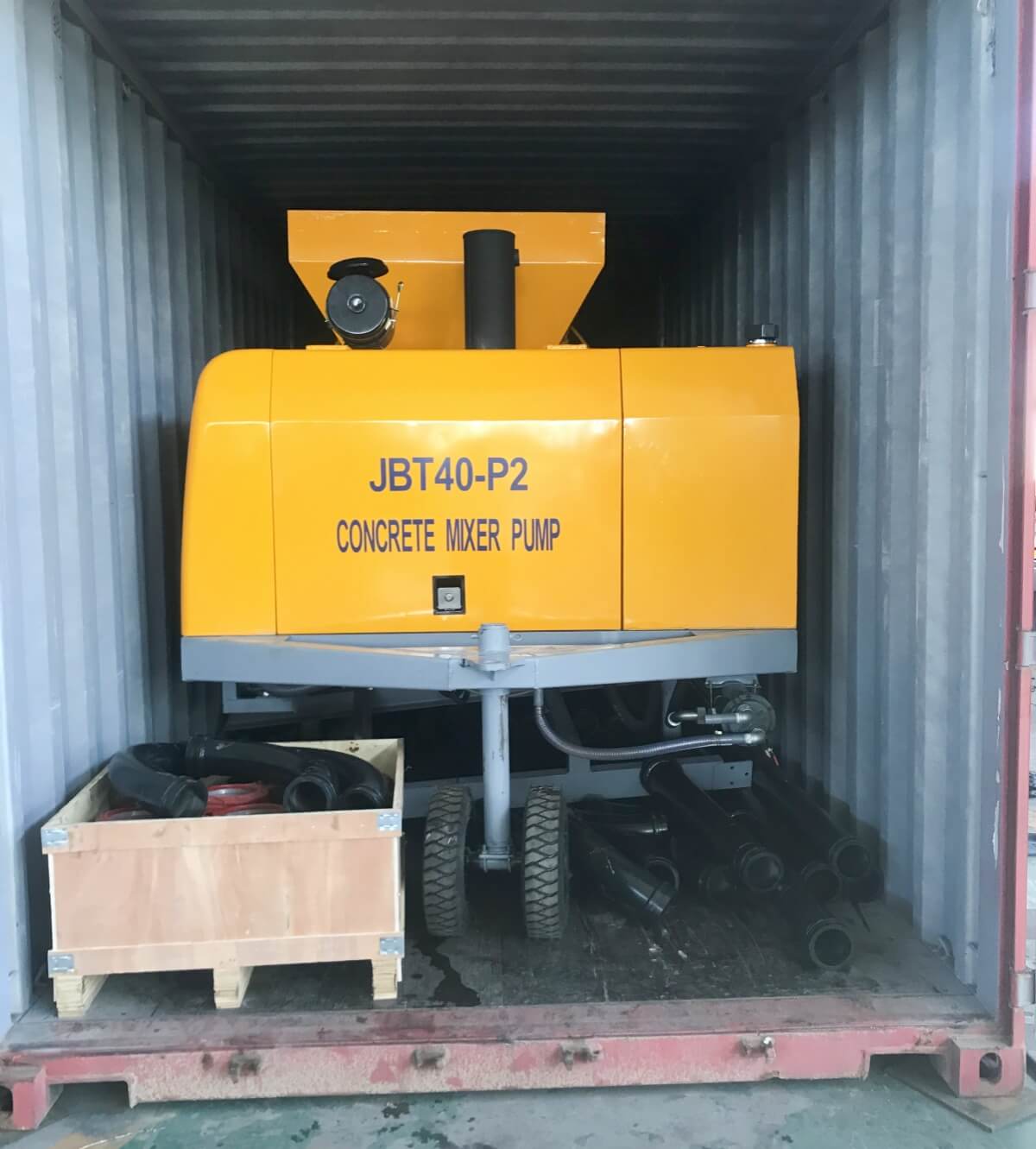

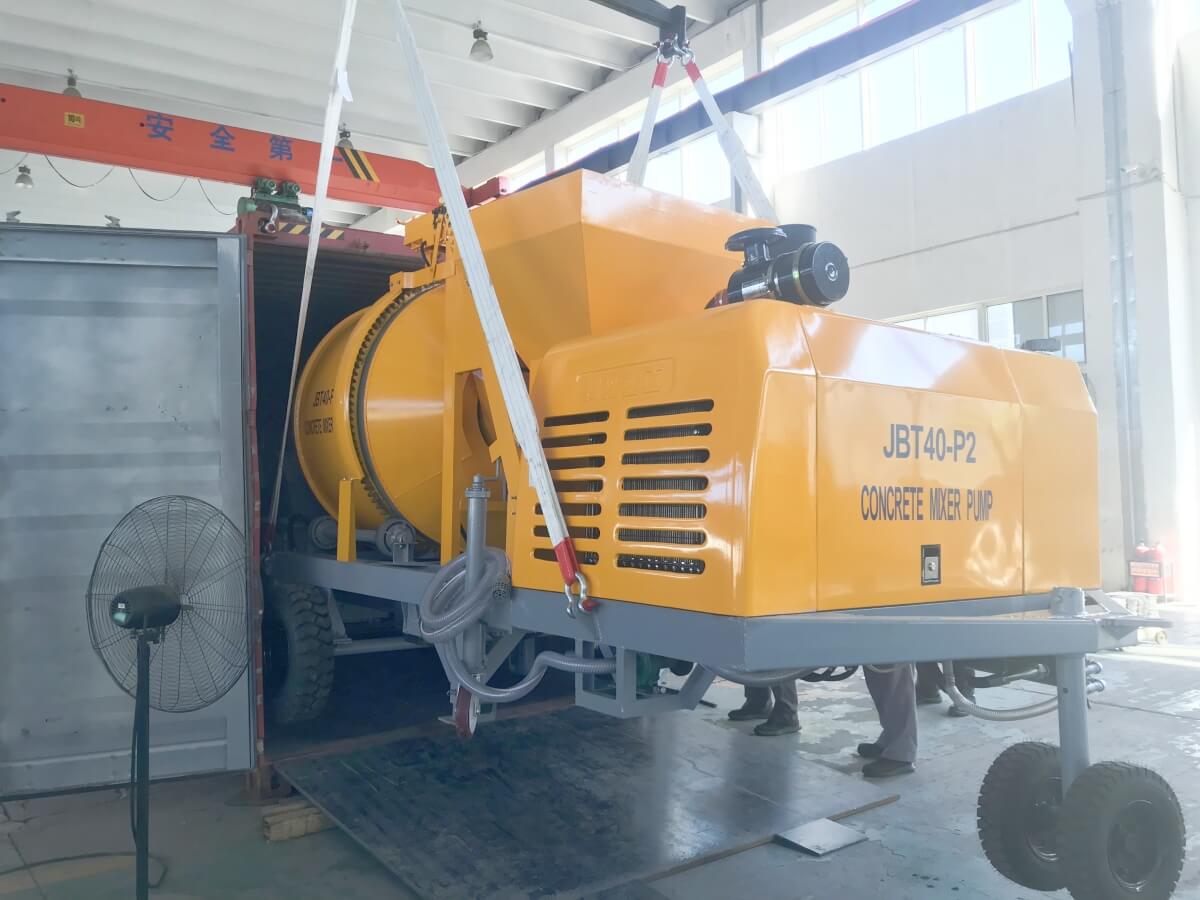

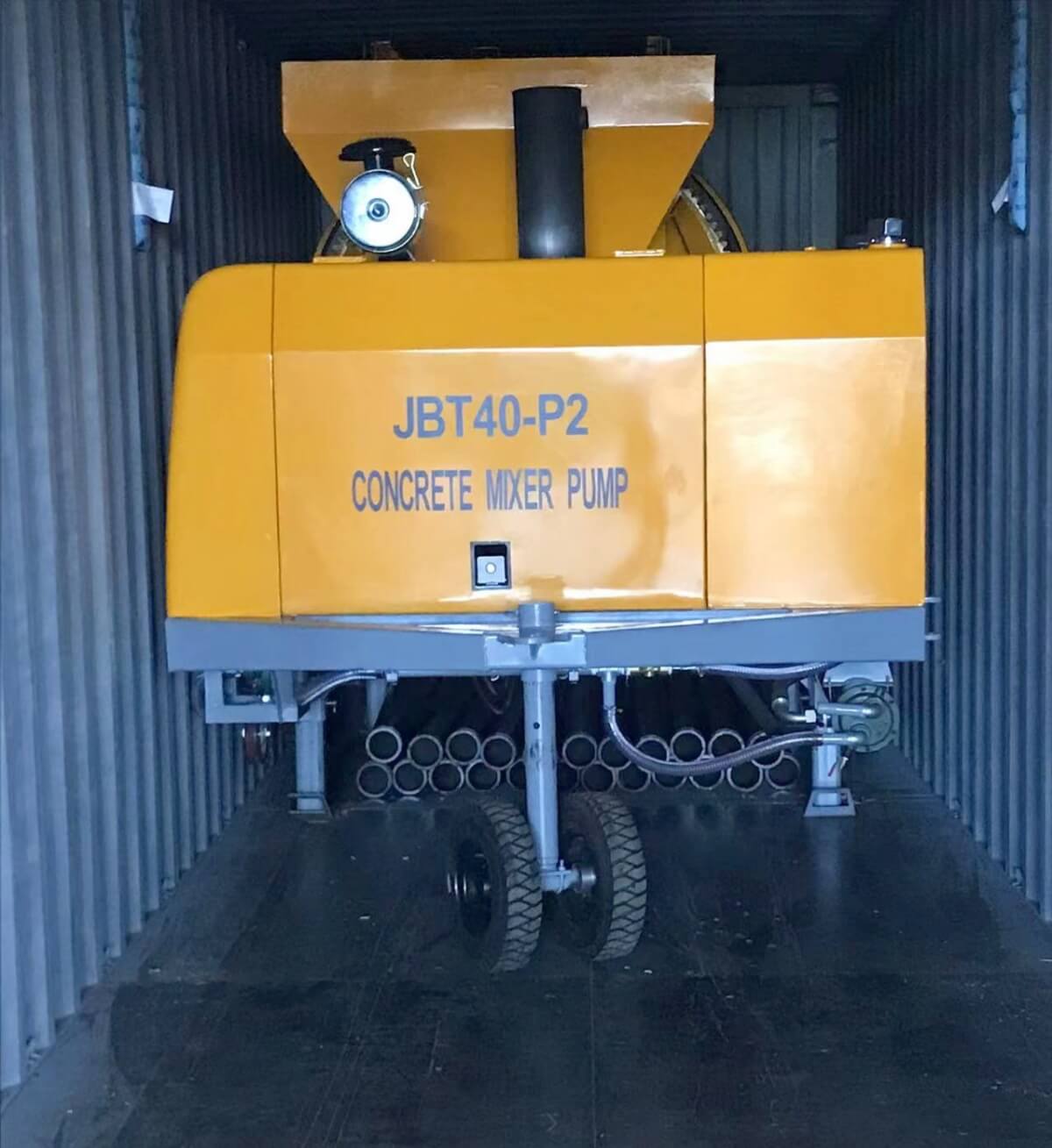

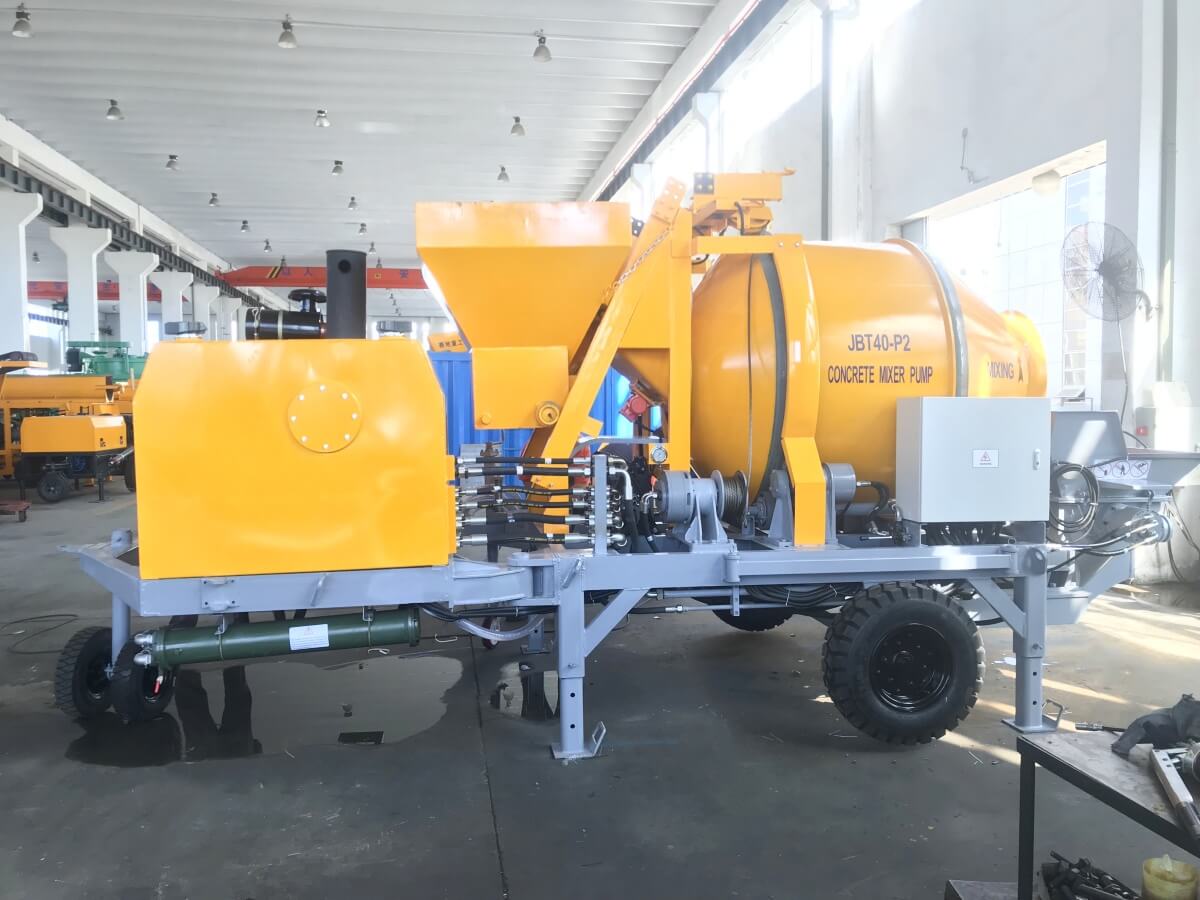

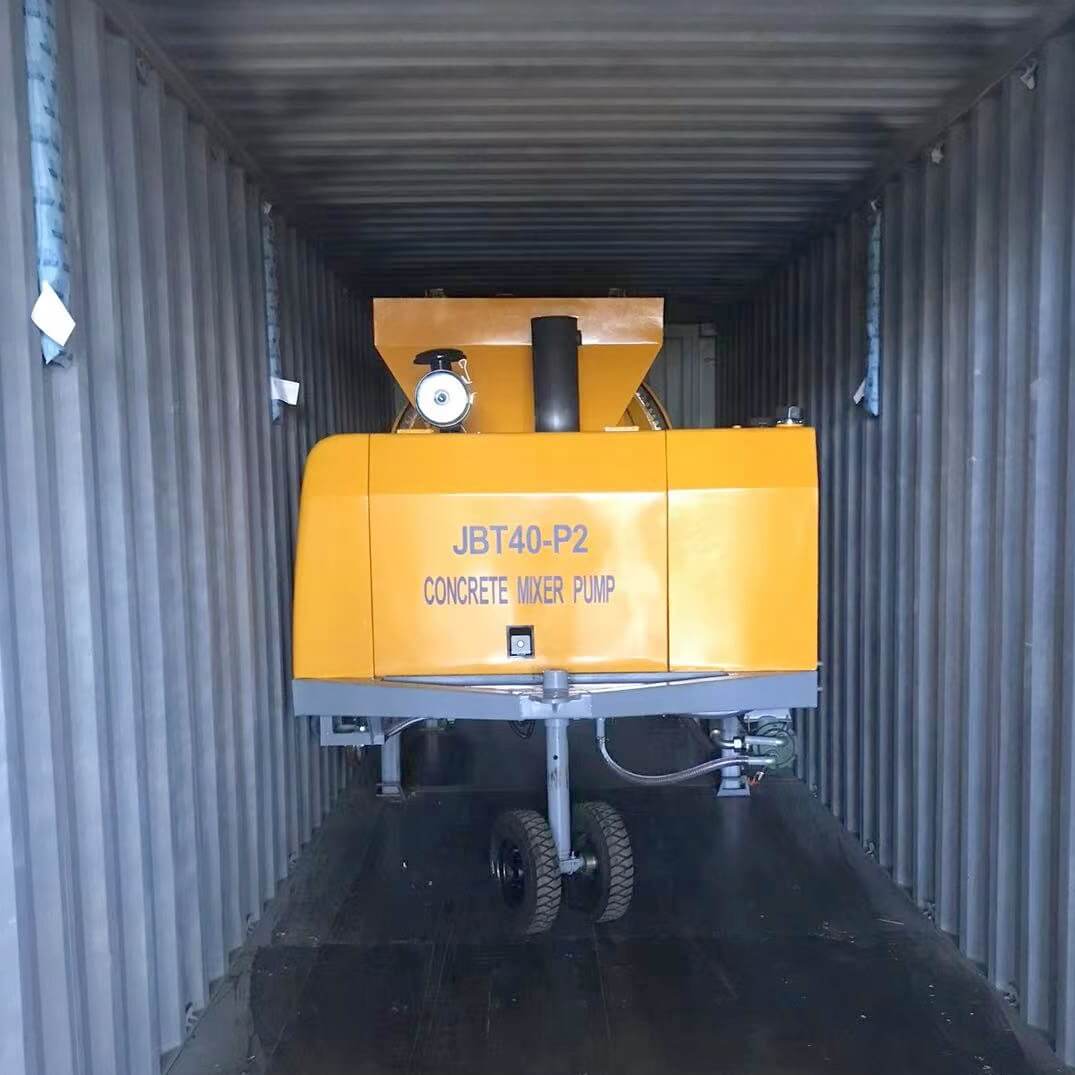

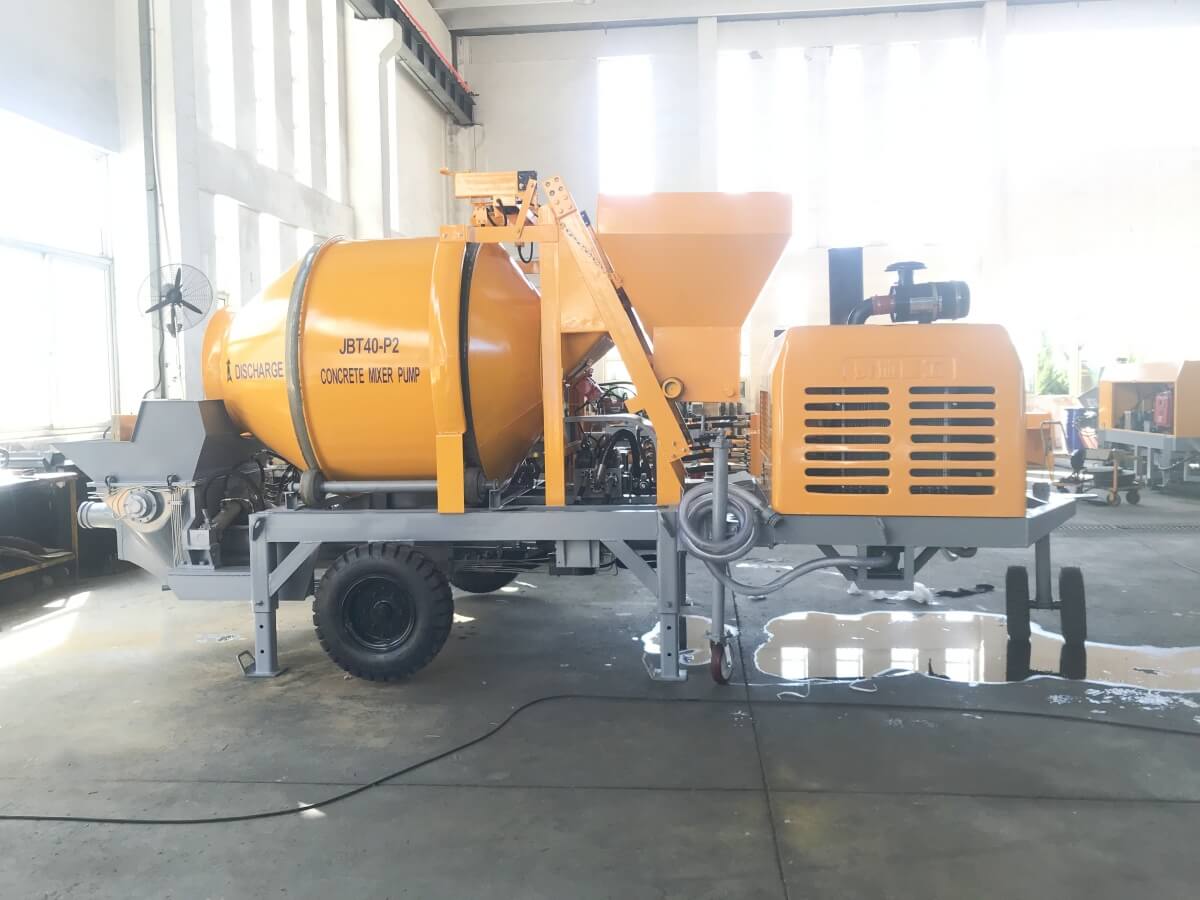

| JBT40 P2 small concrete mixer pump | ||||||||
|
Whole performance of machine
|
Max. theo. concrete output | m3/h | 40 | |||||
| Stir the maximum rated feed | L | 500 | ||||||
| Stir the maximum rated discharge | L | 450 | ||||||
| Max. concrete pumping pressure | MPa | 10 | ||||||
| Distribution valve type | S Valve | |||||||
| Concrete cylinder diameter×stroke | mm | Ф140×1000 | ||||||
| Hopper capacity | L | |||||||
| Outlet diameter | mm | Ф150 | ||||||
|
Power system
|
Winding motor power | kw | 5.5 | |||||
| Stir the motorPower | kw | 4.5 | ||||||
| Water pump motor power | kw | 0.55 | ||||||
|
Electrical engineering power |
kw | 45 | ||||||
| Rotate speed | r/min | 1480 | ||||||
|
Hydraulic system
|
Circuit type | Open circuit | ||||||
| Pumping system pressure | MPa | 28 | ||||||
| Mixing system pressure | MPa | 6-8 | ||||||
| Capacity of oil tank | L | 370 | ||||||
|
The biggest transportation is away from vertically (/Level) |
m | 120/500 | ||||||
|
Other parameters
|
Max. aggregate diameter | mm | Scree: 40 50 | |||||
| Inside diameter of delivering pipe | mm | Ф125 | ||||||
| Dimensions：length×width×height | mm | 4200x2300x3150 | ||||||
| Total weight | kg | 4500 | ||||||
