Chamber filter press for sale

2021-04-25 18:05:34

Chamber filter press for sale
Chamber filter presses are the most widely used type of filter presses currently. You can use it in printing and dyeing industry, papermaking, metallurgy, chemical, textile, food, alcohol, mining, medicine, coal washing, etc.

Chamber filter press for sale


The chamber filter press price has some difference between different factory. For a same size filter press, the difference in price is mainly due to the different materials of the filter plate and frame.
Our filter plates are made of food-grade polypropylene, which can be used in the food industry and meet FDA food-grade testing report standards, while some companies' filter plates are made of recyclable materials and are not recommended for use in the food industry.

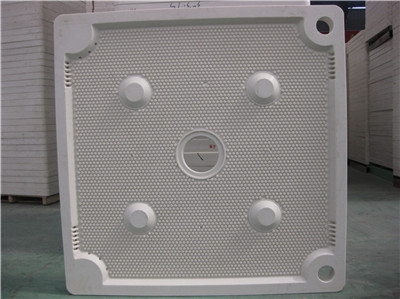

Chamber filter plates for sale


About the filter press frame, it is Q345B thickened rectangular tube, designed with box type welding structure, processed by automatic submerged arc welding process, the weld seam is smooth and beautiful, with vertical support inside and thickened sealing plate outside, to eliminate the deformation of the beam.

Chamber filter press for sale


Gaode Equipment is a filter press manufacturer, we have focused on manufacturing and selling filter press for more than 13 years. The products has shipped to UK, Sweden, Denmark, Mexico, Australia, Russia, Malaysia, Indonesia, Philippines, Pakistan and so on. We can also provide the feed pump, such as hydraulic piston pump, pneumatic diaphragm pump, screw pump, etc.

Chamber filter press for sale


The operation process of automatic chamber filter press for sale mainly includes: firstly, start the hydraulic system to press the filter press, stop automatically after the pressure rises to the set pressure, automatically open the feed pump and the valve on the feed pipeline, beat the slurry into the filter press, filter through the filter cloth, retain the slag in the filter press, and the filtrate flows into the clear water pool through the external stream or the internal stream liquid pipe. When the filter cake in the filter press is full, the feed pump stops and the valve on the feed pipeline is closed, then loosen the pressure plate of the filter press and the pressure plate recedes to the limit to stop. Open the unloading space, the belt conveyor will run automatically and the filter cake will fall into the belt conveyor through the drop hopper and be conveyed to the designated position for unloading by the belt conveyor. After the filter cake is unloaded, restart the pressing system to press the filter press, and the filter plate is pressed tightly for the second feeding operation, which is easy to operate and has stable performance.

Chamber filter press for sale

As a chamber filter press supplier, in our company, you can enjoy one-stop shopping without looking for multiple suppliers, and we can also provide customized services. For more information, please send us an online chat or email: [email protected].
