Cement foaming machine for wall casting

2020-03-23 14:53:12

Cement foaming machine for wall casting
Cement foaming machine also called foam cement, is a new kind of energy efficiency heat insulating material. First put foaming agent into foaming generator and foaming, put it into mixture with cement, and, water and mix, then cast molding into a new type of material. Cement foaming machine for wall casting can be applied for roof insulation constructions. The foam material used in roof insulation is with warm keeping, heat insulating function, it’s effect is 20-30 times the ordinary material, which keeps the room temperature of top floor the same as other floors, warm in winter and cool in summer.

cement foaming machine for wall casting

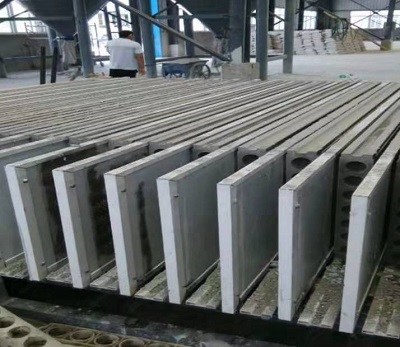

Gaodetec concrete foaming machine can be used in producing various specifications of cement foam board, cement foam bricks and external wall insulation material. Also applied for insulation, moisture proofing, anticorrosion of water, heating and transmission oil pipeline, insulation of low temperature cold store and refrigerated depot section, can also be used in filling tunnel and mine internal voids etc.

foam cement machine for wall casting

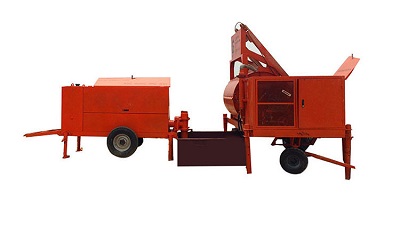

GF20 foam concrete machine includes a belt conveyor, a concrete mixer, a foam generator and a hydraulic piston pump, adopts centralized control technology, can exactly adjust the density of foam cement.
GF20 foam cement machine for wall casting capacity is 30m3/h, max. horizontal pumping distance is 500m, max. vertical pumping distance is 180m, max. aggregate size is 3mm, suitable for floor and roof insulation. Compare with other cement foaming machine, it will take less space, high efficiency of foaming, stable performance.
With belt conveyor and concrete pump, this machine will work completely automatic, not only saving labor but also promoting efficiency.
Feature of GF30 Cement foaming machine for wall casting:
1. Duplex full-hydraulic driven system to ensure high output pressure for high-rise construction.
2. Automatically control the proportion of the various components, density of foaming cement easy to be adjusted.
3. High-quality wear resistant components for long service-life and also provide after-sales service security.
4. Installed with walk round, can move on the ground or mounted on the truck.
5. Air cooling system, without dependence of external water.

foam concrete machine for wall casting

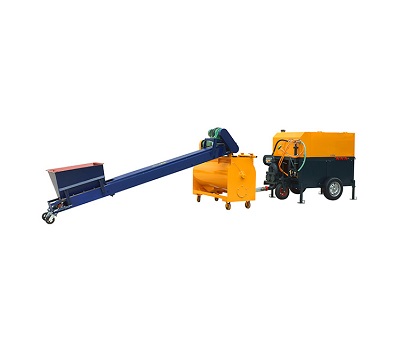

GM2000 lightweight concrete mixer includes feeding system-track and hopper, foaming system-foam generator, mixing system-foam concrete mixer, controlling system-control panel and storing system-stotage tank. It is used to make lightweight foam concrete. The excellent integrity and easy operation means low labour intensity and low building cost.
Besides, good strength characteristics with reduced weight, excellent sound and thermal insulation, and water proof, etc. all these performances make it an ideal substitute of present traditional walls.
GP30 foam concrete pump is used for pumping foam concrete slurry. This foam concrete pump adopts hydraulic piston system to pump foam concrete, more powerful, easy to pour roof, floor and wall.
Gaodetec is a manufacturer specialized in R&D, manufacture and sale of foam concrete machine for wall casting. We also have foaming agent and foam concrete pump. We have now developed full series of products with different of models. Max. output from 5-40m3 /h. Power, output, pressure and voltage are available options for customization.
If you need our cement foaming machine for wall casting, you can tell me freely, email address: info@gaodetec.com
