Automatic Bentonite Turbo Mixer Pump Plant Station for Sale

2017-09-11 15:23:37

Gaodetec GBP series of automatic bentonite turbo mixer/pump plant consists of a steel sheet cylindrical tank, set-up on a strong base frame, the pump and the motor. The muds are mixed through a high speed vortex produced by a special pump which, after sucking the material from the bottom of the tank, sends it back tangentially into the same tank in order to get highest possible efficiency.
Through a time controlled operation of the pneumatic pipe clamp valve of the system, the pump can bring the bentonite slurry to a storage container or directly to the area of use.
By this process it is possible to obtain homogeneous colloidal and high quality mixtures within a very short period of time.

At the same time, GBP system would be used for the mixing and pumping of the water, cementitious powders, pozzolans and admixtures.

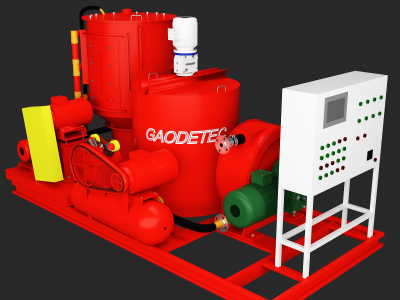

bentonite mixing plant

Technical sheet:

Description

Data

model

GBP1000/1600/20HP-E

Dimensions

4300 *2250*2200mm

Weight

2600kg

Mixer

Tank Capacity

1200L

Output

18-20m3/h

Cyclic Pump

1350L/min

Power

15KW, 50Hz,380V

Rated Rev

1450rpm

Agitator

Capacity

1600L

Rated Rev.

40rpm

Power

2.2KW, 50Hz,380V

Hose Pump

Output

20m3/h

Max. Pressure

1.5MPa

Power

18.5kW,50Hz,380V


bentonite pumping plant
