The use of ultrahigh pressure electric oil pump station way

2017-05-24

Working principle
The ultrahigh pressure electric pump station is the device that electric energy or mechanical energy transform into hydraulic energy, the pump body is swash plate, axial, ration plunger pump. The rotation axis of axial plunger pump is driven by the prime motor (electric motor or gasoline engine). Due to the effect of axis swash plate, make the plunger that contacted with its press plate reciprocating motion along with the axial (plunger is very close to the pressure plate through spring force), oil pocket volume of plunger is changed, through inlet oil valve absorb oil, and then the hydraulic oil is converged to selection valve through oil discharge valve and oil disc, finally, it will be contacted with the hydraulic jack or other hydraulic tools through high pressure oil hose with quick coupler. It can realize lift, go upper or lower or other works. It can realize lift, go upper or lower or other works.

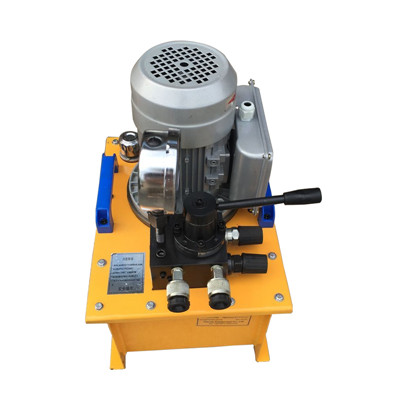

0.75kw double acting oil pump

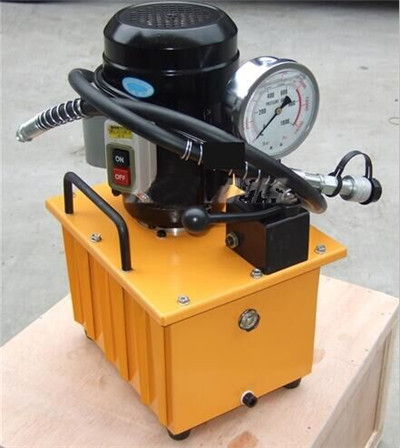

single acting electric pump

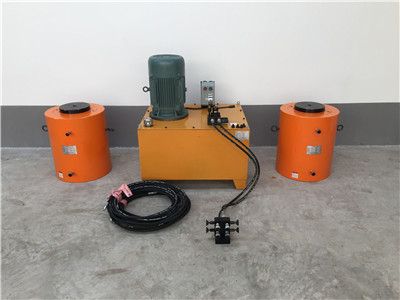

hydraulic jack & oil pump
