Refractory gunite machine for sale in steel plant

2018-09-14 09:56:23

Refractory gunite machine is dry spraying process shotcrete machine, which mainly used for spraying refractory materials or castable etc in steel plant. According to different spray processes, refractory gunite machine is divided into rotor type refractory gunite machine and pressure vessel refractory gunite machine.
All refractory gunite machine all need air compressor provide compressed air. Rotor type refractory gunite machine working principle is motor drive rotor body rotating and feeding materials, and then compressed air convey materials to nozzle assy and add water in the nozzle, finally spraying materials to working face.
Rotor refractory gunning machine has below feature: small size, light weight, simple and flexible operation, continuous feeding etc. More rotor type refractory gunite machine detailed working information, please check the below video link:https://youtu.be/CU0zJtbW8-c

Rotor type refractory gunite machine

While pressure vessel refractory gunite machine for sale. it is mainly used for hot and cold repair work on other thermal kiln equipment such as converter, electric furnace, ladle, mixed iron furnace, ladle and iron hook. It uses compressed air to blow the refractory dry powder in the tank to the front of the spray gun, mixes it with water to form a wet state in the mixer, and then sprays it onto the lining by the spray gun. Due to the proper amount of moisture in the refractory powder, the spray effect is better.The spray material feeding amount is fixed, the operation is simple, easy to achieve automation, and the discharge amount is fixed.

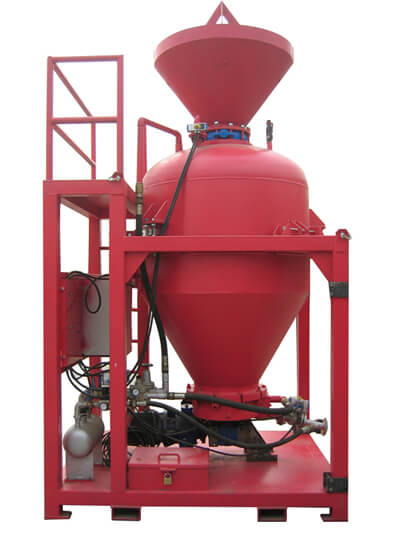

pressure vessel refractory gunite machine

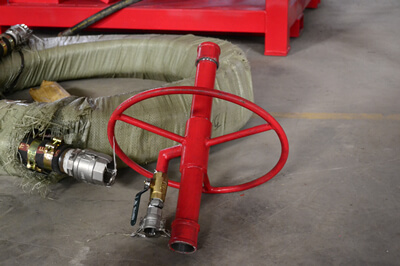

Refractory gunite pump Mixing device


Usually for electric motor drive pressure vessel refractory gunite machine, output flow depend on switch plate and motor power size. Nowadays, switch plate diameter size have 300mm, 400mm, 500mm etc. Please check the below switch plate picture for reference.

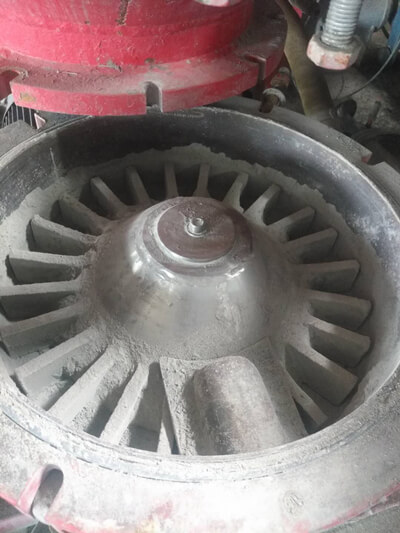

Refractory gunite pump Switch Plate


More detailed working video information, please check the below link https://youtu.be/c5Olx6DlX-g
