Filter Press Applications

I. What Is a Filter Press?

A filter press is a mechanical device that utilizes pressure and filter cloth to achieve solid-liquid separation. With its highly efficient separation performance, it has become one of the most commonly used solid-liquid separation technologies across multiple industries, including mining, chemical processing, pharmaceuticals, food and beverage, and wastewater treatment.Its operating principle is straightforward and efficient: slurry is pumped into filter chambers formed by filter plates. Under pressure, liquid permeates through the filter cloth and is discharged, while solid particles are retained to form a filter cake, completing the separation process.

Through continuous technological evolution, filter presses have advanced from early simple mechanical structures to sophisticated automated equipment integrating hydraulic power units, programmable logic controllers (PLCs), automatic plate-pulling mechanisms, and filter cloth cleaning systems. These upgrades significantly enhance separation efficiency, reduce labor dependency, and markedly improve operational safety, meeting the demands of modern industrial-scale, intelligent production.

II. Core Components of Filter Presses

The stable operation of a filter press relies on the coordinated functioning of its core components, which include the following key elements:

(1) Frame

As the supporting structure of the entire equipment, the frame must possess sufficient strength and stability to withstand the pressures generated during filtration. This ensures the installation precision and operational reliability of components such as filter plates and filter cloths.

(2) Filter PlatesFilter plates form the core structure of the filter chamber. They not only support the filter cloth but also create the space for retaining solid particles through their structural design. Their material, dimensions, and aperture design must be precisely matched to the characteristics of the slurry and the separation requirements.

(III) Piping and Valve Assembly

This assembly manages slurry distribution and filtrate discharge, including feed lines, filtrate lines, drain lines, and various control valves. It must ensure smooth fluid conveyance and tight sealing to prevent leakage that could compromise separation efficiency.

(IV) Filter Cloth

Filter cloth serves as the critical medium for solid-liquid separation, directly determining filtration precision and filter cake formation quality. Selection must be based on the size, shape, and chemical properties of solids in the slurry, choosing cloth with suitable material and pore size to achieve optimal separation performance.

The design and specifications of the filter press must strictly match the parameters of the slurry to be processed, including volume, concentration, and particle characteristics. Professional manufacturers like ChemREADY offer filter presses in various types and capacities to meet customized requirements across different scenarios.

III. Application Scenarios and Core Advantages of Filter Presses

(1) Core Application Value

The core advantage of filter presses lies in their highly efficient dewatering performance: the resulting filter cake exhibits low moisture content, significantly reducing transportation and disposal costs compared to untreated slurry. Simultaneously, the recovered clear water during separation can be directly discharged into municipal pipelines or reused through closed-loop systems, achieving water conservation.

(2) Typical Application Industries

1. Mining and Aggregate Processing: Used for slurry dewatering and tailings treatment to recover valuable minerals and reduce wastewater discharge.

2. Ready-mix Concrete Sand Washing and Recovery: Treats wastewater from concrete mixing plants to recover sand/aggregate resources and water;

3. Food and Beverage Processing: Used in juice clarification, distillers' grains dewatering, edible oil filtration, and other processes to ensure product purity;

4. Marble and Stone Cutting: Treats sand-laden wastewater generated during cutting operations, recovers usable water resources, and reduces environmental pollution.

(3) Comparative Advantages Over Sedimentation Ponds

Compared to traditional sedimentation tanks, filter presses offer significant long-term advantages: Sedimentation tanks require substantial land resources and ongoing maintenance. As solid particles accumulate, treatment efficiency gradually declines, eventually necessitating desilting or replacement. Filter presses, however, feature a compact footprint, stable separation efficiency, and minimal maintenance requirements, making them a more efficient and economical solid-liquid separation solution.

IV. Working Process of Filter Presses

The filter press operation primarily involves the following steps:

1. Feed Stage: Slurry is pumped into the filter press and evenly distributed to each filter chamber via piping components.

2. Filtration and Cake Formation Stage: Under pressure, liquid permeates through the filter cloth to form filtrate, which is discharged through designated outlets. Solid particles gradually accumulate on the filter cloth surface, forming a filter cake.

3. Cake Discharge Stage: When a filter chamber is filled with cake, the filtration cycle ends. The filter press drives the filter plates apart via mechanical or hydraulic mechanisms, causing the cake to automatically detach and be collected;

4. Automated Auxiliary Process: High-capacity filter presses are typically equipped with automatic plate-pulling mechanisms, significantly reducing cake discharge time and enhancing overall efficiency. For example, Matec-designed filter presses enable 24-hour fully automated operation, maintaining stable performance even in harsh environments such as mines and chemical plants.

V. How to Select the Right Filter Press for Your Application?

Selecting a suitable filter press requires comprehensive consideration of slurry characteristics, production scale, and automation requirements. Specific principles include:

(1) Core Selection Factors

1. Slurry Compatibility: Select corresponding filter plate materials (e.g., polypropylene, stainless steel) and filter cloth types based on particle size, concentration, and chemical properties to ensure chemical compatibility and filtration precision.

2. Production Capacity & Filter Cake Requirements: Determine the filter area and chamber volume based on production volume, while specifying the target dryness of the filter cake according to subsequent disposal needs;

3.  Automation Level Selection: Choose manual, semi-automatic, or fully automatic models based on budget and production scale. Manual models suit small-batch, intermittent production, while fully automatic models are ideal for large-scale, continuous operations, significantly reducing labor costs;

4. Pilot Testing and Manufacturer Consultation: Validate equipment performance through small-batch pilot testing while consulting specialized manufacturers for tailored sizing recommendations and technical support to ensure optimal operational efficiency.

VI. Conclusion

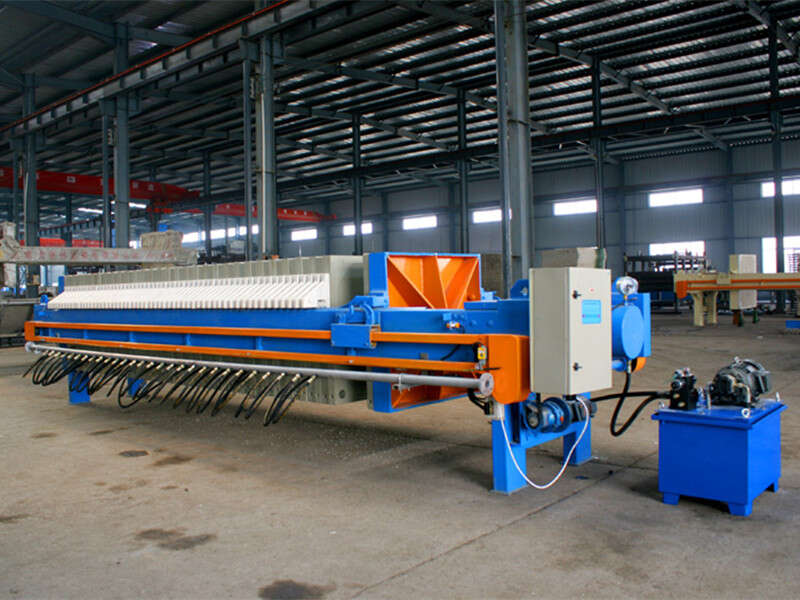

Filter presses are indispensable solid-liquid separation equipment in industrial production. From traditional plate-and-frame designs to advanced fully automated diaphragm systems, different filter press types offer unique advantages tailored to process requirements.

By thoroughly understanding filter press types, components, and automation options, enterprises can precisely select equipment best suited to their needs, achieving reliable, economical, and long-term stable operation.

For professional guidance, consult experienced filtration equipment manufacturers who can provide customized solutions tailored to industry-specific challenges.

VII. Frequently Asked Questions (FAQ)

Q1: What is the most commonly used filter press type in industry?

A1: The concave-cavity filter press is currently the most widely used type. Its efficient design and high processing capacity ensure stable and reliable performance across various industrial applications, making it the mainstream choice.

Q2: How do I determine the appropriate filter press size for my application?

A2: Filter press size requires comprehensive calculation based on slurry volume, solid concentration, desired filtration cycle, and cake dryness. Professional manufacturers can evaluate these parameters to ensure appropriate equipment selection.

Q3: Which industries benefit most from fully automatic filter presses?

A3: Large-scale production industries such as mining, wastewater treatment, and chemical processing benefit most from fully automatic filter presses. Their automated design significantly reduces labor costs, ensures consistent operation, and enhances workplace safety.

Q4: Can filter presses handle corrosive materials?

A4: Yes. Filter presses can be constructed from corrosion-resistant materials like stainless steel or polypropylene, or treated with specialized coatings, enabling safe processing of various corrosive chemicals.

Q5: What maintenance is required for different filter press types?

A5: Maintenance requirements vary by model. Basic maintenance includes filter cloth replacement, hydraulic system upkeep, and filter plate inspections. Fully automated models additionally require periodic maintenance of PLC control systems and sensors to ensure stable operation of automated functions.
