China brand peristaltic hose pump for transferring sludge

2021-12-03 17:33:08

Technical background of China brand peristaltic hose pump for transferring sludge:

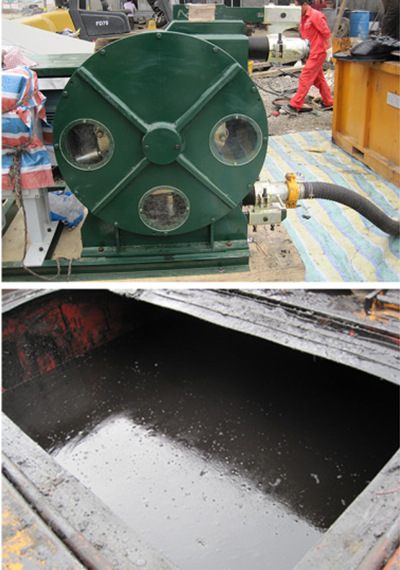

The sludge cleaning is carried out at the bottom of the large pool of the sewage treatment plant. Generally, the water is discharged first and then manually cleaned. The production efficiency is low and the workers' working environment is harsh.
At present, ordinary pumps can only suck liquids, and cannot clean up fluids containing other massive media. Moreover, the structure of the ordinary pump is complicated, and the maintenance cost after damage is high. It needs to be filled with water when it is started, and the operation is more troublesome.

peristaltic hose pump for transferring sludge


As a high quality industrial China brand peristaltic hose pump manufacturer in China, Gaodetec could customize different output capacity and working pressure peristaltic hose pump according to customers project requirement. The working pressure range is from 10bar to 26bar, and the output capacity range is from 14m3/h to 54m3/h.

peristaltic hose pump made in China

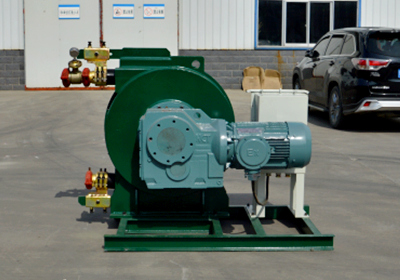

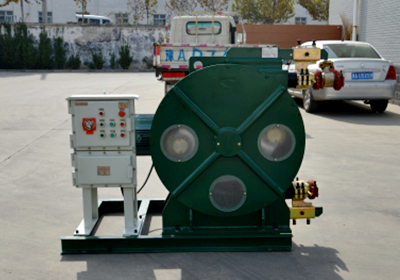

Our GH76-770B(green appearance) peristaltic hose pump is especially designed for transferring sludge. In addition, it also could be used in industry project, such as: chemical industry, paper-making, printing and dyeing, food and construction engineering, etc. Usually only the rubber hose is contact with the material, and could change different squeeze hose according to characteristics of pumping materials.
LH76-770B peristaltic hose pump max working pressure is 1.5Mpa, it’s output capacity is 18m3/h, and it’s and its power unit are respectively 18.5Kw, 380V, 50Hz. If you have any special requirements, we can customize it for you.

China peristaltic hose pump

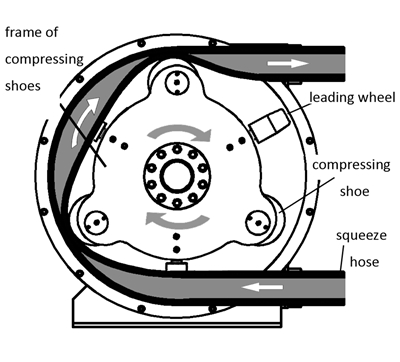

Working principle:
GH76-770B peristaltic hose pumps for transferring sludge are mainly composed of pump house, rotor, roller, idler roller, squeeze tube, hopper, and driving device. The squeezed hose in the pump house is U-shaped. When the rotor drives the drum to rotate, the hose is deformed. After the roller rotates, the deformed hose recovers by elasticity. Thus, a negative pressure is generated in the hose, the slurry is sucked in, and discharged from the outlet under the push of the roller, and finally a pressure conveying of the slurry is formed.

1. It has a non-sealed structure without any leakage and pollution;
2. The rolling technology adopted does not require any lubrication for the pressing roller;
3. Strong self-suction ability and self-cleaning ability, which can suck materials forward and backward;
4. Simple hose assembly, simple installation and maintenance, low maintenance cost and simple operation;
5. The flow can be linearly adjusted and has metering function;
6. The fluid transportation of impurities with high viscosity does not cause any blockage;
7. The service life of the hose pump is longer, with high lift and high pump pressure.

hose peristaltic pump manufacturers and supplier

If you are interested in our hose pump, we will recommend a suitable hose pump for you. Please help us to confirm the following points:
1. What is the project with our hose pump, is it for pumping concrete or others?
2. What is the pressure and output you require?
3. What is the local voltage you require? Is 380V, 50Hz OK for you?
4. What is max aggregate size in the slurry?
You can send your requirements of China brand peristaltic hose pump for transferring sludge to our email, email address: [email protected]
