Peristaltic hose pump with low flow and high pressure

2021-07-19 14:24:25

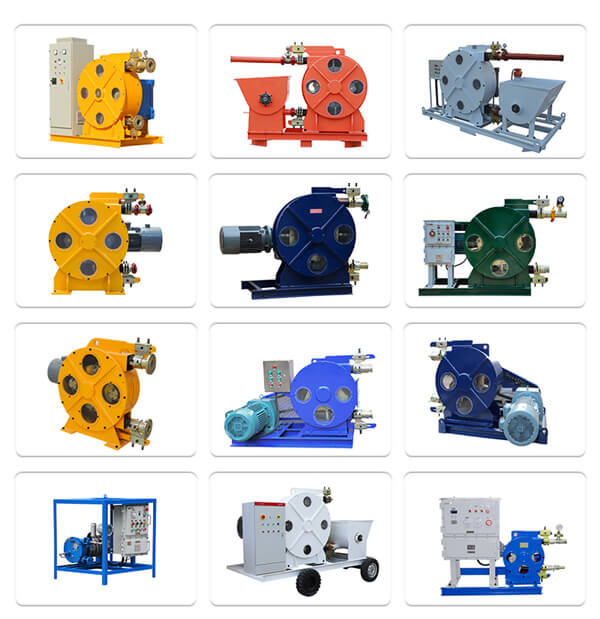

Gaode Equipment Co., Ltd. is a leading industrial high pressure peristaltic hose pump with low flow supplier and manufacturer in China, as well as a unique supplier with CE and ISO.

high pressure peristaltic hose pump manufacturer

Working pressure from 0.6~3Mpa, output from 0.01~50m3/h, NR, NBR and EPDM squeeze hoses are available options for customization.

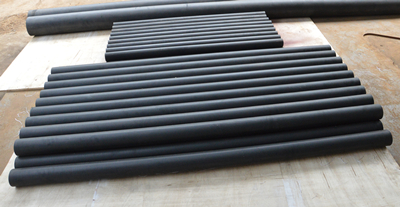

high pressure peristaltic hose

Many customers choose our industrial peristaltic hose pump with low flow and high pressure. Our industrial peristaltic hose pumps have been exported to the South Africa, UAE, USA, Canada, India, Malaysia, Pakistan, Korea, Bahrain and Nepal.

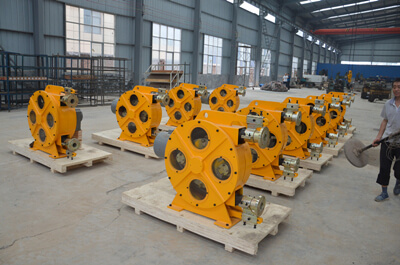

 industrial peristaltic hose pump factory

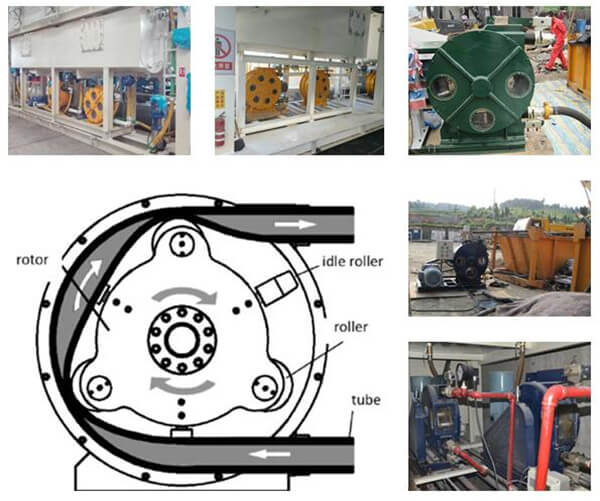

How does
industrial peristaltic hose pump work? Peristaltic hose pumps have more technical advantages than other pumps, such as:
★ Only the extruded hose is a consumable and it is the only part that comes into contact with the pumping product.
★ Self-priming.
★ Power-on, no special equipment required. Only viscous products require overflow pumping.
★ The symmetrical design of the pump makes it completely reversible through the action. It's just in the direction of rotation.
★ Only the pump hose comes into contact with the fluid. This eliminates acidity (sulphuric acid hydrochloric acid, nitric acid... or all corrosion issues associated with alkaline (sodium hydroxide or hypochlorite) products.
★ Elastomer hoses are more wear-resistant than metal surfaces. The low operating speed further reduces the wear caused by the mud.
★ Transport is carried out in the pump tube and does not stir or foam the product. This feature is combined with low operating speed for refined products or emulsions.
★ The maximum size allowed for solid particles is 1/3 of the hose aperture. Soft particles (fruit, meat, fish... The size can be the same as the diameter of the hose.
Peristaltic hose pumps with low flow and high pressure have many features than other pumps. High-pressure mud delivery pump with two-way equivalent flow; No parts of the pump will be damaged without liquid air; Up to 98% vacuum can be generated; No valves, mechanical seals and filler seals, no such leakage and repair factors; Solid, liquid or gas mixture fluids can be easily transported, so that the solids contained in the fluid reach 40% of the inner diameter of the tubular element; Can transport a variety of abrasive, corrosive, oxygen sensitive materials and all kinds of food; Hoses only need to replace parts, replacement operation is extremely simple; The delivered product does not come into contact with any parts except the hose.

Peristaltic hose pump application

Application of
industrial peristaltic hose pump with low flow and high pressure:
High Pressure Peristaltic Hose Pump for Construction - cement, coatings, spray concrete, brick and roof tiles, colourants and aggregate.
Low Flow Peristaltic Hose Pump for Chemical – corrosive acids, and bases.
High Pressure Low Flow Hose Pump for Textiles – fibres, dyes and additives.
High Pressure Low Flow Peristaltic Pump for Pint and pigments – dispersion mill feed, pigment and latex transfer.
Peristaltic Hose Pump for Water and wastewater treatment – lime, kalic, sodium hypochlorite, ferric chloride and sludges.
Hose Pump for Printing and packaging – varnishes, inks, coatings and adhesives.
Peristaltic Pump for Mining and mineral separation – tailing slurries, sludges and reagents.
High Pressure Peristaltic Hose Pump for Ceramics and glass – fine china.
Low Flow Peristaltic Hose Pump for Breweries – yeast, diatomaceous earth, Flocculants, stabilizers,filter press feed.
High Pressure Low Flow Peristaltic Hose Pump for Food and beverage – CIP applications, Wine, brewery, dairy, bakery, flavourings and additives.
Industrial Peristaltic Hose Pump for OEM – versions available for system Suppliers.

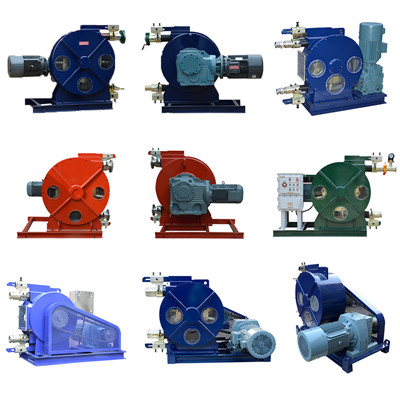

industrial peristaltic hose pump

If you also want one customize industrial high pressure peristaltic hose pump, please help us confirm the following points:
1. What’s material will you pumping or grouting or pouring or spraying?
2. What’s the max. aggregate size of the material?
3. What’s the output do you demands?
4. What’s the conveying distance do you want?
5. Regards the voltage, 3 phase, 380v, 50HZ is ok for you? If not, please tell us what’s the voltage in your local.

Email us for more information and factory price.
Open email, send to info@gaodetec.com for suitable type low high pressure flow peristaltic hose pump and factory price.
