Foam concrete machine for roof insulation

2021-02-12 18:04:09

Foam concrete machine for roof insulation

A foaming machine, also called a foam generator, is a foaming device that makes the foaming agent reach a certain concentration of aqueous solution. The foaming agent itself cannot automatically become foam, it must pass the mechanical action of the foaming machine to become foam.

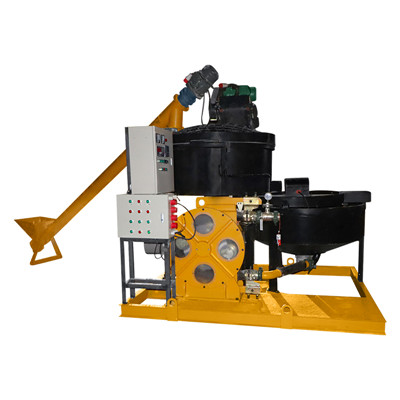

Due to the development of foam concrete machine for roof insulation materials, foam concrete machine for roof insulation materials are very popular. Our foam concrete machine consists of 4 main parts: screw conveyor, mixer, foam generator and foam concrete pump, with centralized control panel and wheels, which is very easy to operate and move. Foamed concrete machine has been used for roof insulation for a long time.

foam concrete machine

1. The roof insulation foam concrete machine adopts an advanced double-cylinder hydraulic thruster, which overcomes the shortcomings of internal leakage of the hydraulic cylinder: the outlet pressure is high, and the high pressure can still be maintained in high-rise buildings. The delivery volume is stable.

2. The use of advanced electromagnetic overflow technology makes the motor in a no-voltage and no-load state when starting, which overcomes the problem that the construction site cannot be started due to low voltage.

3. After the transportation is stopped, it will automatically be in no pressure and no-load state: it can greatly save electricity and can effectively control the heating of hydraulic oil, which is especially suitable for construction in the high temperature season in summer.

4. The components are automatically proportioned, the foaming efficiency is high, the foaming quality is good, and it can be continuously adjusted in a wide range to meet various construction needs.

5. Long cylinder, long stroke, stable conveying and high efficiency.

The roof insulation foam concrete machine mixes cement and water in a mixing hopper in a certain proportion to form cement slurry, and sends it into the pipeline through a hydraulic conveying cylinder. The foaming agent is mixed with water in a certain proportion, and then mixed with compressed air through a high-pressure pump. High-density dense foam is formed in the pipeline, and then mixed with the cement slurry in the pipeline to form foamed cement. In the bubble forming system, the blowing agent solution is the dispersion medium, the gas is the dispersed phase, and the gas is dispersed in the liquid to form bubbles, and then a large number of bubbles form the foam. In addition to the important factor of foaming agent performance, the introduction of gas into the foaming agent solution is another important factor. The introduction of gas into the liquid must be completed by the foaming machine, that is, the foaming machine adopts a certain method to introduce the gas into the liquid. Cement foaming machine is a device that can foam from a certain concentration of foaming agent aqueous solution. The foaming agent itself cannot automatically become foam, it must pass the mechanical action of the foaming machine to become foam.

We not only have a foam concrete machine for roof insulation, but also a supporting vegetable protein foaming agent. It is necessary to produce foam concrete. If you are interested in our foam concrete machine and supporting foaming agent for roof insulation Interest, welcome to consult!
