Diaphragm filter press machine for ceramic clay slurry

2022-02-19 18:59:54

Diaphragm filter press can also called membrane filter press, this type filter press is one kind filter press that using the membrane filter plates. During the diaphragm filter press operation process, in the end of feeding the material, high pressure liquid or gas (0.8-2.0mpa) medium can enter into membrane plate, then the whole membrane will expand to compress filter cake, and filter cake will be further dewatered, which is usually called membrane squeeze.

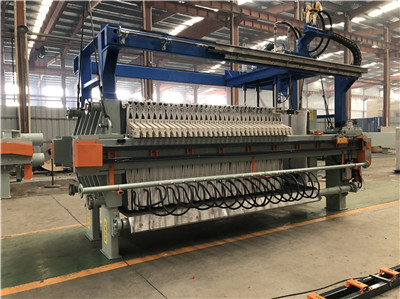

diaphragm filter press machine

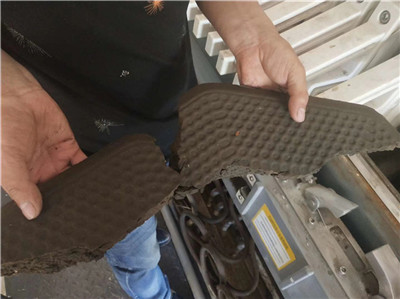

In this way, cake from diaphragm filter press for ceramic clay slurry can be secondly squeezed under max. 2.0Mpa by water or gas to realize the lowest cake residual moisture. In some wastewater treatment industries, the final cake can be used for landfill or burning directly.

diaphragm filter press for municipal wastewater


For the diaphragm filter press, it has the below features:
1. The use of low pressure filtration and high pressure can greatly shorten the entire filtration cycle.
2. The material is TPE elastomer, the feeding pressure can reach 2.0MPa, and the pressing pressure can reach 2.0MPa.
3. The moisture content is greatly reduced, saving subsequent costs.
4. Squeeze can choose air, inert gas, water, oil and other fluid media to meet the needs of different industries.
5. The structure is made of high-quality carbon steel Q345b and processed with sandblasting to remove rust and getting higher intensity and corrosion resistance.

membrane filter press for sale


This diaphragm filter press is widely used in sewage treatment, various concentrates and tailings, metallurgy, chemical, pharmaceutical, food, ceramics and other industries and fields. Especially for viscous materials, it has a unique filtering effect, such as municipal wastewater, printing and dyeing wastewater, fine chemicals, etc. The diaphragm filter press for ceramic clay slurry has a very good performance.


filter press machine for ceramic clay slurry


Gaode Equipment has focused on manufacturing and selling filter press for more than 13 years, can provide customized service for you, if you have any needs for filter press or filter press spare parts, please contact us freely, our experienced sales team and engineer team will provide a good solution for your project. You can send email to us via info@gaodetec.com.
