Colloidal grout mixer for bentonite

2022-02-21


We are a colloidal grout mixer for bentonite supplier. Colloidal grout mixer is a necessary machine during the grouting projects. Our mixer volume produced now including 250L, 300L, 400L, 500L, 750L, 850L, and 1500L, etc.

Colloidal bentonite grout mixer is used for cement and water mixing. And usually water cement ratio is more than 0.5:1. Of course, if your grouting liquid is very thick, we could customize grout mixer machine according to your projects request.

Application of colloidal bentonite grout mixer:

Colloidal bentonite grout mixer is used in mixing water and cement, non-shrink cement, bentonite and other additives. Colloidal bentonite grout mixer also applied in tunnels, mining, dam foundations, soil compaction, soil & rock grouting, waterproofing, soil anchors, rock bolts, and post tension.

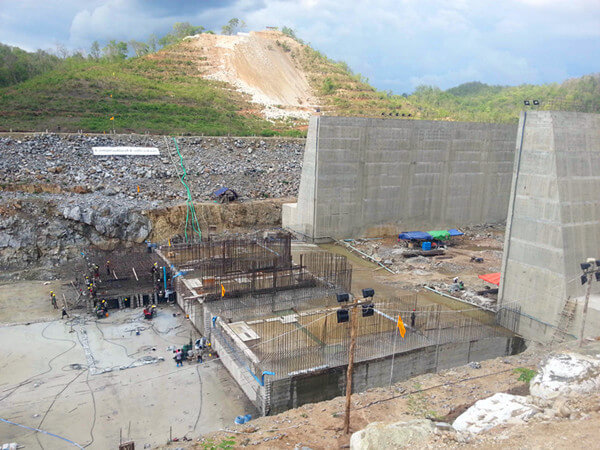

grout mxier dam site grouting

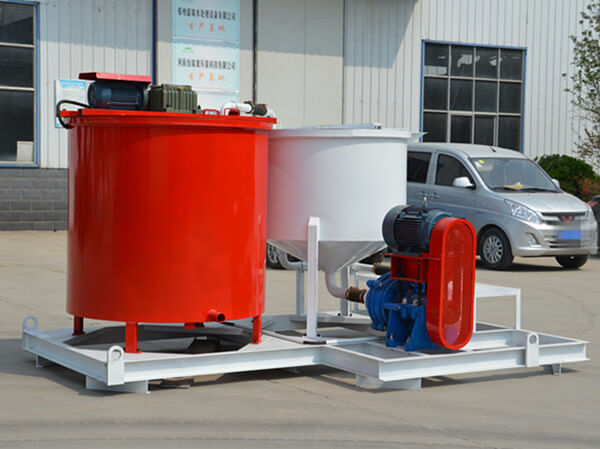

grout mixer for bentonite

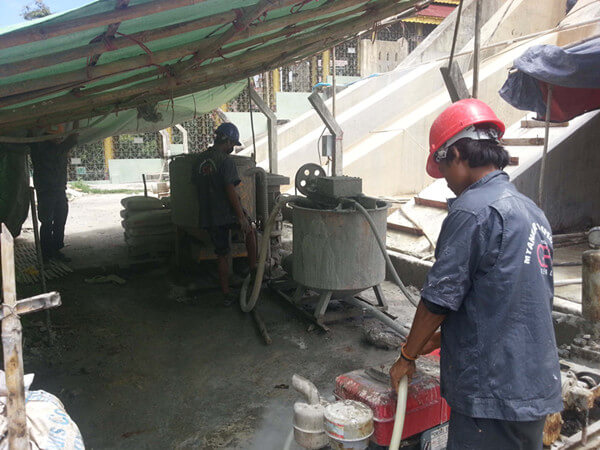

bentonite cement grout mixer

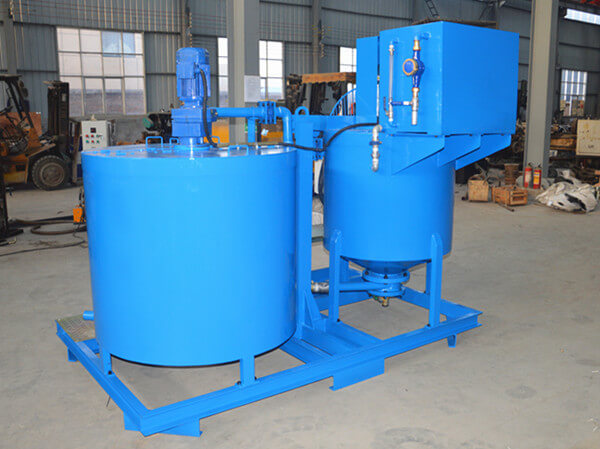

colloidal bentonite grout mixer




Colloidal grout mixer for bentonite equipped with high speed impeller pump in the bottom. And centrifugal with high shear and high speed which disperses the cement to water, and make cement, bentonite and water mixtures completely, and total process only 3 minutes. While paddle grout mixer needs 4-5mixutes to mixing one batch cement paste.

Colloidal grout mixer for bentonite has the following advantages:

1. One person operates directly saving labor costs.

2. Our colloidal grout mixer for bentonite is more productive than ordinary paddle grouting machines. The blending speed is extremely fast, taking only 3 minutes for a batch.

3. It is simple that grout transfer from mixer to agitator, it could saving time.

4. High efficiency colloidal grout mixer is easy transported.

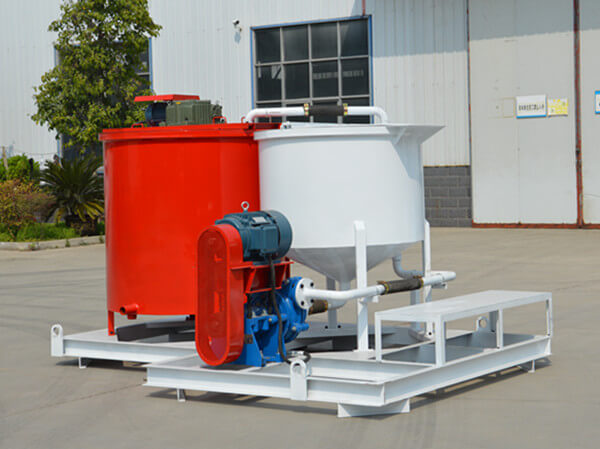

cement bentonit grout mixer

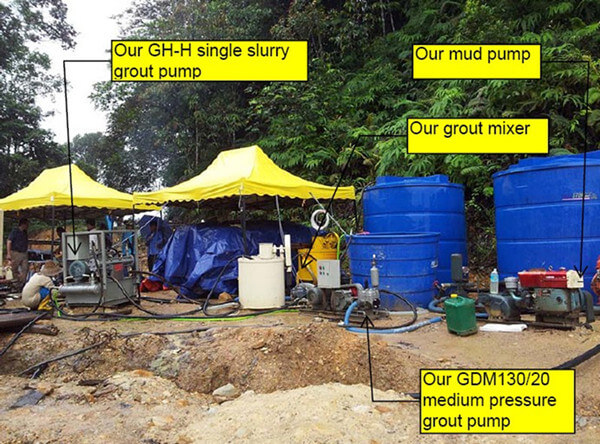

cement grout mixer for bentonite

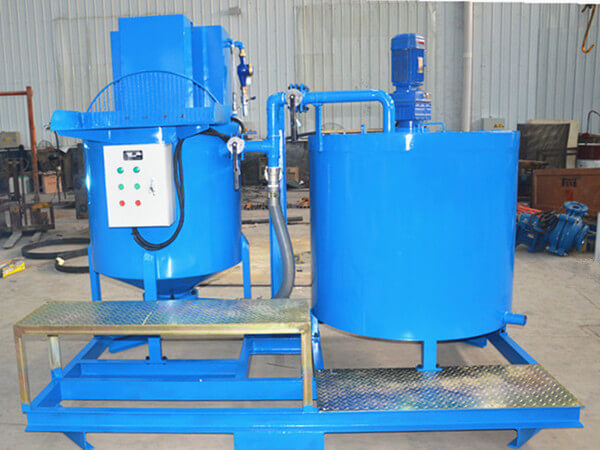

grout mixer for mixing bentonite



GMA750-1500E colloidal grout mixer consists of a steel sheet cylindrical mixer tank heavy-duty slurry pump and agitator tank, set-up on a strong base frame.

GMA750-1500E colloidal grout mixer weighs up to 1800Kg, operating platform dimension is 2.85*2.15*1.97m. Its output is range from 11-14m3/h, its mixer volume is 750L, and its agitator volume is 1500L.

GMA500-1000E colloidal bentonite grout mixer can be mixed in a 500 liters mixer machine, then the mixed slurry can be stored in a 1000 liters agitator. Thus the mixing work can continuously be done.

Its water-cement ratio is greater than 0.5, its mixer power is 7.5KW, mixer’s pump pressure is more than 0.2Mpa. Mixer’s water tank is 250L.

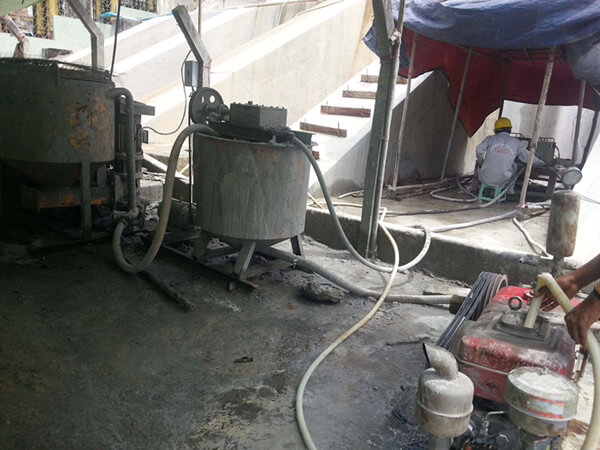

bentonite mixer


bentonite cement mixer



Beside the colloidal bentonite grout mixer, we also produce others grouting mixing and pumping equipment. Such as: grout mixer and agitator (electric motor or diesel engine for option), grout pump (hand operate, electric motor, electric hydraulic, diesel engine motor, diesel hydraulic, and air powered), and grout plant.

Contact us for colloidal bentonite grout mixer details, email address: info@gaodetec.com

We have many colloidal bentonite grout mixer, and we could customize as per your requirement. Please tell us your requirements and we will provide you with the corresponding product parameters and quotations.

1. Mixer only or mixer with agitator do you need?

2. What’s the volume do you need?

3. What is the composition of grouting liquid? Just water or cement? Any sand in?

4. How about the water cement ratio? More than 0.45: 1?
