Shotcrete pump for spray refractory materials

2020-12-01 14:25:28

Shotcrete pump for spray refractory materials

The shotcrete pump for spray refractory materials uses compressed air to spray a certain proportion of refractory material at high speed to form a fire resistant layer on the sprayed brick surface. The spray refractory materials machine is widely used due to its fast spray build speed, high efficiency and good engineering quality, and is mainly suitable for the following applications: Heat gun of fireproof layer of industrial furnace. The shotcrete machine is mainly suitable for spraying and supporting the construction of concrete such as tunnels, culverts, subways, hydropower projects, underground projects, mine roads, highway slope protection, etc.

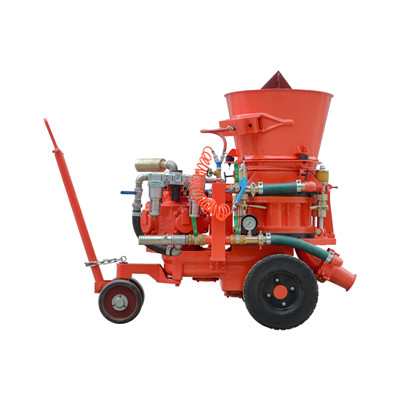

shotcrete pump for spray refractory materials


The working process of the refractory shotcrete machine is as follows: the refractory materials spraying machine is mainly composed of parts such as hopper, mixing equipment, discharge elbow, gas system, rotor, reducer, etc. The motor drives the rotor and rotates the reducer. The mixture is loaded onto the rotor and pumped at the discharge elbow by the air pipes of the air circuit system, passing through the transport pipes, spray nozzles and auxiliary air inlet tubes of the air circuit system. Then the refractory materials spraying machine can shotcrete the materials on the surface.

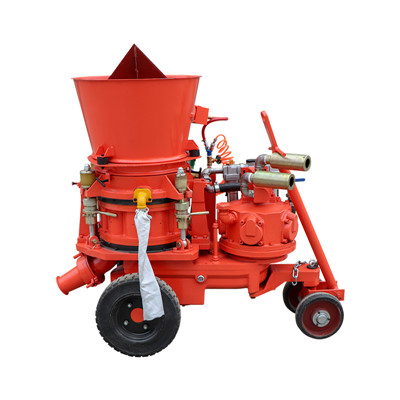

spray refractory materials machine

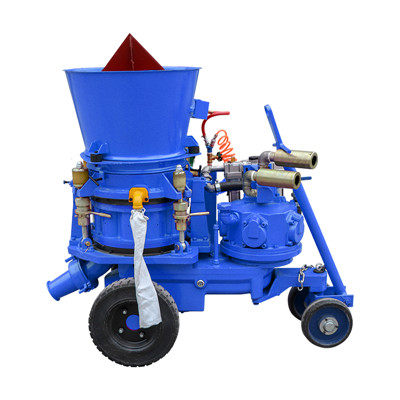

shotcrete machine for spray refractory


1. The refractory materials spraying machine has the functions of mixing, conveying and spraying.
2. Refractory shotcrete machine has good injection quality and fast construction speed, which greatly saves labor.
3. Refractory shotcrete machines are widely used in metallurgy, industrial furnaces and steel mills.
4. Refractory shotcrete machine is a shaped product with excellent quality and durability. And related vulnerable parts, rotating plate, coupling plate, spray gun and other accessories are ready.

The GZ-5AR shotcrete machine for spray refractory materials machine is a full-pneumatic direct cavity rotor type refractory gunning machine with air motor. The air type 5m3/h refractory materials spraying machine is a gunning machine specially designed for fire-resistant gunning concrete and concrete gunning concrete. GZ-5AR shotcrete machine for spray refractory is a powerful, compact and reliable refractory gunning machine. It can achieve low dust and high-performance gunning flow in the nozzle. We also provide motor-driven sandblasting machines for the steel heating furnace industry. The output power of the slurry machine is 1-5m3/h, and the maximum conveying distance is 100 meters. The maximum diameter of the particles that can be sprayed is 15 mm, which can meet our usual spraying needs. We can also make improvements according to your requirements and can provide you with customized products.

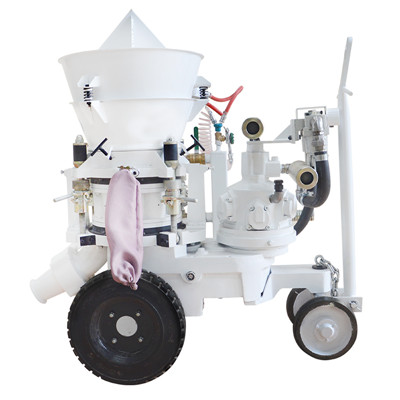

refractory materials spraying machine


Gaodetec has produced the refractory shotcrete machine, refractory pan mixer machine and other grouting equipment for many years. Our s shotcrete pump for spray refractory materials has pneumatic and electric drive modes for you to choose. The pneumatic refractory shotcreting machine is safer, more environmentally friendly, and suitable for applications in explosion-proof areas. The output of the shotcrete machine has 3 cubic meters per hour and 5 cubic meters per hour for you to choose, we can also customize according to your needs.
