Shotcrete machine for both dry and wet shotcreting

2020-12-14 18:19:23

Shotcrete machine for both dry and wet shotcreting
Gaodetec shotcrete machine is mainly used for both dry mix shotcreting and wet mix shotcreting.

dry and wet shotcreting machine


Gaodetec equipment is a leading shotcrete machine manufacturer and supplier from China, as well as a unique supplier with ISO 9001:2008, SGS and CE certificate in this shotcrete machines.

Gaodetec equipment has obvious advantages such as advanced technology, perfect structure, stable performance, convenient operation and long service life. It is widely used for mines, tunnels, culverts, subways, hydropower projects, underground projects and so on.

For wet shotcrete machine, the process is different from that of dry-mixing shotcrete concrete machines. Dry shotcrete machines are used to spray dry materials, sand, cement, stone, and add water to nozzles without water. Water and dry matter are even mixed in the nozzle and sprayed to the working surface. Wet shotcreting machines are used to spray pre-wet concrete and to add promoters to nozzles instead of water. Usually dry-spray concrete machines are used for slope protection, swimming pools, bridge maintenance, etc. for external engineering. Wet-spray concrete machines are used in indoor projects such as tunnels, mines, subways, etc. Compared with the dry shotcreting process, the wet shotcreting process is more intense and the painting effect is better for more important projects. For more detailed process information, please check the following images for reference.

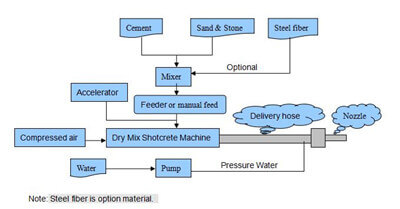

Shotcrete machine for dry shotcreting process:

dry mix shotcrete machine process

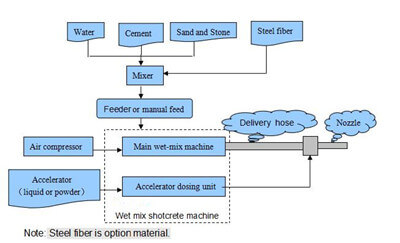

Shotcrete machine for wet shotcreting process:

wet mix shotcrete machine process

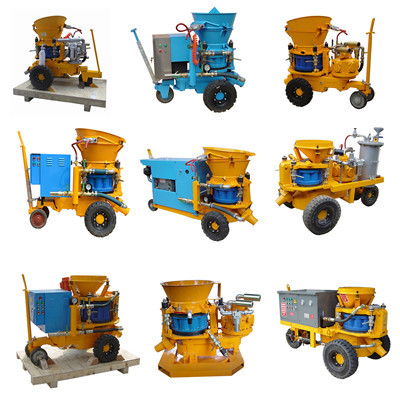

GSZ3000 shotcrete machine is a universal concrete spraying machine for the processing of wet or dry mix shotcreting. This machine is suitable either for manual spraying or by means of a robotic arm.

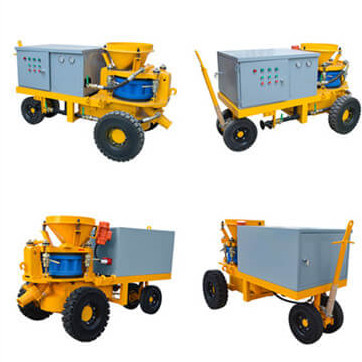

Electric shotcrete machine for both dry and wet shotcreting

electric shotcrete machine for both dry and wet shotcreting




Advantage of shotcrete machine for both dry and wet shotcreting:
1. The thin flow wet-mix concrete shotcrete;
2. Shotcrete material flow is even and continuous;
3. Both dry-mix and wet-mix concrete spraying;
4. With very low equipment cost, to get wet-mix concrete shotcrete;
5. Within the 30 meters conveying distance, it is a perfect wet-mix concrete shotcrete machine;

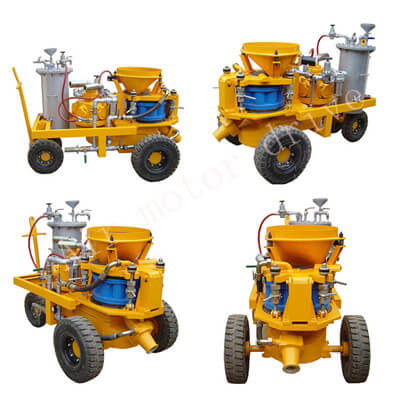

Air motor drive shotcrete machine for both dry and wet shotcreting

air motor drive shotcrete machine for both dry and wet shotcreting

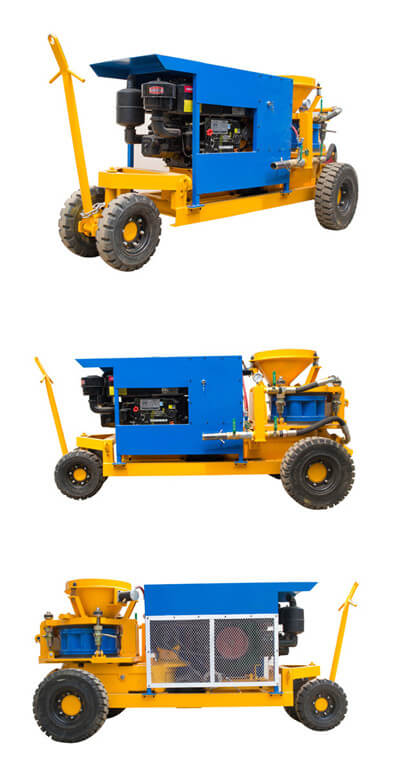

Diesel engine shotcrete machine for both dry and wet shotcreting

diesel engine shotcrete machine for both dry and wet shotcreting


So if you need a both dry and wet shotcreting machines, please tell us your demands on the shotcrete machine such as:

1. What’s the project will use the machine do, for slope protect, or other? Need dry-mix shotcrete machine or wet-mix shotcrete machine?
2. What’s the output do you need, 3m3/h, 5m3/h or 9m3/h?
3. What’s the max. particle size of the material, less than 10mm, 15mm or 20mm?
4. About the engine, do you need air motor, electric motor or diesel engine, if like the electric motor, voltage 3 phase, 380V, 50HZ is ok for you?
Once confirm the answers of above question, suitable type dry mix or wet mix shotcrete machine and factory price to your local port both will be at first time.
