Pan refractory mixer

2023-09-28 15:25:48

Pan refractory mixer
The pan refractory mixer for sale is a relatively advanced mixing machine at home and abroad. The pan refractory mixer has a high degree of automation, excellent mixing quality, high efficiency, low energy consumption, low noise, convenient operation, fast discharge speed, long service life of liners and blades, and easy maintenance etc. The pan refractory mixer for sale is suitable for mixing plastics, dry lightweight aggregate concrete, mortar.

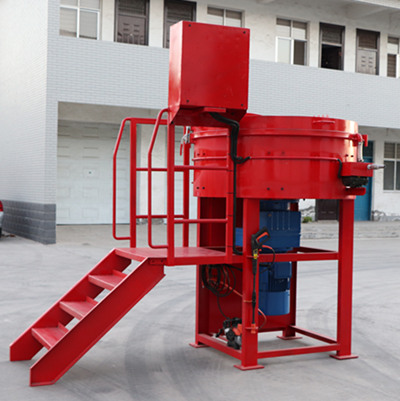

800kg Pan refractory mixer


The pan refractory mixer for sale is composed of a supply mechanism, a mixing mechanism, a discharge mechanism, a water supply system and an electrical control system. The two horizontal mixing shafts of the mechanical mixing barrel are stirred at the same speed by rotating in opposite directions. The pneumatic piston push rod is used to automatically eject the motor during the unloading process, and can mix aggregate, gravel, crushed stone, dry concrete, plastic concrete, lightweight aggregate concrete and various mortars.


Pan refractory mixer


Advantages of pan refractory mixer:
(1) The quality of the pan refractory mixer is good, and the strong countercurrent mixing treatment operation can meet the high impact of the refractory mixing form, and the mixing is stable.
(2) The mixing of refractory materials consumes low energy, low working noise, and high structural technology content, which can only be controlled and has strong safety.
(3) The flexibility of processing raw materials can save raw materials. The material characteristics and processing characteristics of different raw materials are different, but the mixing equipment can handle it calmly.
(4) The refractory products produced are of high quality and beautiful appearance, which can improve the efficiency and benefit of production.

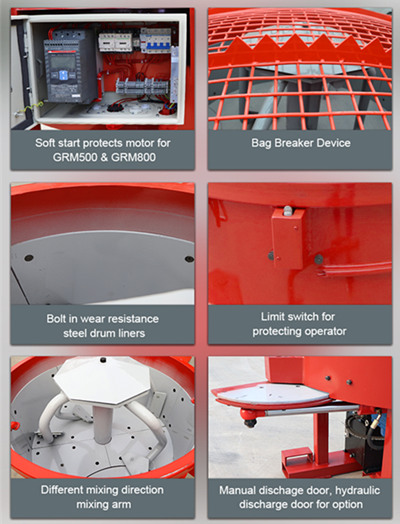

Pan refractory mixer detailed


The pan refractory mixer for sale working principle: by installing the mixing tool and scraper on a specially designed drive system, mixing can be carried out without hiding corners on the mixing plate.

You need to follow the instructions during the operation of the pan refractory mixer for sale:
1. Don't carry too much.
2. The wear-resistant parts manufactured by us must be used in conjunction to prevent damage to the machine.
3. For each operation, we should clean the sink and tools, check the tightness of the nut, and open and close the drain door many times to ensure smooth work. And the blades and tiles need to be checked weekly and replaced if necessary.
4. After the pan refractory mixer is stopped in an emergency, we should pour the materials into the tank to ensure that there is no material in the mixer.
5. Stay away from the unloading area to avoid injury to workers.

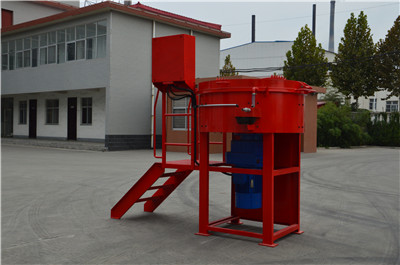

Pan refractory mixer for sale

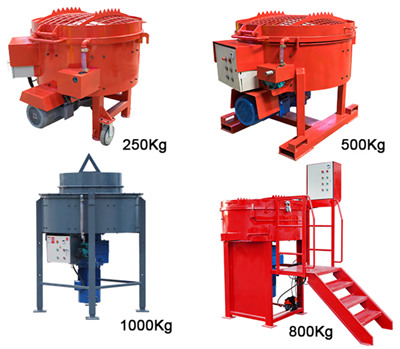

As the pan refractory mixer supplier, we can provide the all kinds of capacity pan refractory mixer for your choosing, such as the 100Kg per batch, 250Kg per batch, 300Kg per batch, 500Kg per batch, 800Kg per batch, 1000Kg per batch. Also we can provide the customized service for you. This is our email address: info@gaodetec.com, and we can send the price and more details for you.
