Mobile grout cement mixer in Thailand

2021-02-17 20:11:09

Thailand mobile cement grout mixer

The mobile cement grout mixer is used to mix cement and water evenly, and then pour it into the grouting pump to effectively complete the grouting work. During work, a certain proportion of water and cement are added to the slurry tank, and then under the action of the slurry pump, the materials are uniformly mixed in a high-speed continuous flow. The mixed cement slurry is discharged into the storage tank through a valve, which has two paddles to prevent precipitation and pollution.

Thailand mobile cement grout mixer is used in combination with a grouting pump. After mixing cement and water, it can be grouted under pressure in mining, tunnels, culverts, subways, hydropower projects, underground projects, etc. High efficiency, large volume, suitable for various grouting projects. It can be equipped with a grouting pump for tunnel excavation and maintenance, mine engineering, dam construction, foundation treatment of large bridges and high-rise buildings, and pressure grouting of various underground buildings. The mixing efficiency is high, the motor directly drives the impeller to obtain high-speed liquid flow, and the mixing can be completed in about 1-2 minutes; high reliability, vertical or horizontal motor, low failure rate and good sealing; the control valve adopts ordinary rubber tube as easy Damaged parts, easy to use on the construction site.

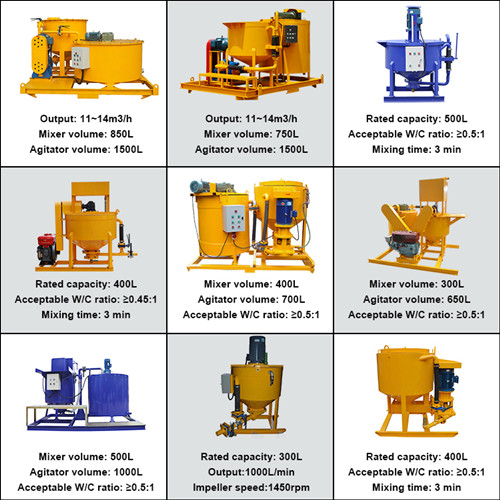

Flexible and reliable mobile cement grout mixer in Thailand, fast and convenient to move. The complete grouting agitator and agitator system consists of a grouting platform, which includes: agitator and agitator. The platform design is simple, flexible and compact. Gaode Equipment Co., Ltd. has a wide range of services. Such as 100L, 200L, 300L, 500L, 800L, 1500L, etc. Customers can choose the right product according to your project.

Mobile grout cement mixer in Thailand

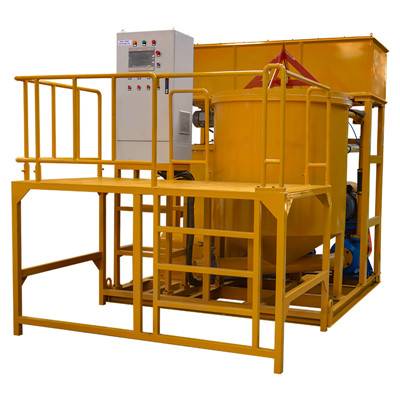

GMA1500-1200E mobile cement grout mixer is a combination of steel plate cylindrical mixer tank, heavy mud pump and agitator tank, installed on a solid chassis. This product is equipped with an automatic control system that can automatically control the operation of the equipment. The slurry is mixed by a high-speed vortex generated by a special pump. The pump sucks the material from the bottom of the mixer tank and sends it back to the same tank tangentially to achieve the highest efficiency. In this way, a uniform colloid and a high-quality mixture can be obtained in a short time.

grout mixer

After mixing, the above mixture is pumped into a stirring tank with a slow stirring blade through the same pump as described above. When all the mixture in the mixing tank has been pumped out, press the discharge complete button to start the next pulping cycle.
For more information about Thai cement grouting mixer, please email us: [email protected].
