Inner squeeze tubes for peristaltic grout pump

2022-04-22 11:17:55

Gaodetec equipment pays great attention to providing finished hose products with very high service life and excellent performance.


Inner squeeze tubes for peristaltic grout pump are divided into NATURAL RUBBER hoses, NITRILE RUBBER hoses, EPDM hoses, Gaodetec high-pressure hoses and food grade hoses according to different raw materials. NR hose and EPDM hose are usually used to transport liquid acid and alcohol because of their excellent wear resistance. NBR hose is mainly used to transport oil, lubricating oil, alkaline liquid and detergent; The inner layer of Gaodetec high-pressure hoses is reinforced layer, and the maximum acceptable pressure is 3Mpa. Food grade hoses are used for sanitary work, such as pumping beer, ice cream and drugs.

inner squeeze tubes for peristaltic grout pump


Gaodetec high-pressure inner squeeze tubes for peristaltic hose pump introduction:

NATURAL RUBBER (NR)
Excellent wear resistance. Generally resistant to dilute acids and alcohols.
maximum. Fluid temperature 90 ° C (176 ° f)
minute. Fluid temperature minus 15 ° C (minus 4 ° f)

NITRILE RUBBER (NBR)
Resistant to oil, grease, alkali and detergent.
maximum. Fluid temperature 80 ° C (176 ° f)
minute. Fluid temperature minus 10 ° C (minus 14 ° f)

EPDM
Excellent wear resistance.
Generally resistant to dilute acids and alcohols.
maximum. Fluid temperature 90 ° C (176 ° f)
minute. Fluid temperature minus 15 ° C (minus 4 ° f)

Gaodetec high-pressure hoses
Inner squeeze tubes for hose pump has excellent wear resistance and high working pressure (3Mpa), with steel wire reinforcement layer.
maximum. Fluid temperature 90 ° C (176 ° f)
minute. Fluid temperature minus 15 ° C (minus 4 ° f)
Importance of hose quality:
Provide good strength for the roller
Extend the service life of the hose
5 m excellent suction
High pressure of 3 MPa
High accuracy (± 1%)
Non interference conveying system
Suitable for high viscosity slurry

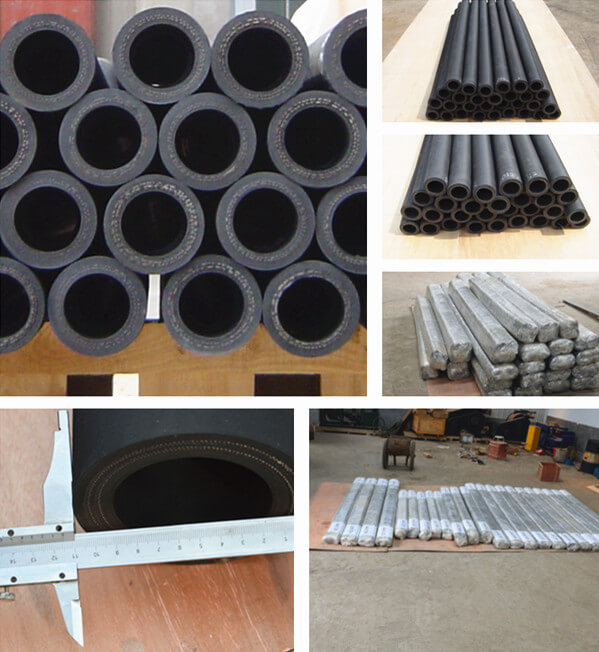

Delivery of ID50 hose to Korean customers

inner squeeze tubes for peristaltic hose pump


For hose pump, grout pump, peristaltic pump, the most easily worn part is the hose, so high-quality accuracy is required. Gaode equipment uses the highest quality composite rubber material on the market, multi-layer braided reinforced nylon and a manufacturing process to ensure accurate and constant dimensional tolerance at each point of the whole length of the hose. If you want to buy NATURAL RUBBER hoses, NITRILE RUBBER hoses, EPDM hoses or Gaodetec high-pressure hoses, you contact us freely. Email address: [email protected]
