High abrasion resistance peristaltic hose pump
2022-01-22 16:47:35
High abrasion resistance hose pump is a type of peristaltic pump. Peristaltic pumps belong to the category of rotary positive displacement pumps, their working principle is the same as that of the digestive tract, and they all transport gas, solid and liquid media in a peristaltic manner.
High abrasion resistance hose pumps with small flow and low pressure can be used in sanitary fields and laboratory measurement, and high abrasion resistance hose pumps with large flow and high pressure are mostly used in industrial occasions. The high abrasion resistance peristaltic pump has the ability to convey strong abrasive media.
It has neither valve nor seal. The only part is the inner cavity of the rubber hose. The rotor of the compression hose is completely independent of the medium.
Application of high abrasion resistance peristaltic hose pump:

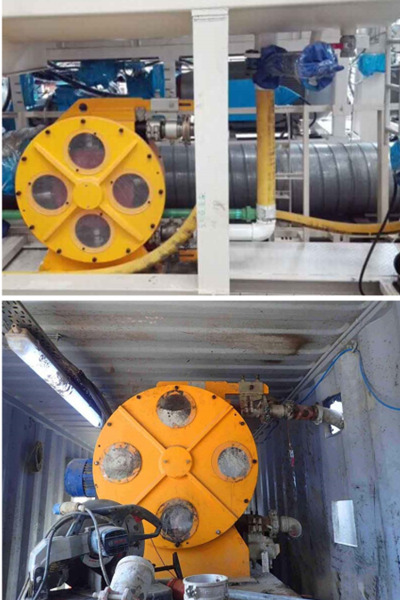

Our high abrasion resistance peristaltic hose pump has a very wide range of uses. It could be widely used in many projects, such as: architecture, underground construction, petrochemical industry, metallurgy, food industry, ceramic, mining, water treatment, hydrocarbon sludge pumping etc.

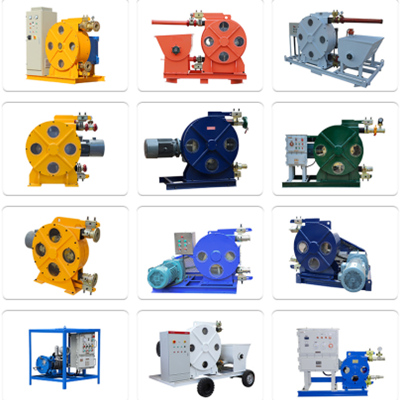

We have high abrasion resistance peristaltic hose pump with different working pressure and output. The working pressure is from 10bar to 26bar, and the output is from 14m3/h to 54m3/h. If customers have any demands, we could provide customized service.
Preparation before starting the high abrasion resistance peristaltic pump:
In order to ensure the safe operation of the high abrasion resistance peristaltic pump, before the hose pump is started, a comprehensive inspection of the entire unit should be carried out, and problems should be found and dealt with in time;
1. Check whether the assembly of each component meets the requirements of the manual;
2. Check whether the motor and pump body are well fixed on the base, and whether the screws and nuts are loose and fall off;
3. Check whether the lubricating oil of each bearing is sufficient and whether the lubricating oil has deteriorated;
4. Observe whether the speed and sound are normal. If the high abrasion resistance hose pump is equipped with other power machines, it should be operated in strict accordance with the requirements of the instruction manual; when the hose pump is idling, the working pressure should not exceed the rated working pressure of the hose pump.

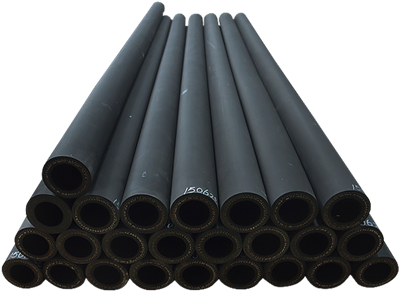

How to replace the hose:
1. Remove the front end cover and remove the shaft retaining ring on the pressing roller to remove the roller;
2. The inlet and outlet nozzles can be taken out by loosening the stiffening hoop, and the U-shaped hose can be taken out from the pump chamber;
3. The hose installation and replacement can be reversed.
If you are interested in our peristaltic pump, we will recommend a suitable peristaltic pump for you. Please help us to confirm the following points:
1. What is the project with our peristaltic pumps, is it for pumping concrete or others?
2. What pressure and output do you need?
3. What is the local voltage you require? Is 380V, 50Hz OK for you?
4. What is max aggregate size in the slurry?
