Hose pump for pumping foam concrete for heat insulation

Hose pump for pumping foam concrete is very popular for customers’ heat insulation. Compared with other type pump, hose pump have much outstanding features, such as: no seals, no valve, dry -running without damage, reversible, only squeeze hose to replace, easy to operate and maintain.

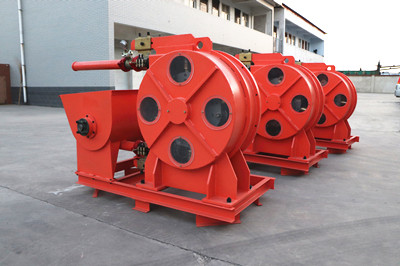

Hose pump for pumping foam concrete

Pumping foam concrete for heat insulation will not damage foam concrete feature. Industrial hose pump consists mainly of pump house, rotor, roller, idle roller, squeeze hose and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries.

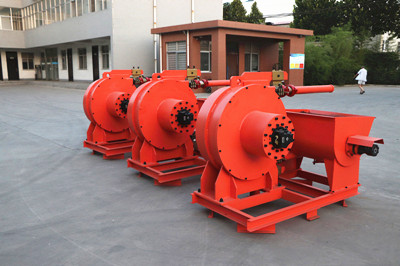

Pumping foam concrete for heat insulation

Foam concrete pump with hydraulic motor is very suitable for working in remote site. Don’t need electric power supply, only need hydraulic pump to provide hydraulic oil. GH76 hose pump with hopper could work together with concrete truck, very convenient for pumping foam concrete.
