Permeation compaction grout monitor system grouting recorder

2022-09-17 15:24:31

Permeation compaction grouting recorder, namely grouting automatic recorder. Cement grouting technology is an important means of building foundation reinforcement and anti-seepage treatment, but because it is a hidden project, its construction quality and effect cannot be evaluated intuitively. data to evaluate. In the past, the measurement and recording of these parameters were all done manually, and the accuracy of the data would be affected by human factors, thus affecting the analysis of grouting results.

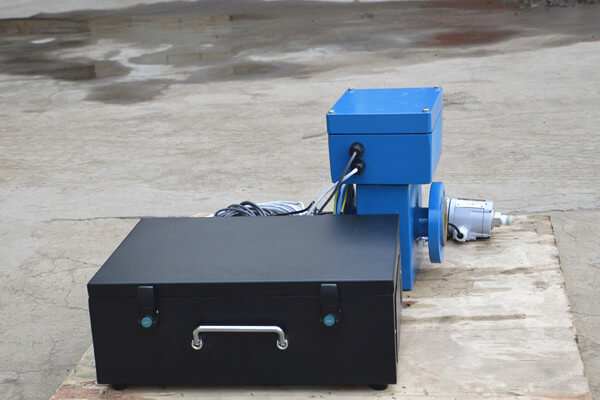

permeation compaction grouting recorder


This grout monitor system integrates the functions of microcomputer technology processing, parameter display, setting and printing. It can record the flow, pressure, drilling speed, depth and time during the grouting process of various pile types. It is simple and intuitive without the need for buttons and mice.

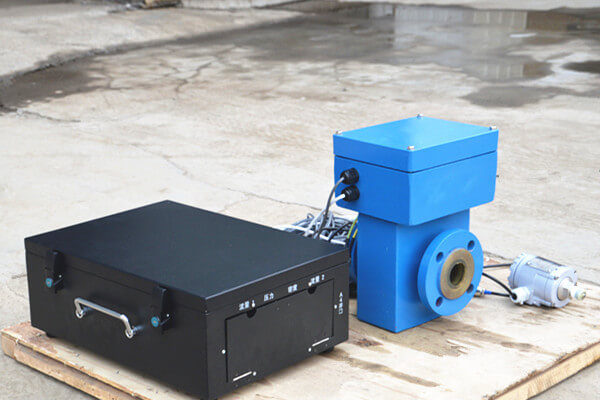

permeation compaction grout monitor system


This instrument provides two models of one for one and one for two. It is suitable for SMW construction method, high pressure rotary injection, multi-head small diameter deep mixing pile, powder injection pile, road maintenance grouting, simple grouting and other series of process grouting. This intelligent automatic grouting recorder integrates various piling processes and simple grouting processes for soft foundation treatment. Small size, easy operation and affordable price.

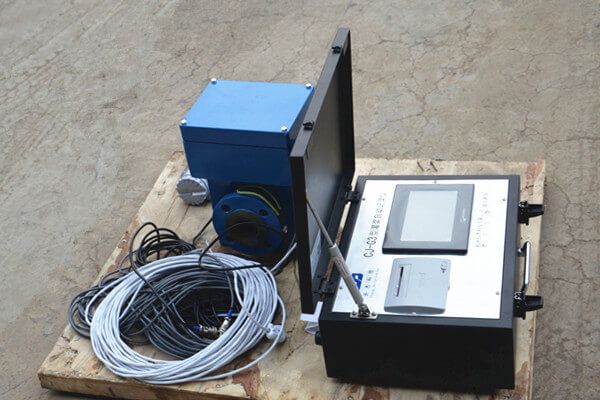

Grouting recorder


The working principle of the permeation compaction grouting recorder:

An automatic monitoring system used in water conservancy and hydropower grouting construction. Its function is to collect grouting process parameters such as grouting pressure, flow rate, density, and lift through a grouting automatic recorder during the grouting process. At the same time, these collected parameters are automatically recorded in grouting displayed on the instrument. Because the grouting project is an underground hidden project, the application of the instrument is mainly to improve the work efficiency of the grouting project, reduce the factors of inaccurate and artificial records, and thus help to ensure the quality of the grouting project.

grout monitor system

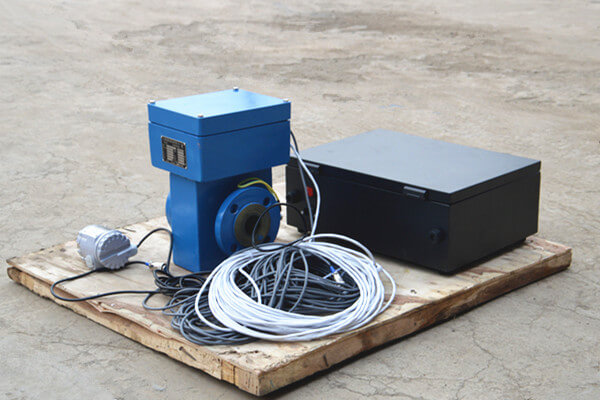

Permeation compaction grout monitor system
 product features:

1. Permeation compaction grout monitor system grouting recorder is widely used in SMW construction method, high pressure rotary injection, multi-head small diameter deep mixing pile, powder injection pile, road maintenance grouting, simple grouting and other series of grouting.
2. The integrated design is adopted. The key components of the instrument are imported components, which can effectively prevent moisture, dust, shock, and electromagnetic interference. The built-in regulated power supply is suitable for construction sites with scattered working surfaces and harsh environments, such as tunnels and subways. mouth etc.
3. It supports various pile-type grouting processes and automatic software identification without changing the settings.
4. The interface adopts LCD screen display.
5. All grouting parameters of dual-channel grouting can be displayed on the same screen in real time.
6. Data automatic power-off protection, you can resume work when you call.
