Fireproofing material spraying machine manufacturer

2020-05-26 17:40:12

Fireproofing material spraying machine manufacturer
Fireproofing material spraying machine is special equipment for spraying refractory materials, divided into electric and pneumatic drives. Compare with common dry mix shotcrete spraying machine, fireproofing material spraying machine have much more advantage, such as, low rebound, low dust, reduce additive water amount and improve refractory compactness and strength.
Fireproofing material spraying machine mainly composed of hopper, stirring device, discharge elbow, rotor and other parts. The motor drives the rotor to rotate through the reducer. Load the agitated material into the rotor, and send it out of the discharge elbow by the gas pipeline in the gas system, and then by the assistance of the auxiliary air inlet pipeline in the air system, the mixed material will pass through the feed pipe, Spray head, spray to the sprayed surface.

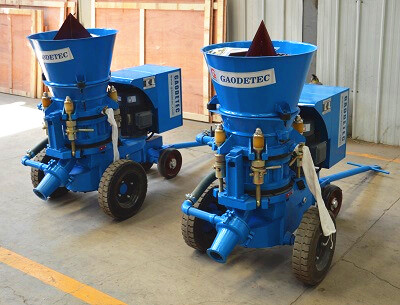

fireproofing material spraying machine

Fireproofing material spraying machine widely used for spraying refractory materials, also can used for castable in refinery and petrochemical plants.
Fireproofing material spraying machine manufacturer, Gaodetec GZ-3ER fireproofing material spraying machine, widely used for spraying refractory materials, castable in steel plant. Rated output is 3m3/h, electric motor driven, max. horizontal conveying distance is 100m, max. aggregate size is 10mm. Equipped with ABB frequency converter, could control rotor body rotate speed and achieve variable output from 1m3/h to 3m3/h.

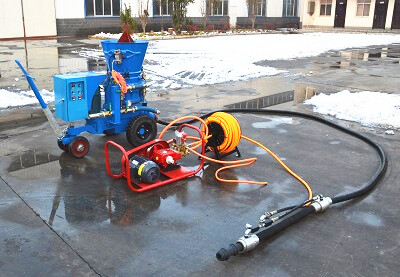

fireproofing material spraying machine manufacturer


GZ-3ER fireproofing material spraying machine is also equipped with corresponding accessories to facilitate on-site construction applications. High pressure water pump is used for providing high pressure water for refractory gunite machine, and make water atomize through water ring hole. Equipped with New pre-dampening nozzle assy, providing high pressure water through two waterways with needle valve control. Make water mixed even with water and achieve best spraying effect.fireproofing material spraying machine hopper also equipped with OLI vibrate motor, higher exciting force and better vibration effect than common air vibrator.

GZ-3ER fireproofing material spraying machine has the following features:
1. Variable Output with ABB variable-frequency drive
2. Bag cutter and flat hopper with vibrator
3. Collect dust bag
4. Clean dust gun
5. Heavy-duty solid wheels
6. Coupling and clamp
7. New type pre-dampening nozzle assy
8. Blast rubber hose
We also have 5m3/h, 7m3/h, electric and air motor driven fireproofing material spraying machine, can also customized according to your needs. If you are interested in our fireproofing material spraying machine products, you can contact us at any time, we will recommend the most suitable product for you.
