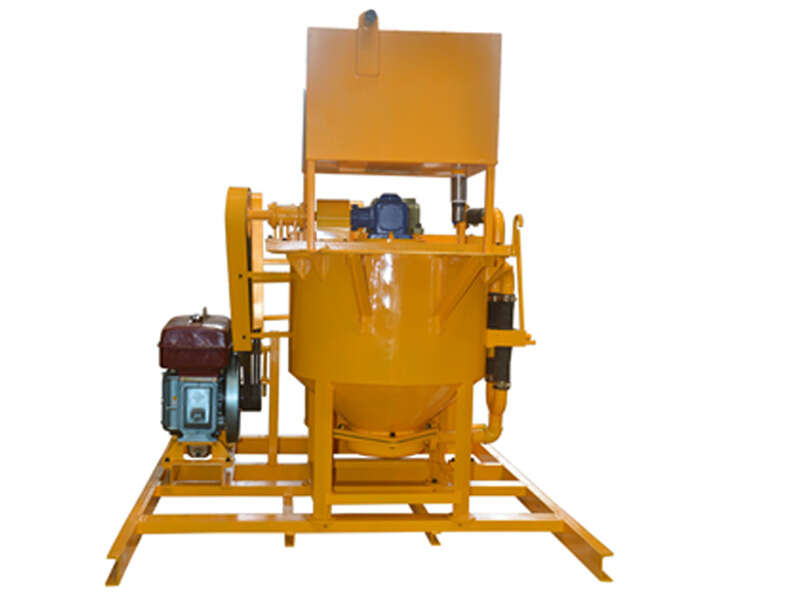

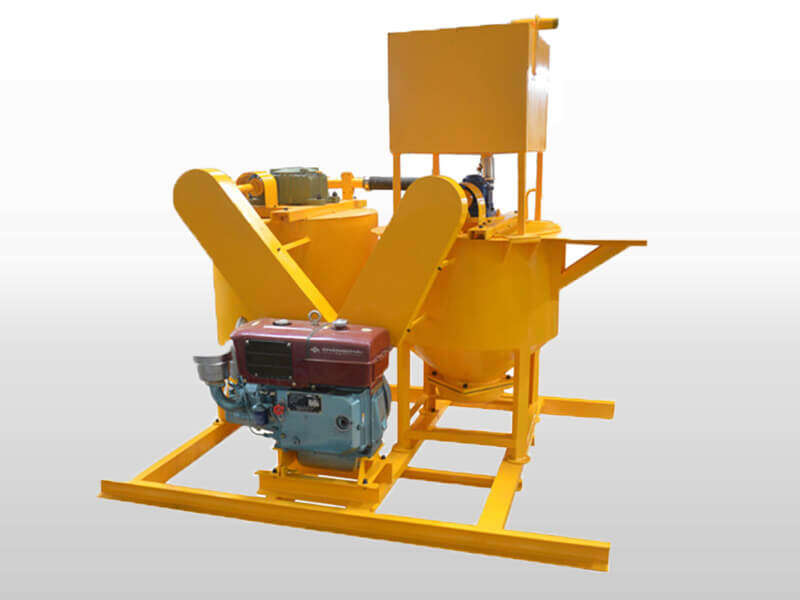

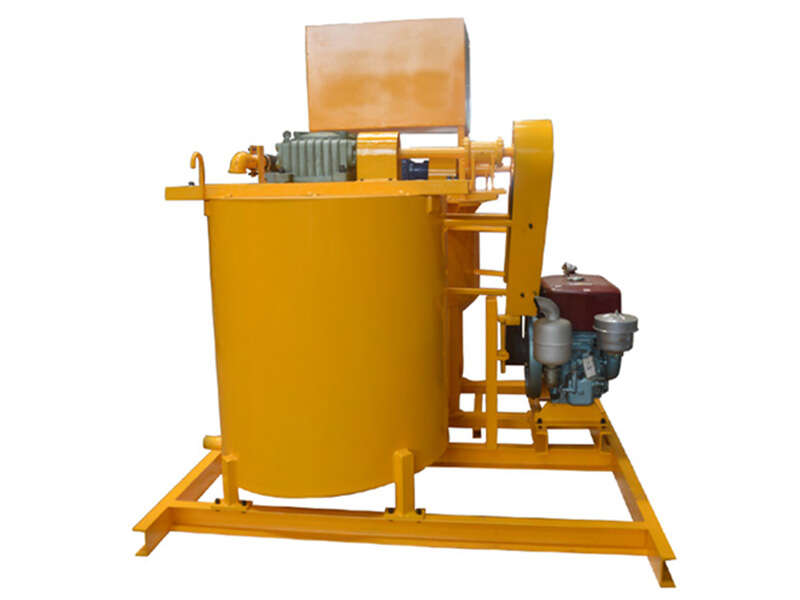

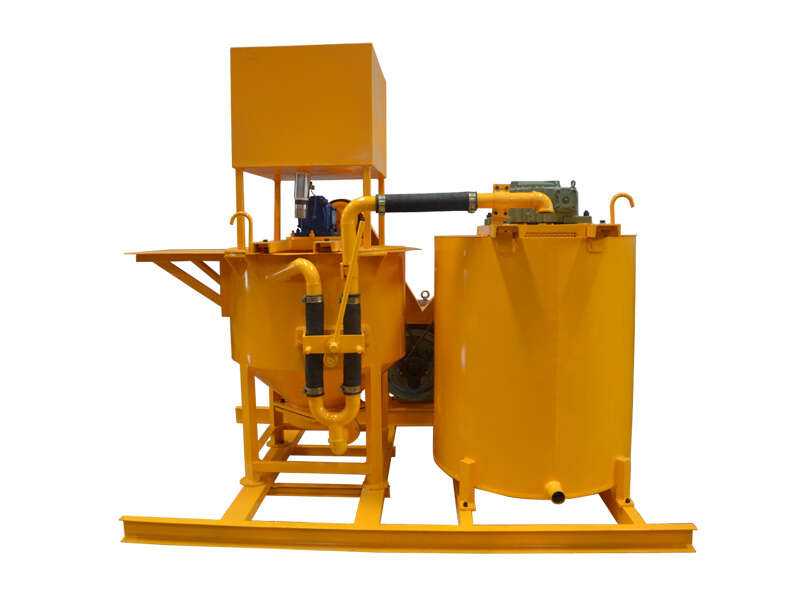

GMA300-650E/D cement mixer & agitator is a combination of mixer and agitator, it is specially design for continuous cement mixing and grouting in ground/underground engineering. It can produce various types of grout, such as water, cement, bentonite and additive could be mixed in the 300L mixer machine, then the mixed slurry can be stored into a 650 liters agitator, thus the mixing work can continuously be done.
For the power, there are diesel engine and electric motor for option.

Grout cement mixer and agitator can produce various types of grout, such as water, cement, bentonite and additive could be mixed in the 300L mixer machine, then the mixed slurry can be stored into a 650 liters

1. One-man operation;
2. Extremely fast mixing;
3. No seals to wear out from grout;
4. Simple grout transfer from mixer to agitator;

300L MIXER
Rated capacity	300 liter
Acceptable W/C ratio	≥0.5:1
Mixing time	3 min
Max emptying speed	1200L/min
Mixing speed	1500rpm
Weight	300 kgs
Overall Dimension	850mm diax750mm
650L AGITATOR
Rated capacity	650 liter
Rated Rev.	30rpm
Weight	150 kgs
Overall Dimension	900mm diax1050mm
Water tank
Rated capacity	150 liter
Weight	50kg
GMA300-650 E/D grout mixer and Agitator
Power	18HP (ZS1105 Changchai diesel engine)7.5 KW ( grout mixer)+1.5KW(Agitator) electric motor (3 phase, 380V, 50HZ)
Weight	750kg
