Model |
Power |
Tank Size |
Pump |
Agitation |

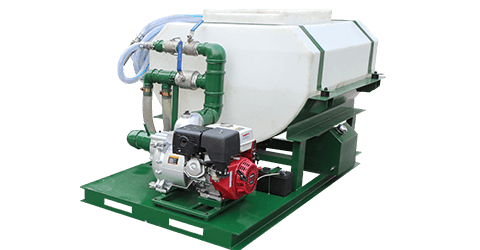

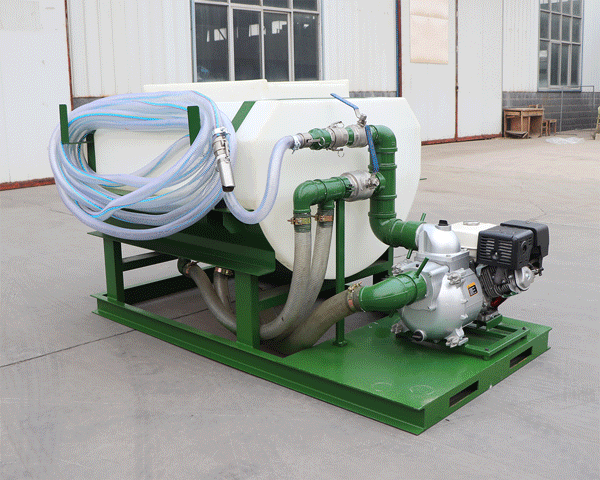

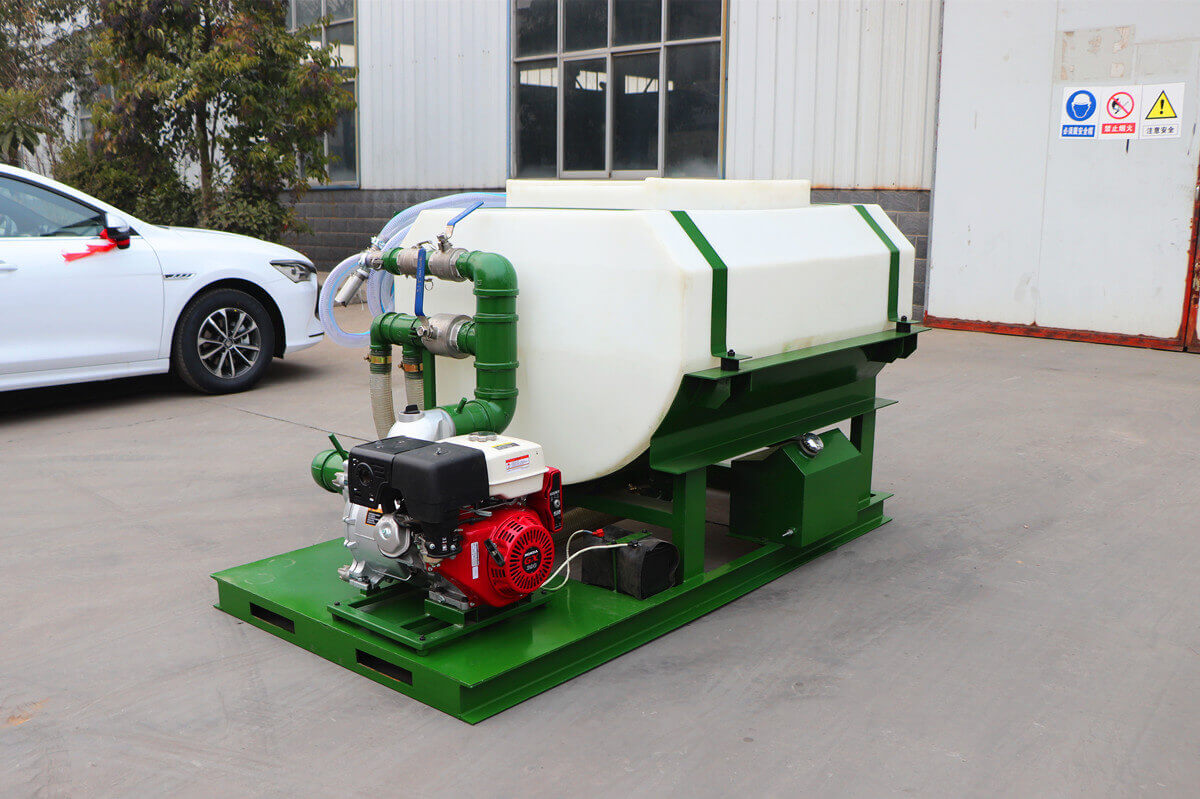

GHS0110PT |
13 hp Honda gasoline engine with electric start |
300Gallon/1200L/1m3, polyethylene material tank |
4″ X 4″ centrifugal pump, 80 m³/h |
Jet agitated |

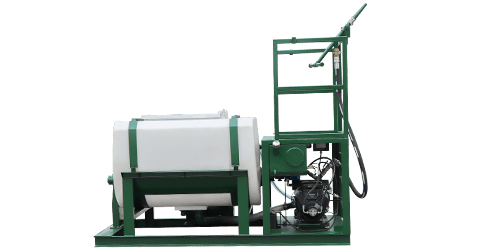

GHS0217PT |
23 hp BRIGGS STRATTON gasoline engine with electric start |
500Gallon/2000L/2m3, polyethylene material tank |
3″ X 1.5″ high volume, high pressure centrifugal pump, 120 m³/h |
Mechanical agitated |
GHS0117 |
17KW, Briggs & Stratton gasoline engine, air cooled |
300Gallon/1200L/1m3 |
3''x1.5'' (7.5X3.75cm), 15m³/h@5bar, 19mm solid clearance |
Mechanical agitator with helical paddle orientation and liquid recirculation |

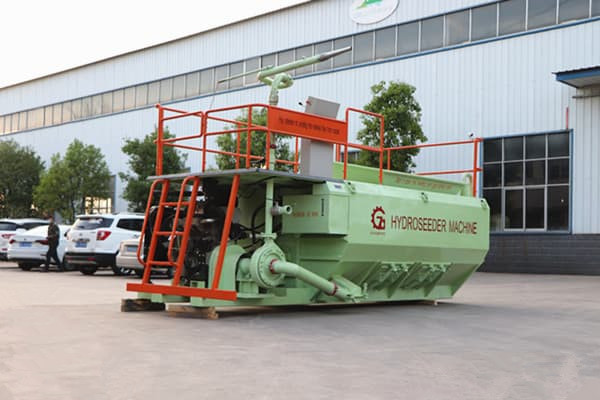

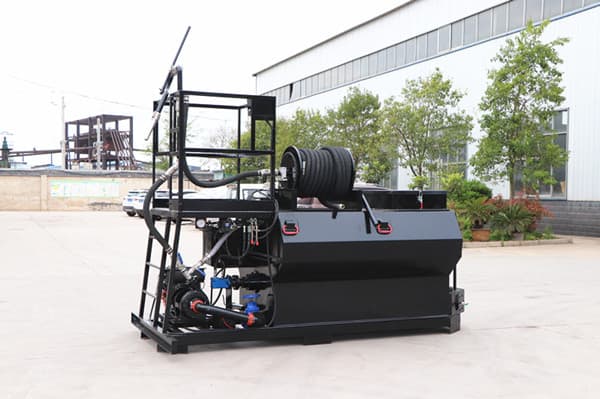

GHS0217 |
17KW, Briggs & Stratton gasoline engine, air cooled |
500Gallon/2000L/2m3 |
3''x1.5'' (7.5X3.75cm), 15m³/h@5bar, 19mm solid clearance |
Mechanical agitator with helical paddle orientation and liquid recirculation |
GHS0230 |
30KW, Chinese brand engine, water-cooled/air cooled |
500Gallon/2000L/2m3 |
3’’x1.5’’ (7.5X3.75cm), 45m³/h@5bar, 10mm solid clearance |
Mechanical agitator with helical paddle orientation and liquid recirculation |

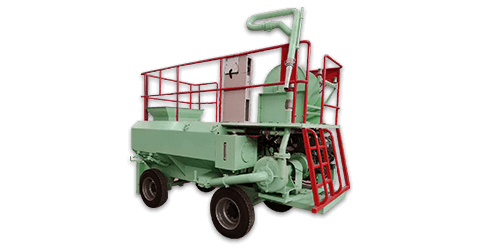

GHS0353 |
53KW, Chinese brand engine, water-cooled/air cooled |
800Gallon/3000L/3m3 |
4’’x2’’ (10X5cm), 70m³/h@7bar, 10mm solid clearance |
Mechanical agitator with helical paddle orientation and liquid recirculation |
GHS0353T |
53KW, Chinese brand engine, water-cooled/air cooled |
800Gallon/3000L/3m3 |
4’’x2’’ (10X5cm), 70m³/h@7bar, 10mm solid clearance |
Mechanical agitator with helical paddle orientation and liquid recirculation |

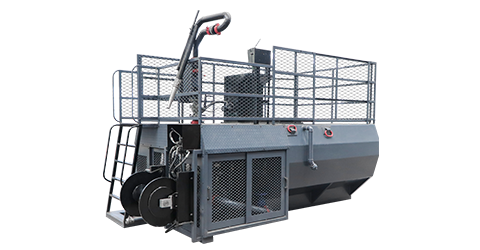

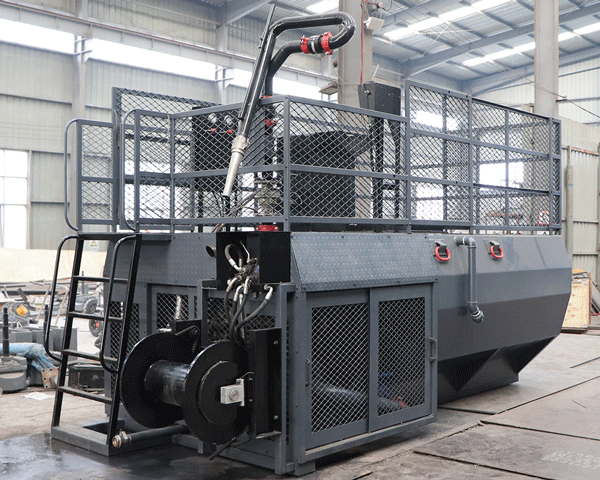

GHS0551 |
51KW, Cummins engine, water-cooled |
1300Gallon/5000L/5m3 |
4''x2'' (10.2X5cm), 73m³/h@7bar, 25mm solid clearance |
Twin mechanical agitators with helical paddle orientation and liquid recirculation |

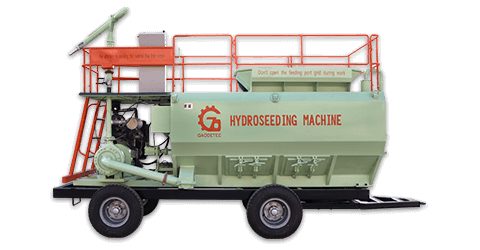

GHS0683 |
83KW, China brand diesel engine, water-cooled |
1600Gallon/6000L/6m3 |
5’’x2.5’’ (12.6X6.3cm), 90m³/h@10bar, 20mm solid clearance |
Mechanical agitator with helical paddle orientation and liquid recirculation |

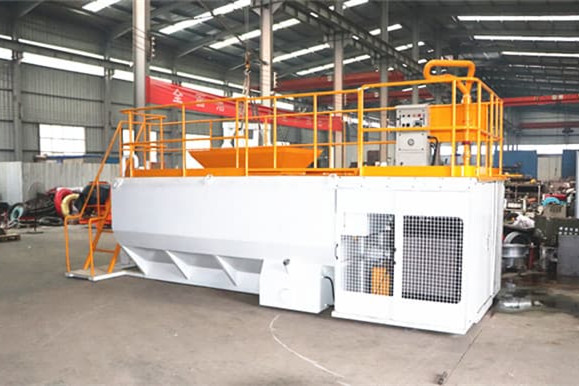

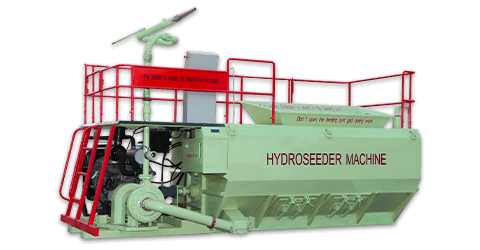

GHS0883 |
83KW, China brand diesel engine, water-cooled |
2100Gallon/8000L/8m3 |
5’’x2.5’’ (12.6X6.3cm), 90m³/h@10bar, 20mm solid clearance |
Mechanical agitator with helical paddle orientation and liquid recirculation |

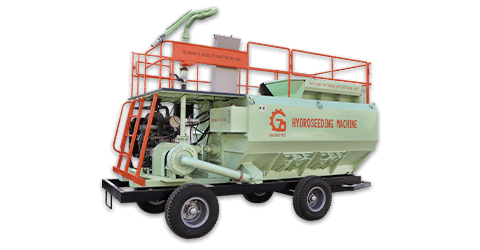

GHS0883T |
83KW, China brand diesel engine, water-cooled |
2100Gallon/8000L/8m3 |
5’’x2.5’’ (12.6X6.3cm), 90m³/h@10bar, 20mm solid clearance |
Mechanical agitator with helical paddle orientation and liquid recirculation |
GHS06100 |
100KW, Cummins engine, water-cooled |
1600Gallon/6000L/6m3 |
5’’x3’’ (12.6X7.6cm), 100m³/h@11bar, 20mm solid clearance |
Mechanical agitator with helical paddle orientation and liquid recirculation |

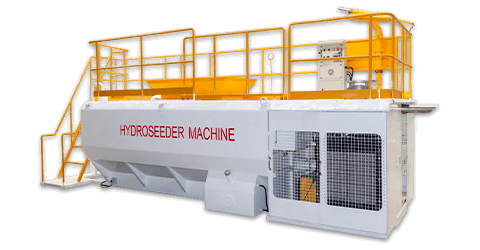

GHS08100 |
100KW, Cummins engine, water-cooled |
2100Gallon/8000L/8m3 |
5’’x3’’ (12.6X7.6cm), 100m³/h@11bar, 20mm solid clearance |
Mechanical agitator with helical paddle orientation and liquid recirculation |
GHS06100A |
103KW @ 220rpm Yuchai engine, water-cooled |
1600Gallon/6000L/6m3 |
5''x2.5'' (12.7X6.4cm), 100m³/h(440gpm)@ 11bar, 1'' (2.5cm) solid clearance |
Mechanical paddle agitators and liquid recirculation |

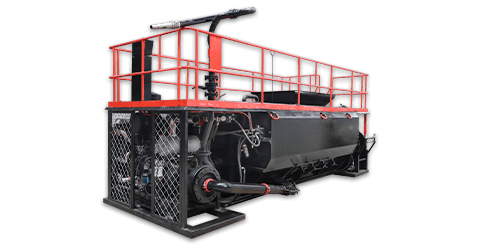

GHS08100A |
103KW @ 220rpm Yuchai engine, water-cooled |
2100Gallon/8000L/8m3 |
5''x2.5'' (12.7X6.4cm), 100m³/h(440gpm)@ 11bar, 1'' (2.5cm) solid clearance |
Mechanical paddle agitators and liquid recirculation |

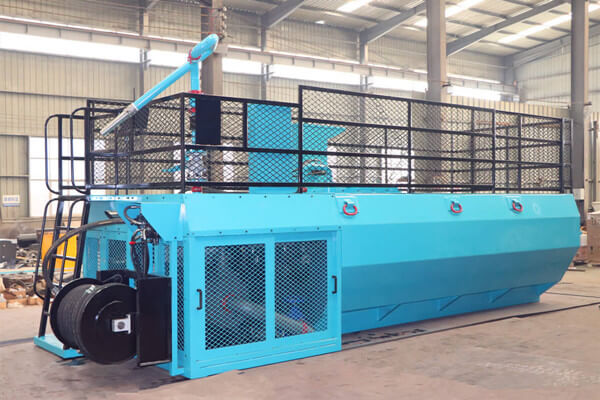

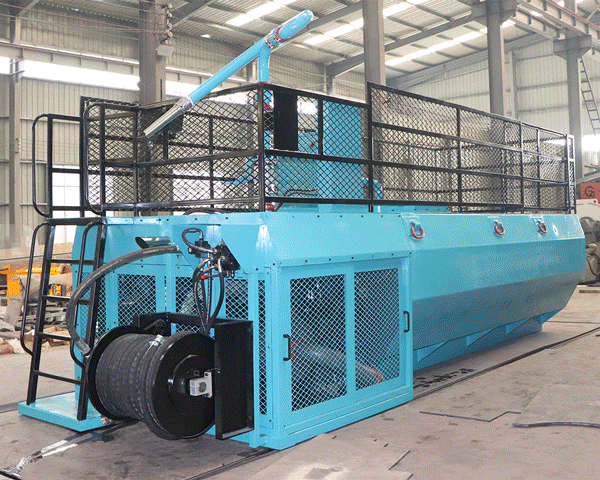

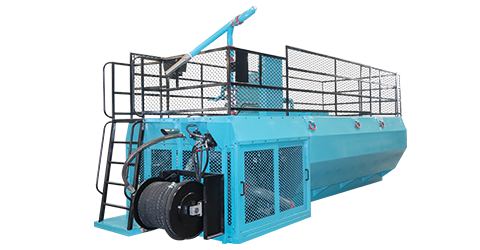

GHS10120 |
120KW, Cummins engine, water-cooled |
2600Gallon/10000L/10m3 |
5''x2.5'' (12.7X6.4cm), 90m³/h@11bar, 25mm solid clearance |

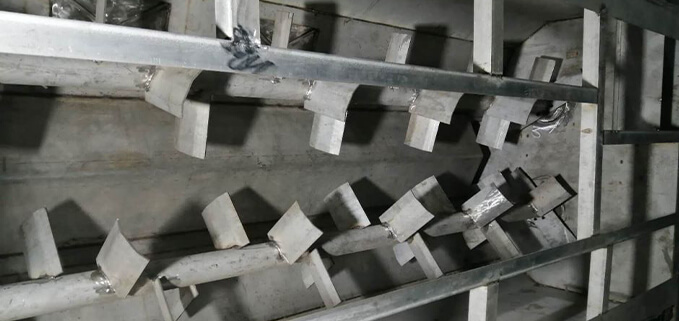

Twin mechanical agitators with helical paddle orientation and liquid recirculation |

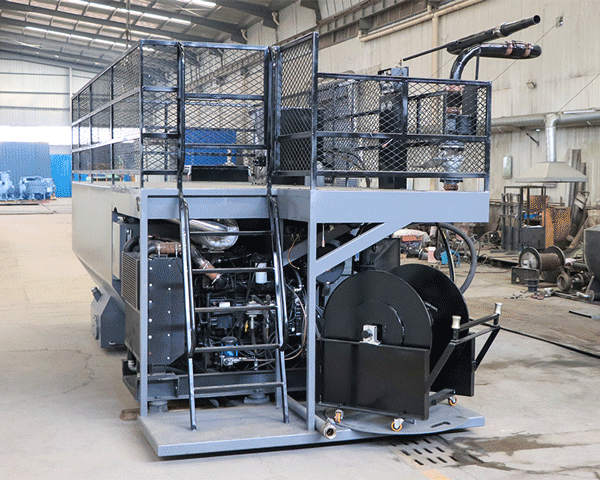

GHS13190 |
190KW, Cummins engine, water-cooled |
3400Gallon/13000L/13m3 |
Centrifugal pump:6’’x3’’ (15.2X7.6cm), 120m³/h@14bar, 33mm solid clearance |
Twin mechanical agitators with helical paddle orientation and liquid recirculation |

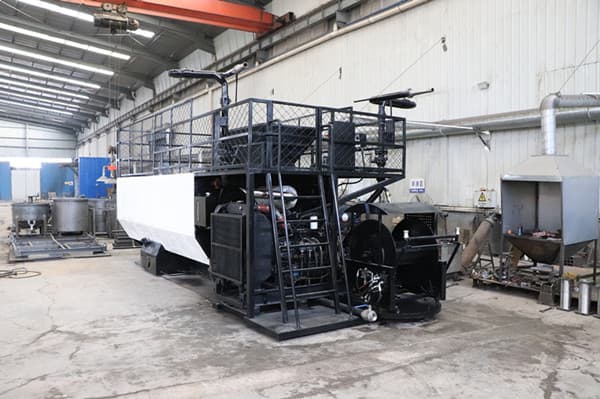

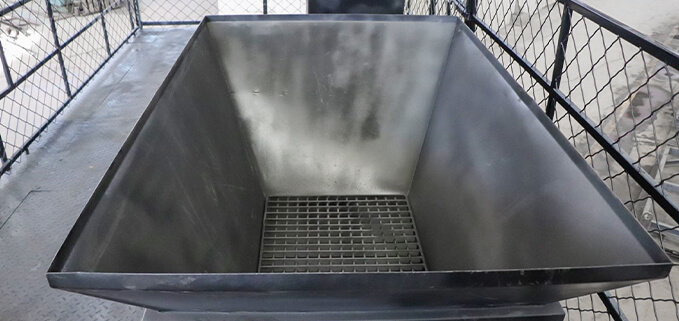

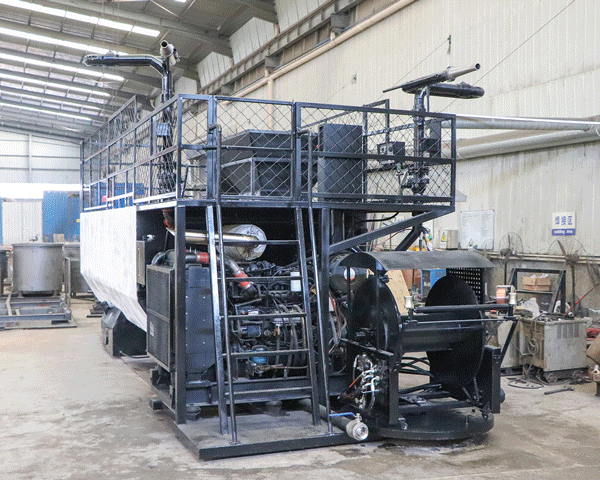

GHS15190 |
190KW, Cummins engine, water-cooled |
4000Gallon/15000L/15m3 |
6’’x3’’ (15.2X7.6cm), 120m³/h@14bar, 32mm solid clearance |
Twin mechanical agitators with helical paddle orientation and liquid recirculation |
