$Refractory shotcrete machine$

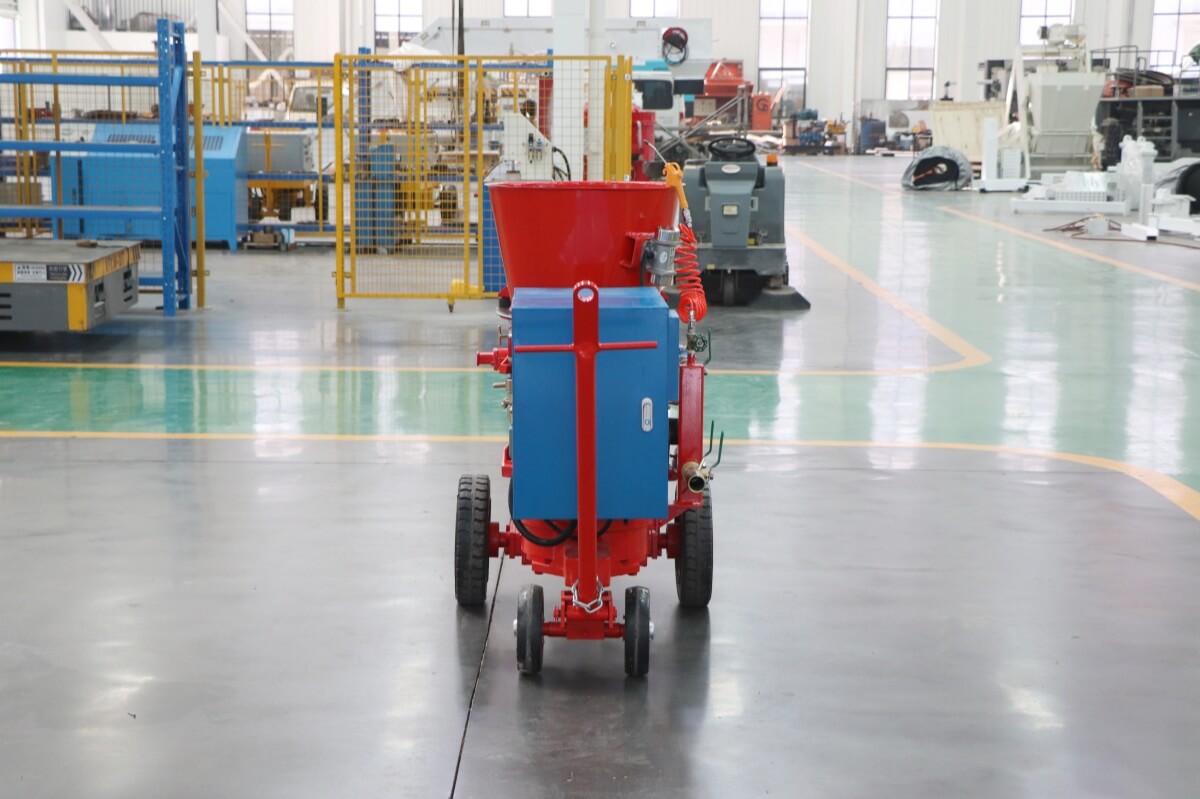

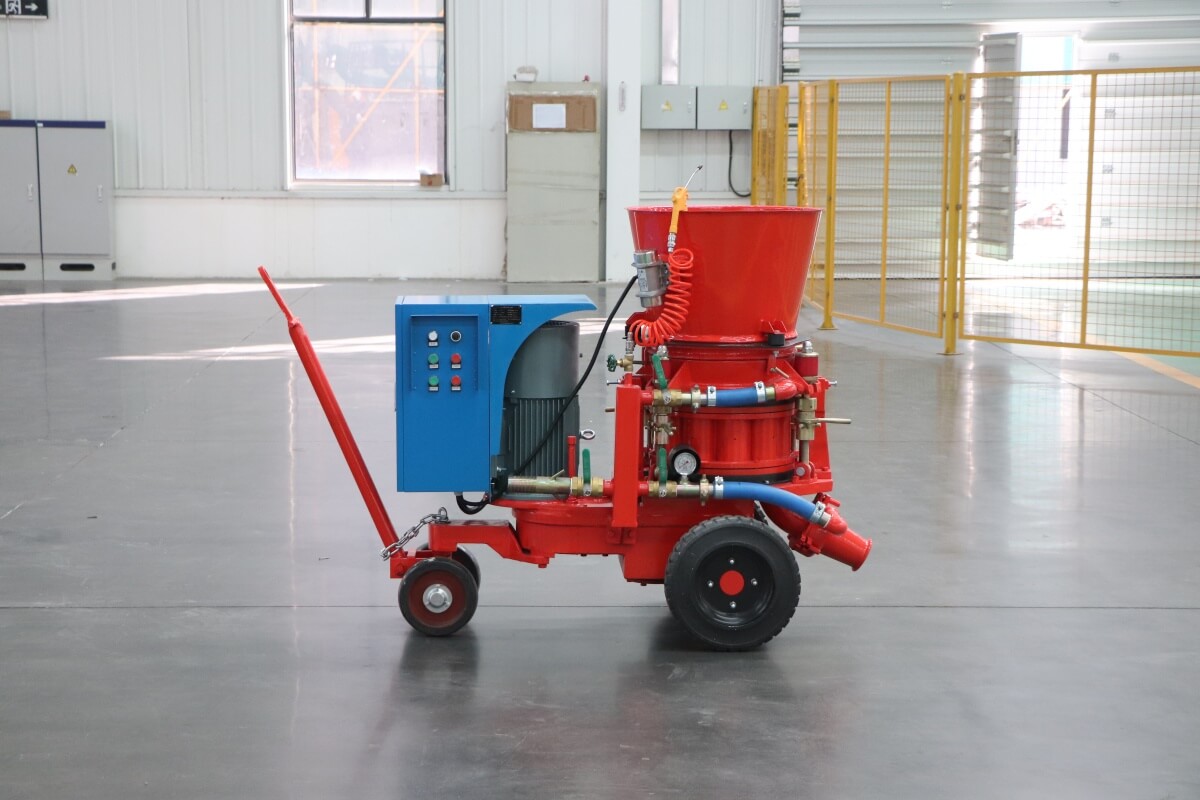

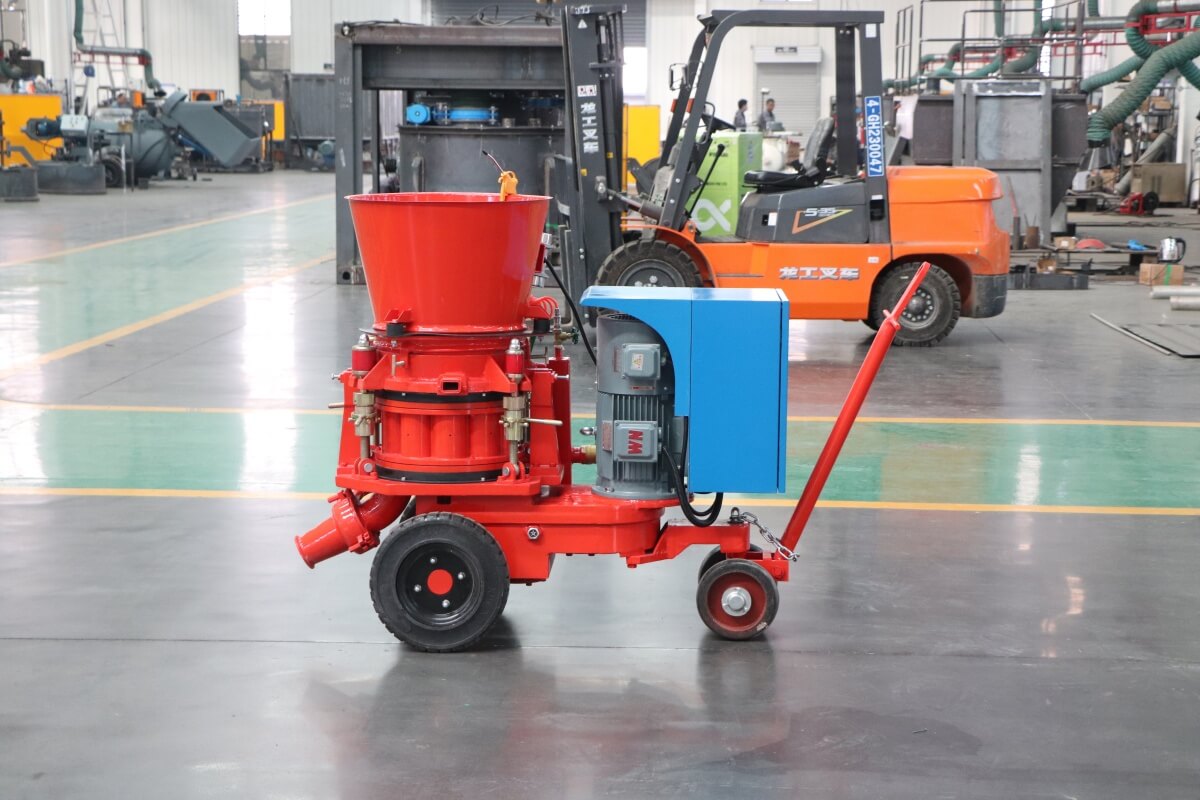

Refractory shotcrete machine

A refractory shotcrete machine (also commonly referred to as a refractory gunning machine or shotcreting machine) is a specialized piece of equipment used to apply refractory materials—such as castables, plastic refractories, or gunning mixes—onto the internal surfaces of high-temperature industrial vessels like furnaces, kilns, ladles, and incinerators.

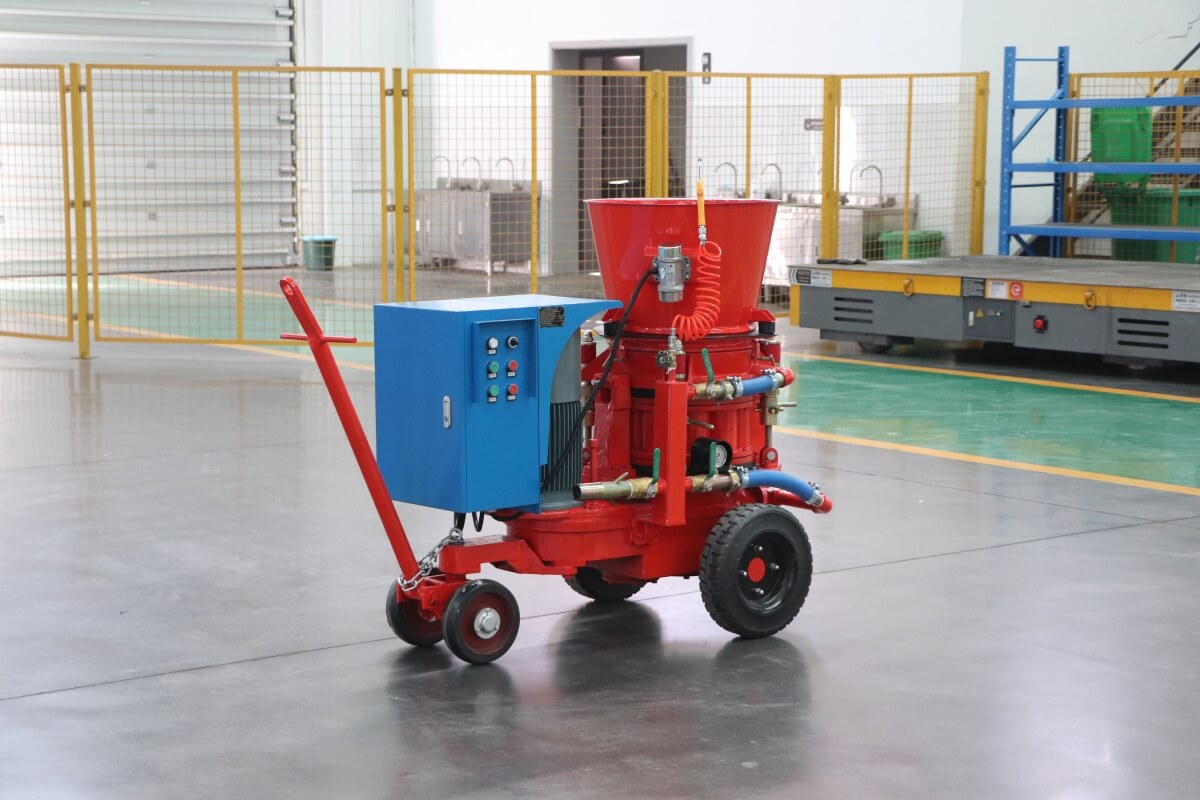

Electrical refractory gunning machine

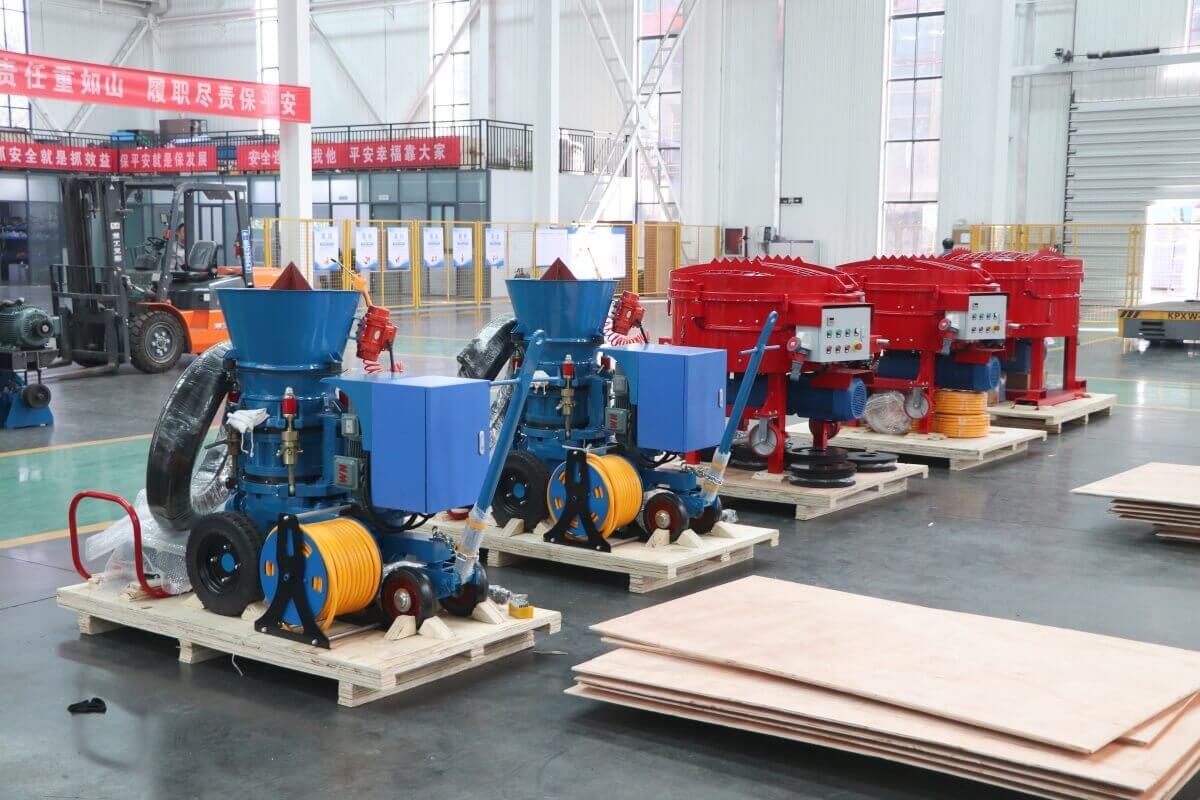

Refractory gunning machine and refractory pan mixer for sale

Content

Refractory shotcrete machines, with their high efficiency, precision, and adaptability, are widely used in various high-temperature industrial fields. The following are specific application scenarios and analyses:
1. Steel Industry: Core Application Area
Blast Furnace Lining Repair
Requirement: During blast furnace operation, refractory linings are prone to flaking or cracking due to high temperatures, slag erosion, and thermal shock, requiring regular repair.
Advantages: Refractory shotcrete machines use high-pressure spraying to precisely adhere refractory materials (such as aluminosilicate and carbonaceous gunning materials) to the furnace walls, forming a dense coating and extending the life of the blast furnace.
Case Study: Hunan Dingfeng Machinery’s blast furnace wet gunning machine, which uses pre-wetting technology to reduce dust and improve repair efficiency by 30%, has been awarded a national invention patent.
Converter and Electric Furnace Hot Repair
Requirement: Components such as converter caps, trunnions, and electric furnace covers are susceptible to wear due to frequent loading and tapping operations. Rapid repair is required to minimize downtime.
Advantages: Refractory shotcrete machines support both dry and wet gunning methods to accommodate different material requirements. For example, the PB-II semi-dry gunning machine can achieve horizontal conveyance of 100-150 meters, meeting the continuous operation requirements of large converters.
Maintenance of the Permanent Layer of Ladles and Tundishes
Requirement: The ladle lining must withstand high-temperature molten steel, and the tundish must prevent molten steel from penetrating the refractory layer. Both require regular gunning repair.
Advantage: Refractory shotcrete machines can spray high-performance refractory materials such as magnesia and alumina-magnesia, extending the service life of the ladle. For example, the ZRS series gunning machine supports cold ladle repairs, with a discharge rate of 10-20 kg/min, making it suitable for small-area repairs.

2. Non-ferrous Metals Industry: High-Temperature Equipment Maintenance
Repair of Aluminum Electrolytic Cell Linings
Requirement: Aluminum electrolytic cells operate at temperatures of 950-970°C. The carbon blocks in the lining are susceptible to electrolyte corrosion, requiring regular gunning of the protective layer.
Advantage: Refractory shotcrete machines can spray carbon or silicon refractory materials to form a corrosion-resistant coating. For example, flame gunning machines use high-temperature flames to heat the gunning material, achieving a molten bond without damaging the original masonry.
Copper Smelting Furnace Refractory Lining Maintenance
Requirement: The lining of copper smelting furnaces must withstand the erosion of high-temperature molten copper, which can easily cause localized spalling.
Advantages: Refractory shotcrete machines support both wet and dry gunning methods, adapting to different material viscosity requirements. For example, wet gunning machines use compressed air to spray slurry, suitable for large-area repairs; dry gunning machines mix water and dry powder at the front of the gun to reduce rebound.

3. Power Industry: Boiler Refractory Liner Repair
Circulating Fluidized Bed Boiler (CFB) Water Wall Wear Protection
Requirement: During operation, CFB boilers are susceptible to wear from bed material erosion, requiring the application of a wear-resistant ceramic coating.
Advantages: Refractory shotcrete machines can spray high-aluminum or silicon carbide wear-resistant materials, forming a dense protective layer. For example, COSCO Machinery’s electric furnace gunning machines support continuous operation and a horizontal conveying distance of 25 meters, making them suitable for work within the confined spaces of the boiler interior. Biomass Boiler Refractory Lining Repair
Requirement: Biomass boilers burn biomass fuel, which easily produces corrosive gases and requires regular refractory lining repair.
Advantages: Refractory shotcrete machines can spray corrosion-resistant refractory materials, such as phosphate-bonded high-alumina gunning mix, to extend boiler service life.

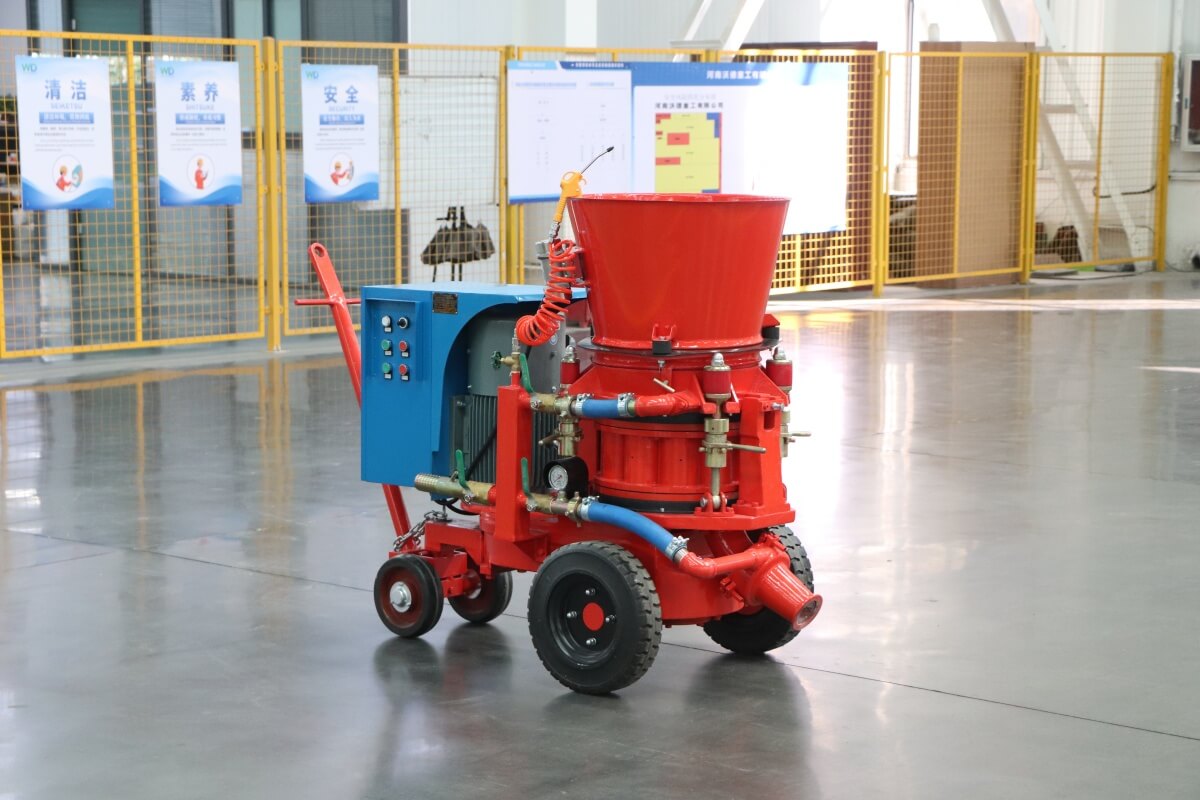

refractory gunning machine driven by electric motor

4. Building Materials Industry: Kiln Lining Maintenance

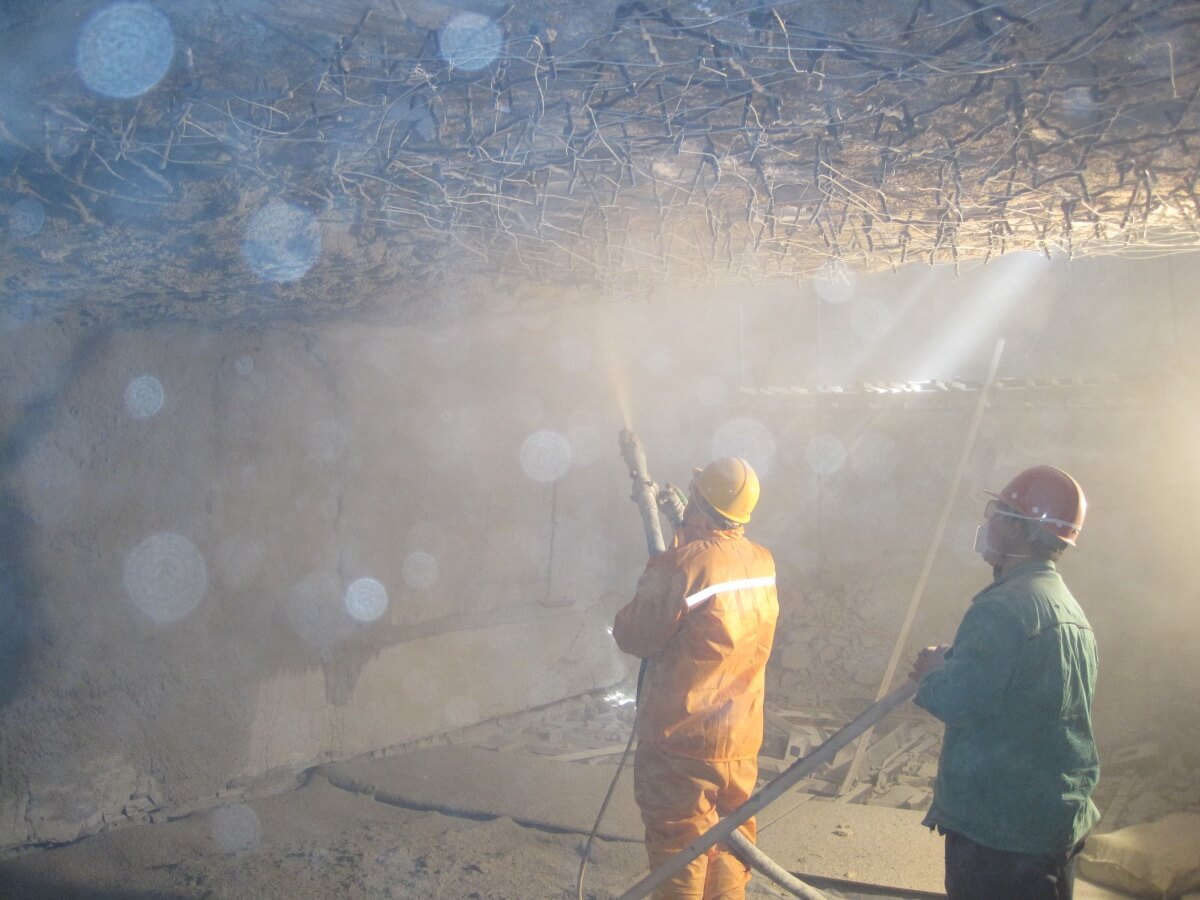

Cement Rotary Kiln Refractory Lining Repair
Requirement: During operation, refractory bricks in cement rotary kilns are susceptible to wear and tear from high-temperature materials, requiring regular gunning repair.
Advantages: Refractory shotcrete machines support a semi-dry gunning process, using compressed air to deliver gunning mix, reducing material waste. For example, the PB-type gunning machine utilizes variable frequency drive technology, enabling stepless output adjustment to meet varying construction requirements.
Glass Furnace Lining Maintenance
Requirement: Glass furnaces operate at temperatures reaching 1500-1600°C. The zirconium refractory lining is susceptible to corrosion by molten glass, requiring regular gunning repairs. Advantages: Refractory shotcrete machines can spray zircon or fused corundum refractory materials to create corrosion-resistant coatings. For example, flame gunning machines use high-temperature flames to heat the gunning material, achieving a fusion bond and increasing the coating density.

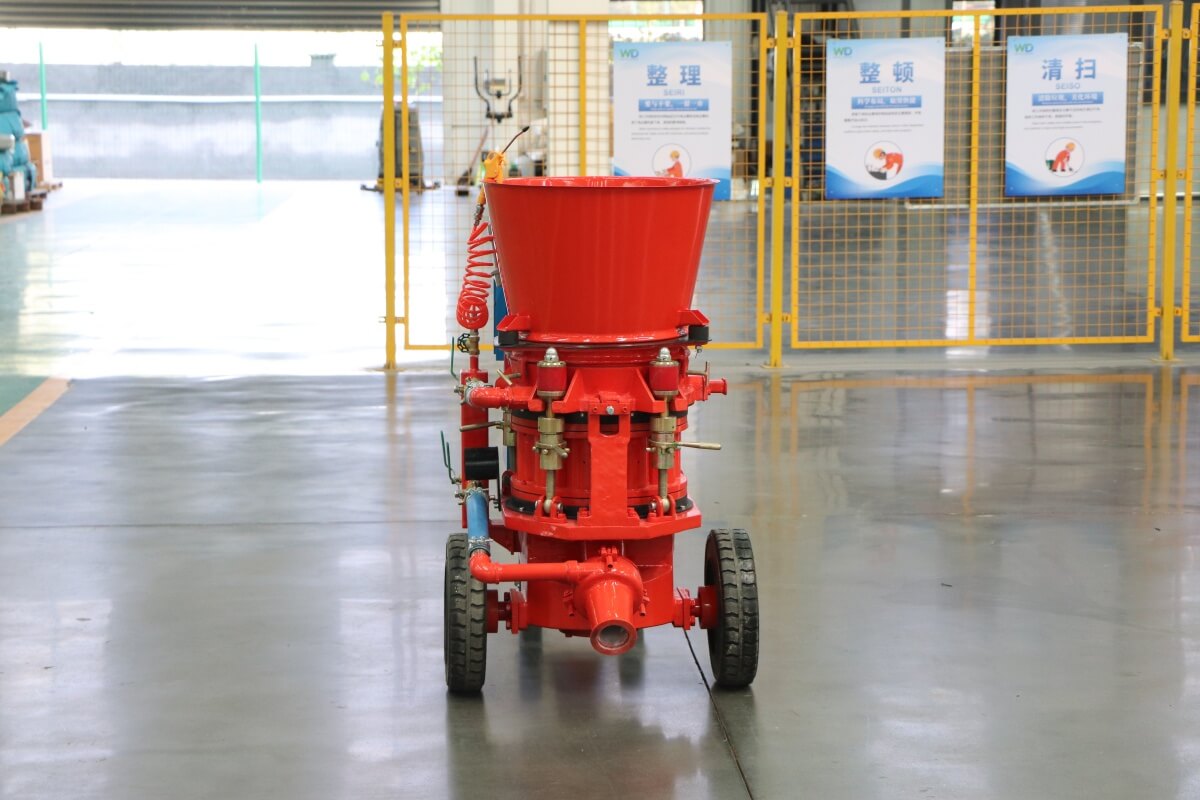

high quality electrical refractory gunning machine

5. Other Applications: Specialty Equipment Maintenance
Repair of Reactor Linings in the Chemical Industry
Requirement: Chemical reactors are subject to high temperatures, high pressures, and corrosive media, and the lining refractory materials are susceptible to aging and peeling.
Advantages: Refractory shotcrete machines can spray corrosion-resistant refractory materials, such as phenolic resin combined with silicon carbide gunning material, to create a protective layer.
Repair of Refractory Linings in Waste Incinerators in the Environmental Protection Industry
Requirement: During operation, the lining refractory materials of waste incinerators are susceptible to corrosion from high-temperature flue gases and corrosive gases, requiring regular repair.
Advantages: Refractory shotcrete machines can spray high-chromium or aluminum silicate refractory materials to improve the lining’s corrosion resistance.

Inquiry

More Refractory Gunning Machine

$250kg capacity refractory pan mixer and gunning machine$

250kg capacity refractory mixer and gunning machine is the specialized piece of equipment used in industrial applications—particularly in steel, cement, petrochemical, and power generation industries—for mixing and applying refractory castables or gunning mixes onto furnace linings, ladles, kilns, or other high-temperature structures.

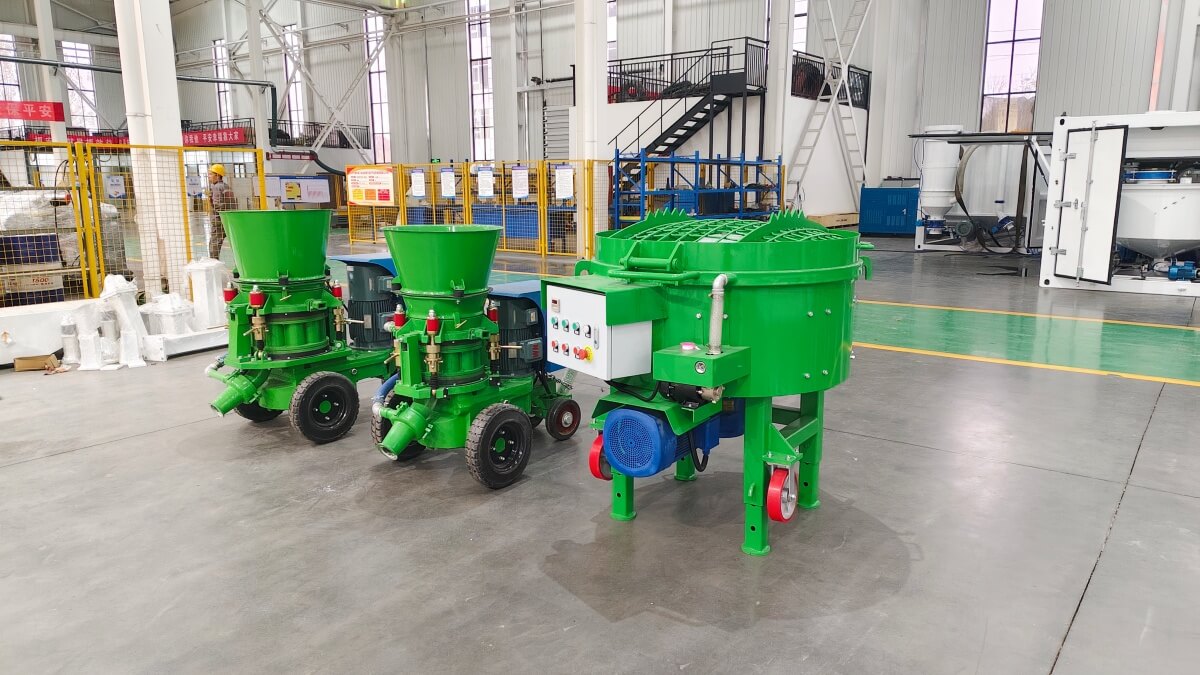

250kg capacity refractory pan mixer and gunning machine

$100kg 250kg 300kg 500kg 750kg 800kg 1000kg Refractory Castable Pan Mixer$

The GRM 100kg, 250kg, 300kg, 500kg, 750kg, 800kg, and 1000kg Refractory Castable Pan Mixer features a compact design and full functionality. It is equipped with powerful performance and operating technology. The refractory pan mixer can be used for both castable and dry mortar refractory. Inside the mixer, there are very wear-resistant liners, extending the machine’s life.
The 100kg Refractory Castable Pan Mixer is suitable for laboratory use and small casting production. The 250kg Refractory Castable Pan Mixer is suitable for steel structure fireproofing and small kiln repair. The 500kg Refractory Castable Pan Mixer is suitable for industrial kiln lining and pipe wrapping. The 800kg Refractory Castable Pan Mixer is suitable for large ladle lining repair and blast furnace hot air duct construction. The 1000kg Refractory Castable Pan Mixer is suitable for laboratory use and small casting production. The Mixer is suitable for cement rotary kiln linings and waste incinerator casting.

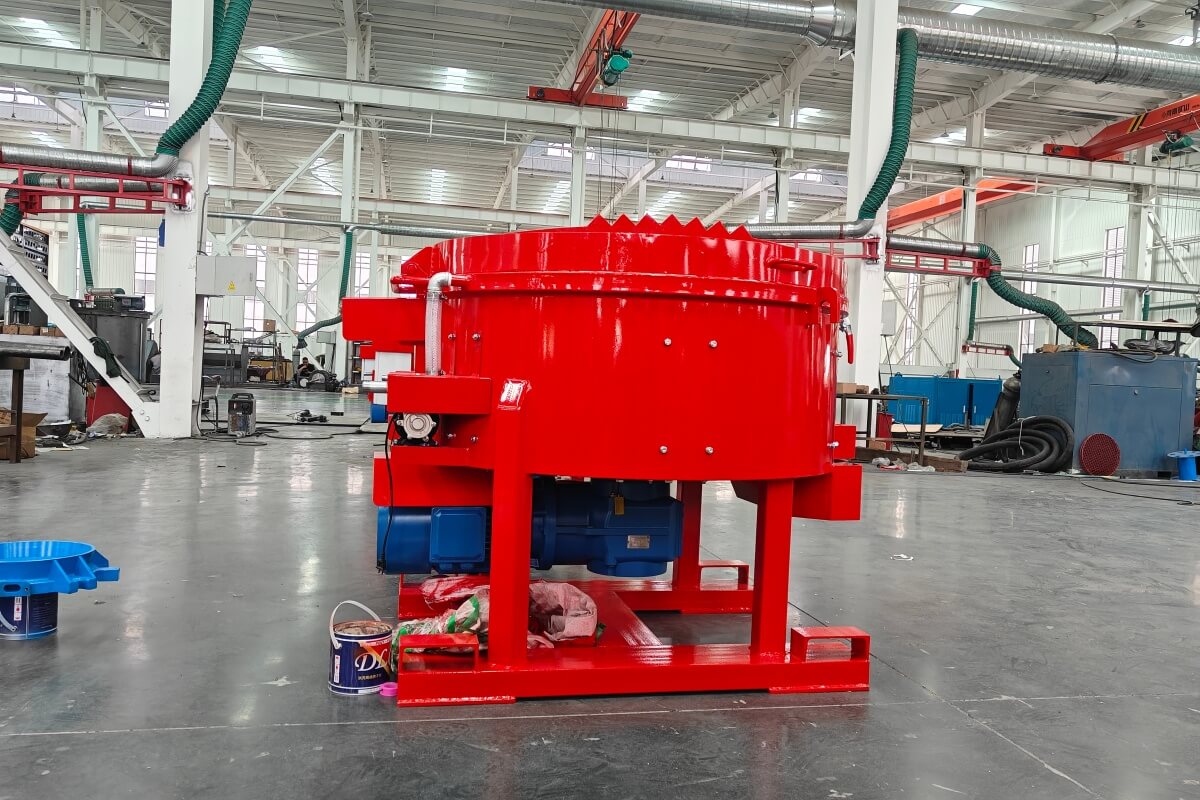

100kg 250kg 300kg 500kg 750kg 800kg 1000kg Refractory Castable Pan Mixer

$Refractory gunning machine for gunning repair on EAF$

Refractory gunning machines for repairing EAF use compressed air or a mechanical pump to mix refractory materials (such as magnesia and alumina-magnesia gunning materials) with water or a binder, then spray them at high speed onto the worn areas of the electric arc furnace lining, forming a dense repair layer. For electric arc furnace (EAF) gunning repairs, we recommend using refractory gunning machines with high-pressure output, wear-resistant nozzles, automated control, and explosion-proof design. Their core function is to repair the furnace lining by spraying refractory materials at high pressure, and key parameters must be compatible with the high-temperature, high-wear environment of the EAF.

Refractory gunning machine for gunning repair on EAF

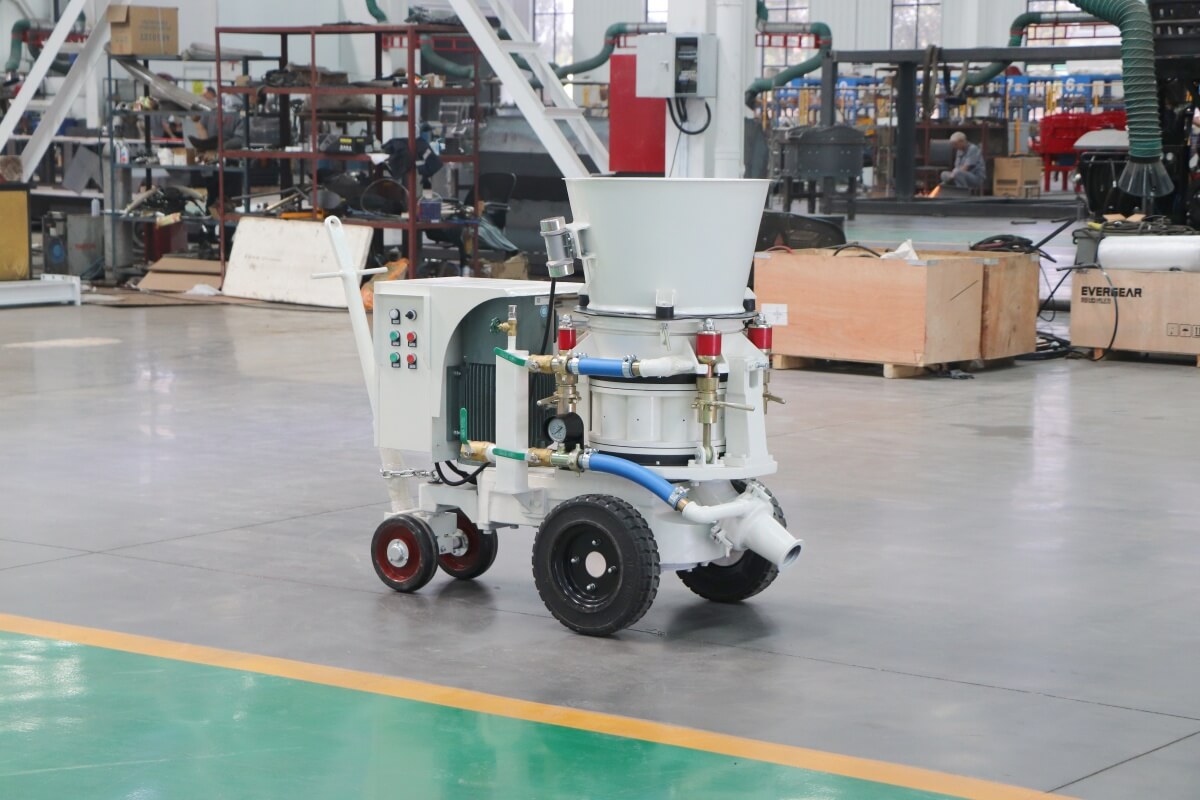

$Small guniting machine for refractory works$

Small guniting machine for refractory works can usually be classified as a dry mix refractory gunning machine or an electric refractory gunite machine. Its core function is to spray dry powdered refractory materials (such as refractory mud and castables) at high speed onto the construction surface through compressed air or electric drive to form a refractory protective layer.

Small guniting machine for refractory works

$Refractory shotcrete machine$

Refractory shotcrete machine

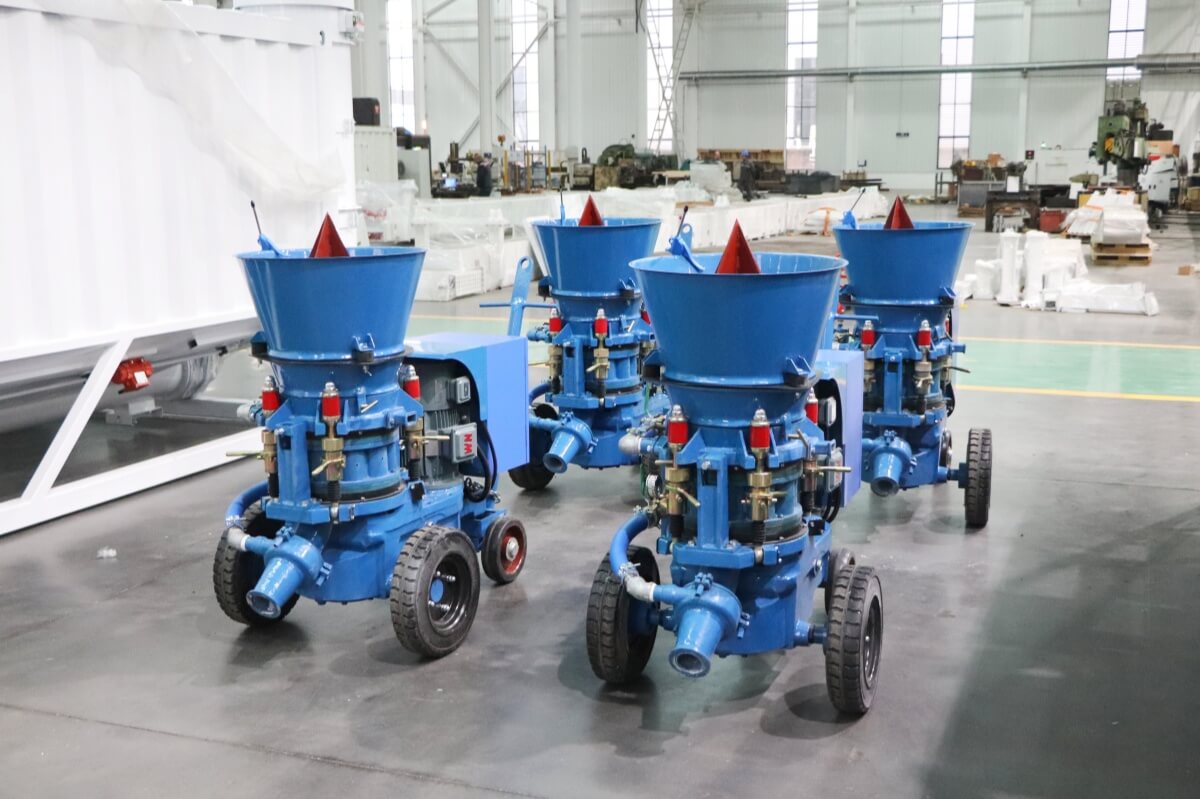

$Refractory gunning machine for sale$

Today, our factory shipped four GZ-3ER refractory gunning machines. These gunning machines use compressed air to spray a precisely proportioned mixture of refractory materials at high speed, forming a refractory coating on the surface being sprayed. Their significant advantages, including rapid application speed, high efficiency, and high-quality work, have led to their widespread adoption. Refractory gunning machines are primarily used in the following applications:
1. Metallurgical Industry: Hot and cold repairs of blast furnaces, ladles, and converter linings.
2. Building Materials Industry: Refractory repair of cement kilns and glass kilns.
3. Power Industry: Thermal insulation spraying of boiler linings.
4. Construction and Mining: Tunnel support, slope protection, and fireproof coating of steel structures.
5. Decoration Engineering: Relief coatings, handicraft spraying, and rockery shaping.

Refractory gunning machine for sale

$Refractory gunning machine and refractory pan mixer for sale$

Gaode Equipment is a professional refractory equipment manufacturer and supplier from China. We can provide you with electric, pneumatic and diesel-powered refractory shotcrete machines of various displacements and refractory mixers with mixing capacities of 100kg, 200kg, 250kg, 300kg, 500kg, 750kg, 800kg and 1000kg. They are widely used in the construction and preparation of high-temperature industrial refractory materials.

Refractory gunning machine and refractory pan mixer for sale

$Refractory gunning machine for cement plant$

Refractory gunning machine uses high-pressure spraying of refractory materials to quickly repair the refractory layer of high-temperature components such as kiln linings, preheaters, and coolers. Their core advantages lie in efficient repair, reduced downtime, and lower labor intensity. They are particularly suitable for partial or overall refractory layer maintenance of equipment such as rotary kilns, decomposition furnaces, and grate coolers in cement plants.

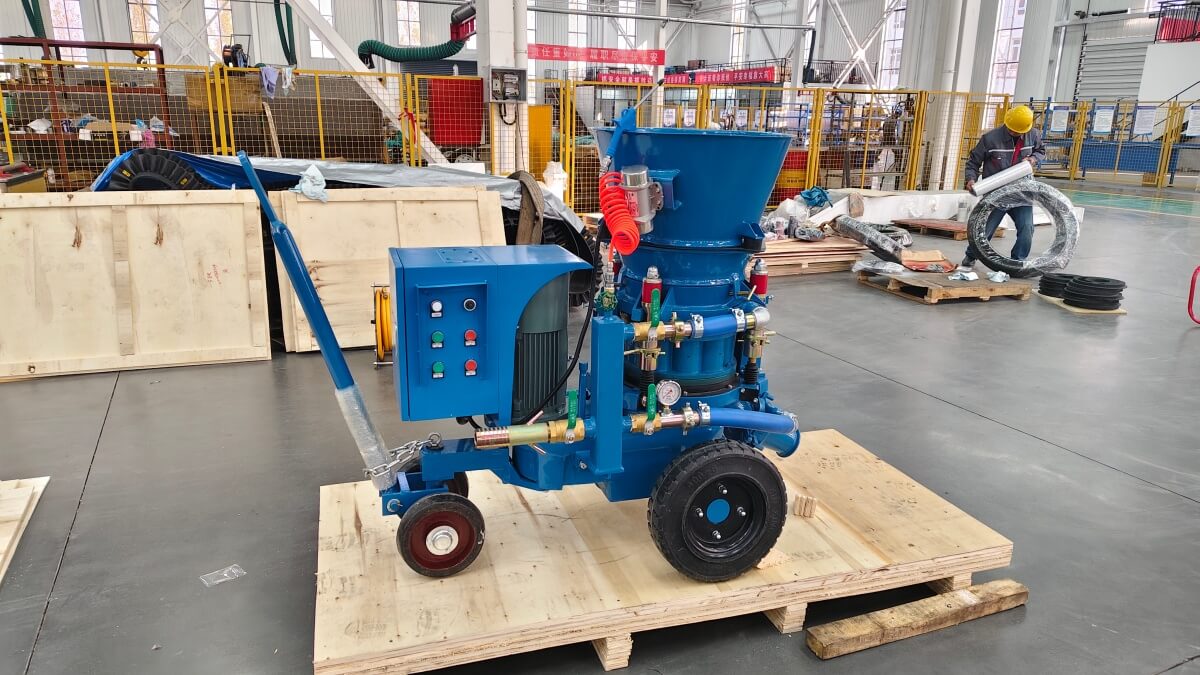

Refractory gunning machine for cement plant

$Electrical refractory gunning machine$

An electrical refractory gunning machine is a specialized piece of equipment used in high-temperature industrial applications, such as steelmaking, cement production, and other metallurgical processes. It is designed to apply refractory materials (heat-resistant linings) to the internal surfaces of furnaces, kilns, ladles, and other vessels that are exposed to extreme heat.

Electrical refractory gunning machine

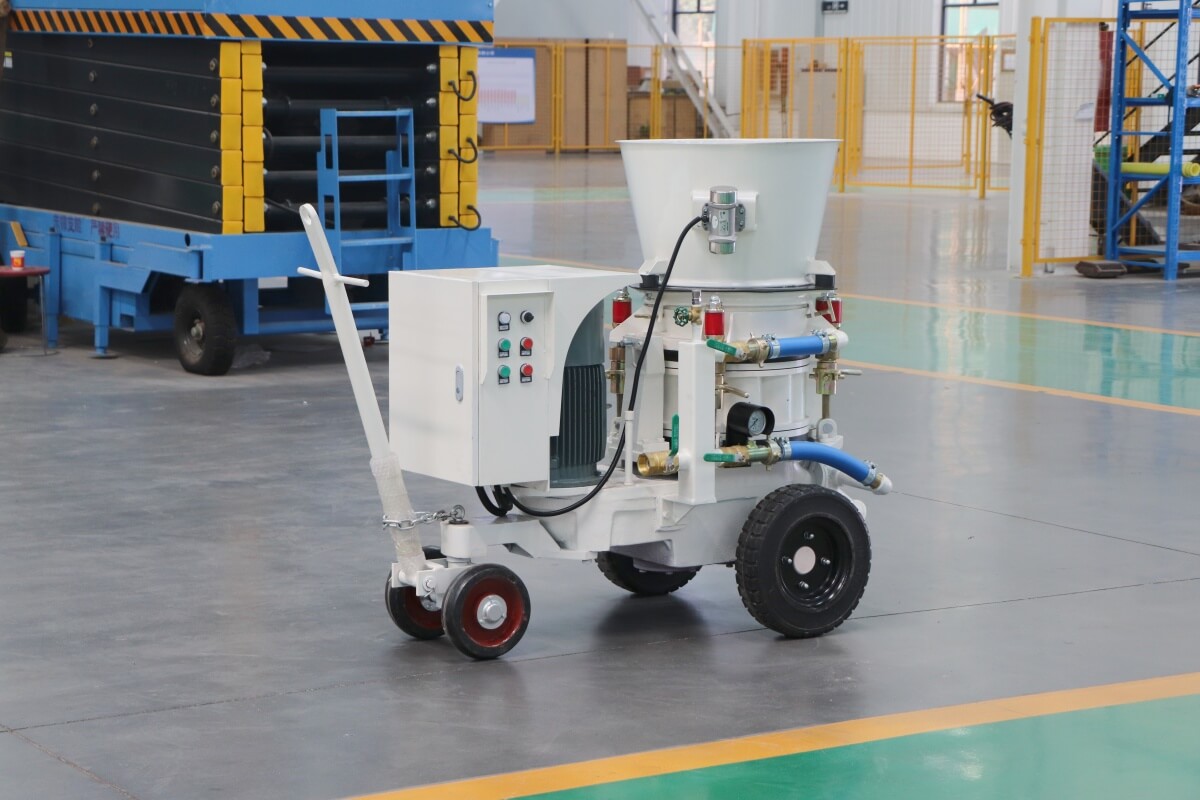

$Electric motor dry mix refractory gunning machine$
