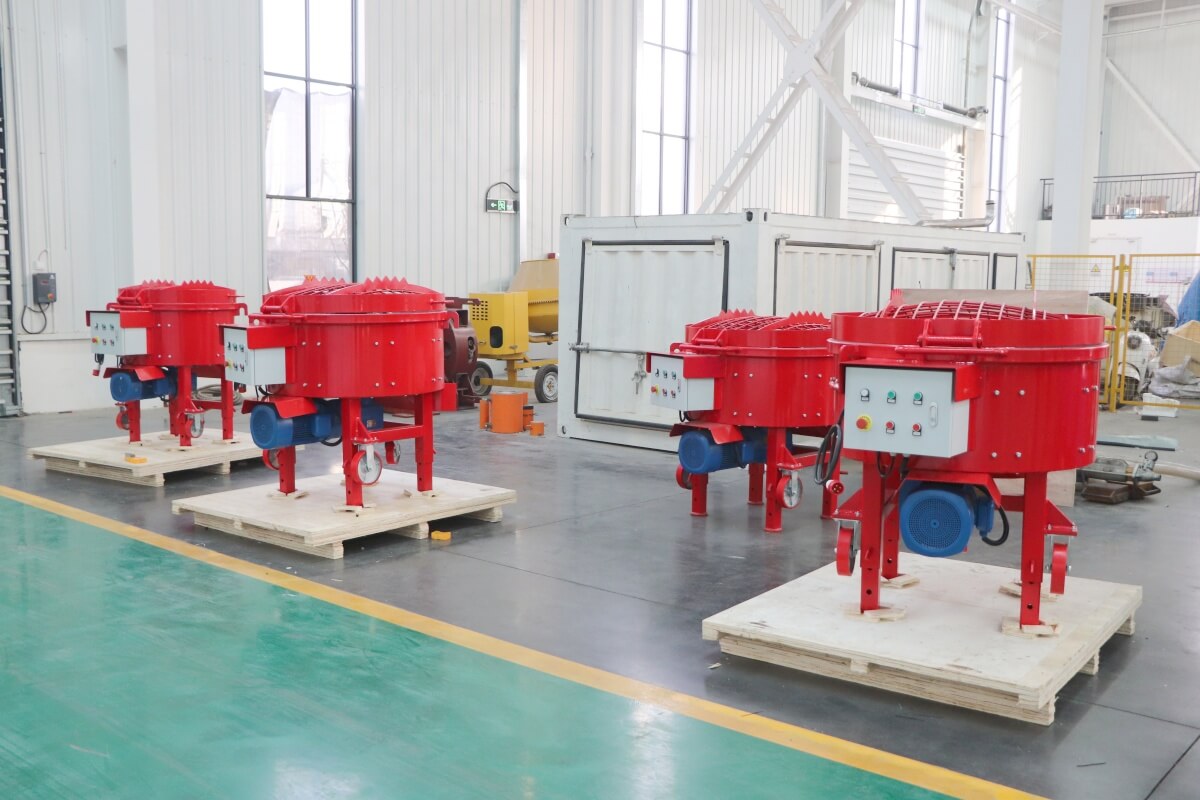

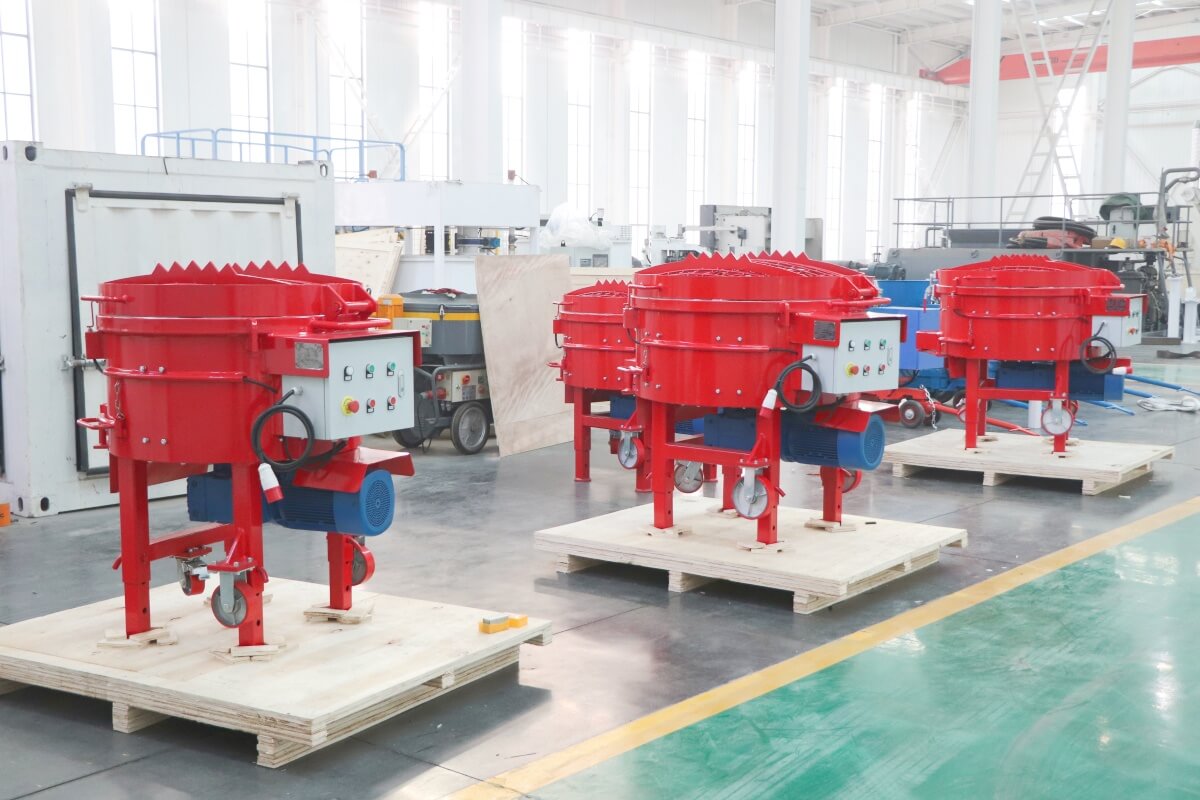

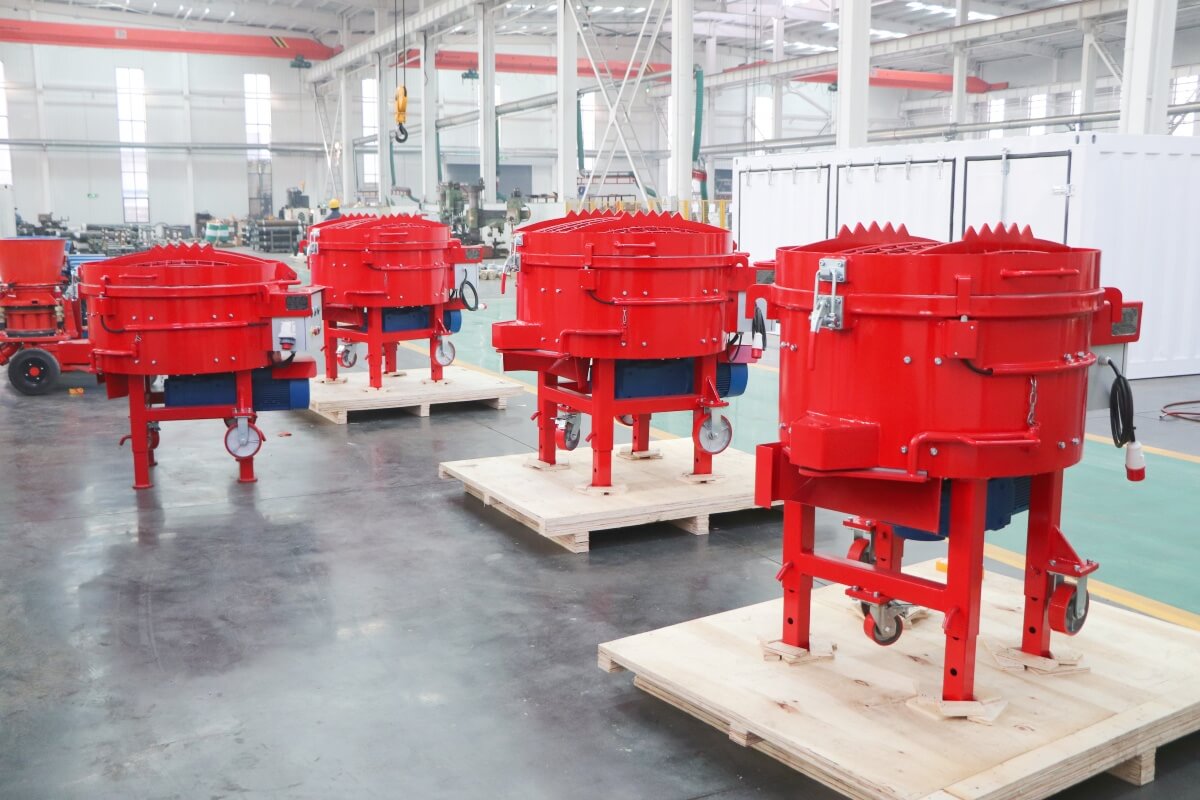

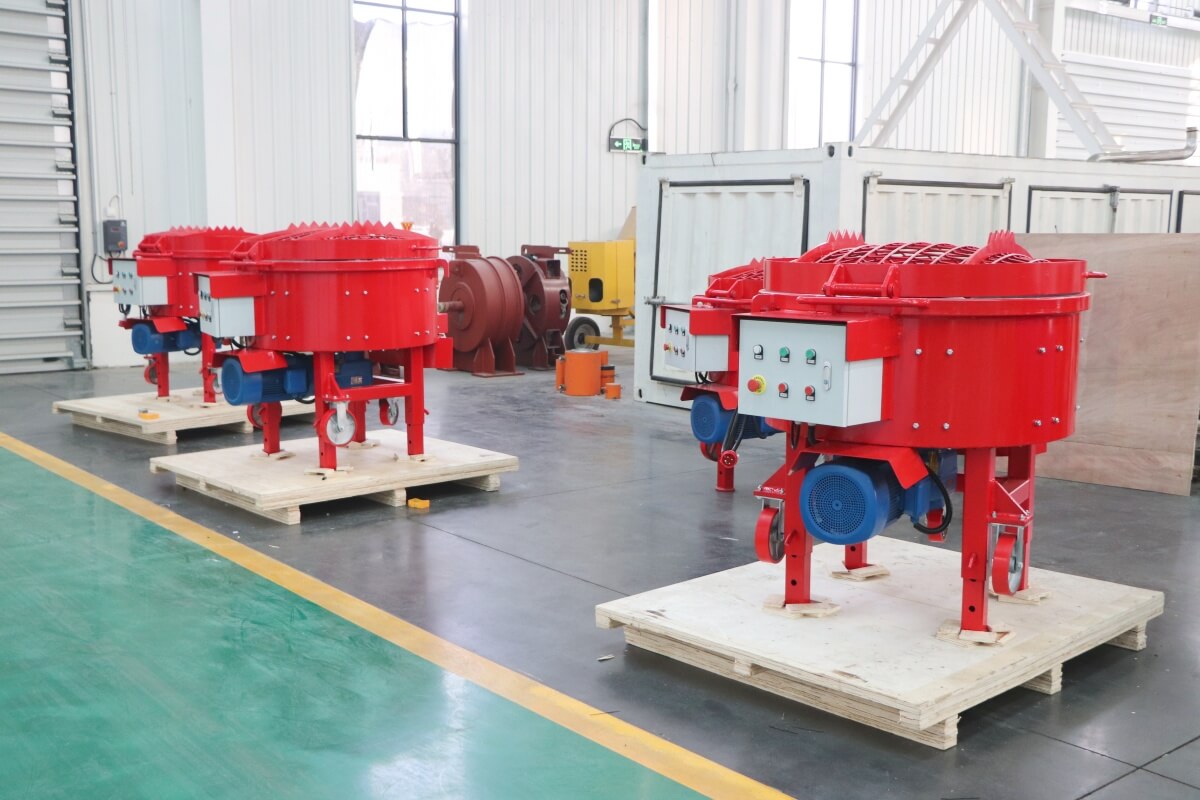

Pan Mixer for Refractory
The pan mixer for refractory materials is designed for fast and uniform preparation of castables, mortar and furnace lining compounds. Its high-torque mixing system, wear-resistant liners and durable blades make it suitable for steel plants, foundries, kilns and industrial furnace repair projects.
The pan mixer for refractory materials is a heavy-duty mixing machine developed for preparing refractory castables, fireproof mortar, furnace lining compounds and other dense or abrasive materials. Its powerful mixing system produces intensive material circulation inside the pan, allowing dry ingredients, water and additives to be distributed evenly throughout each batch.
The mixer is equipped with durable mixing blades and wear-resistant internal liners to withstand the abrasion caused by high-alumina castables, low-cement refractory materials and mineral aggregates. The optimized blade arrangement continuously lifts, turns and shears the material, helping achieve a uniform mixture with consistent moisture content.
Depending on the construction requirements, the refractory pan mixer can be equipped with a controlled water-feeding system, protective cover, manual or hydraulic discharge gate and mobile supporting frame. Different batch capacities and power configurations are available for refractory installation, furnace maintenance and prefabricated refractory production.
Key Features of Pan Mixer for Refractory:
Heavy-duty structure for demanding refractory applications
High-torque mixing system for dense and abrasive materials
Fast and uniform mixing of dry materials, water and additives
Replaceable wear-resistant liners inside the mixing pan
Durable mixing arms and blades for extended service life
Suitable for low-cement and high-alumina refractory castables
Optional water measuring and automatic water-feeding system
Manual or hydraulic discharge gate for convenient unloading
Large discharge opening for rapid material removal
Protective cover available for improved dust control
Compact construction for workshop and job-site operation
Easy access for cleaning, inspection and replacement of wear parts
Electric or diesel power configurations available
Stationary, skid-mounted or mobile options available
Customized mixing capacity according to project requirements
Working Principle of Pan Mixer for Refractory:
After the dry refractory materials are loaded into the mixing pan, the rotating mixing blades generate strong material circulation and continuous shearing action. Water and liquid additives are introduced according to the required formulation.
The mixing blades repeatedly move the material from the bottom and sides of the pan toward the central mixing area. This intensive movement helps break up material clusters and distribute moisture evenly. After the required mixing consistency is achieved, the finished refractory mixture is discharged through the bottom or side outlet for casting, pumping, spraying or manual installation.
Applications of Pan Mixer for Refractory:
The pan mixer for refractory materials is widely used for preparing installation and repair materials in:

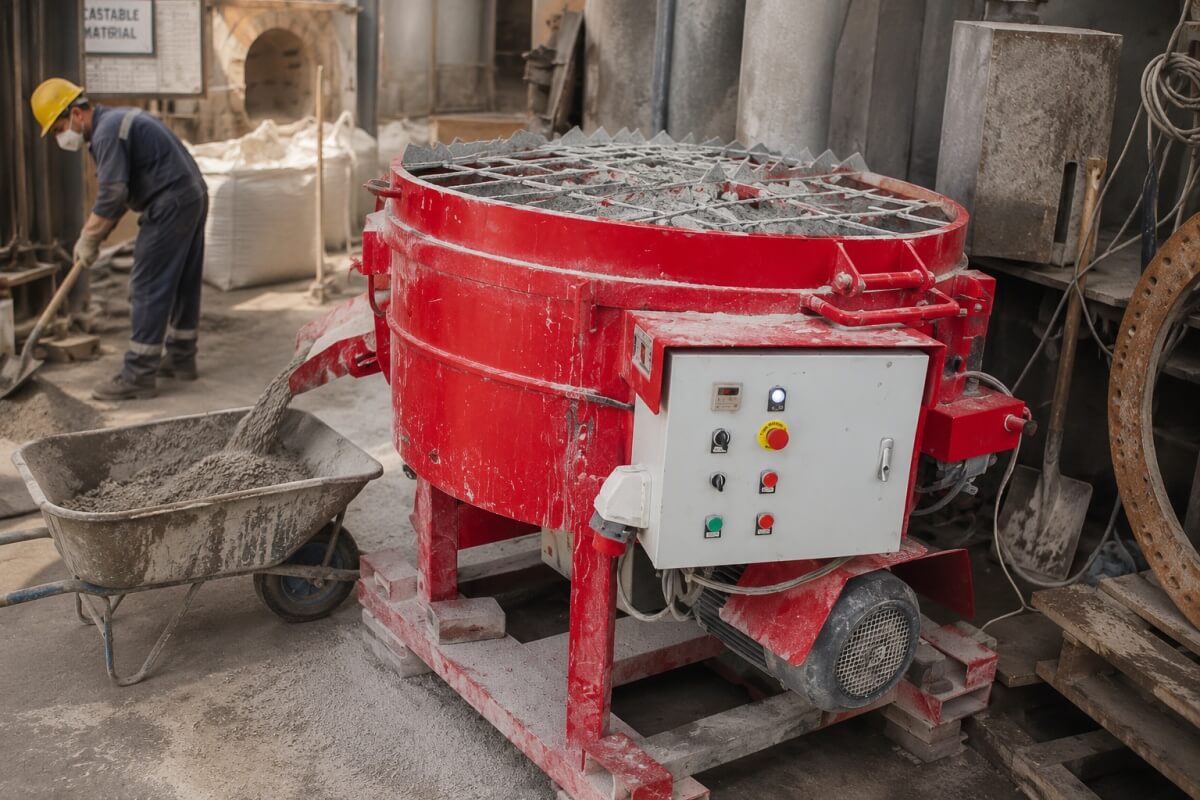

Steel plants
Iron foundries
Coke plants
Cement production plants
Glass manufacturing facilities
Ceramic factories
Aluminum smelting plants
Waste incineration plants
Petrochemical facilities
Power plants
Industrial furnace maintenance companies
Refractory material production factories
Typical refractory applications include:
Steel ladle lining
Tundish lining construction
Blast furnace maintenance
Electric arc furnace repair
Induction furnace lining
Coke oven refractory repair

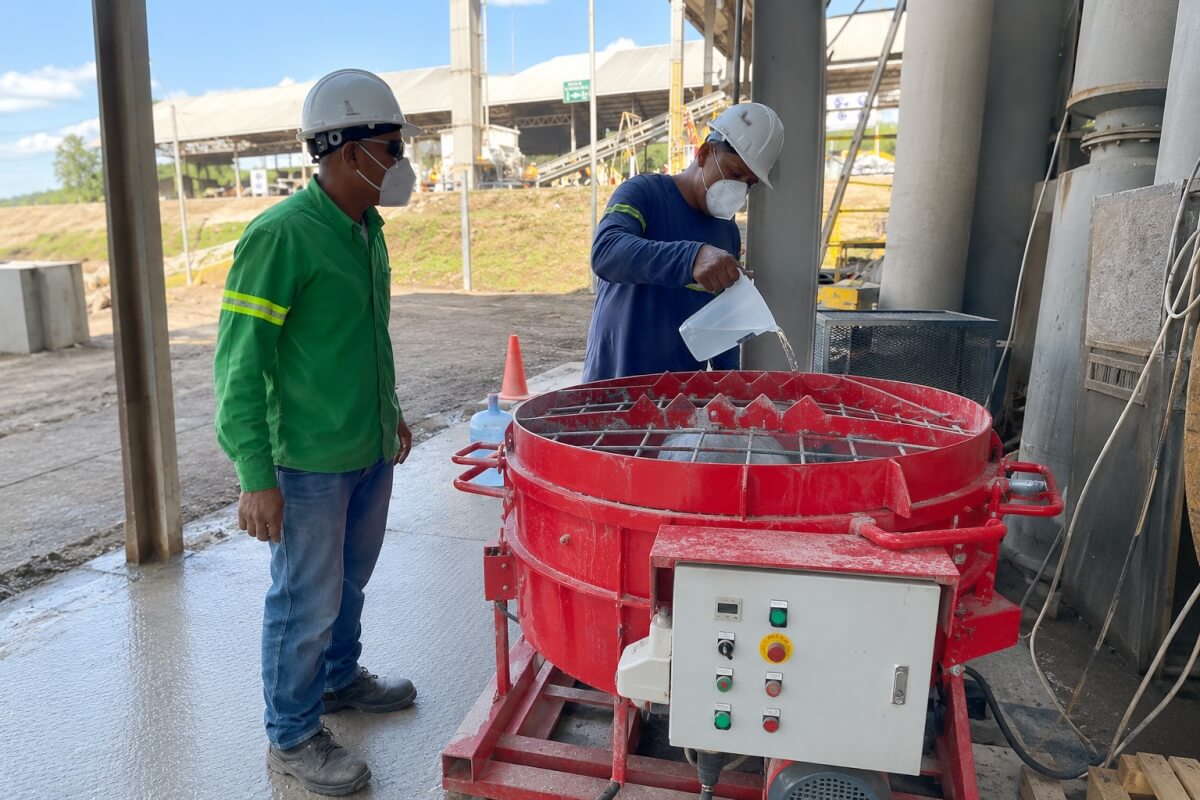

Cement rotary kiln maintenance
Glass furnace lining restoration
Ceramic kiln repair
Incinerator lining construction
Chimney and flue maintenance
Refractory shotcrete material preparation
Pumpable castable preparation
Precast refractory component production
Material Applications:
The refractory pan mixer can be used for mixing:
Refractory castable
Low-cement castable
Ultra-low-cement castable
High-alumina castable
Insulating castable
Refractory mortar
Fireclay mortar
Furnace lining material
Refractory repair material
Dry refractory mixtures
Abrasion-resistant compounds
Heat-resistant concrete
Pumpable refractory castable
Refractory shotcrete mixtures
Ceramic and mineral materials
Why Choose a Refractory Pan Mixer?
Ordinary concrete mixers may not provide sufficient torque or wear protection when processing dense refractory materials. A specially designed refractory pan mixer provides more intensive material movement, better moisture distribution and greater resistance to abrasion.
The controlled mixing process helps improve batch consistency and reduces the risk of dry pockets or excessive local moisture. This provides more reliable material preparation for furnace lining, casting, pumping and refractory repair work.
Custom Configuration:
The equipment can be customized according to the refractory formulation, batch capacity and construction method. Available options may include:
Different mixing capacities
Electric or diesel power system
Automatic water measurement
Water spraying system
Hydraulic discharge mechanism
Manual discharge mechanism
Dustproof protective cover
Replaceable wear-resistant liners
Mobile wheels or forklift pockets
Skid-mounted supporting frame
Integrated mixer and refractory pump system
