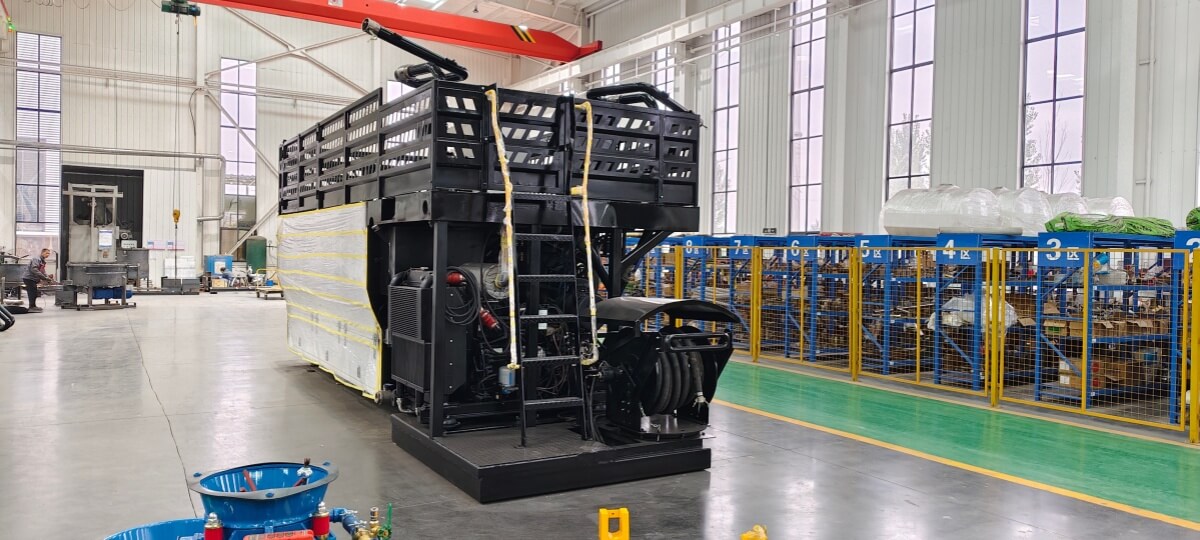

Cummins diesel engine large capacity hydroseeder

Cummins diesel engine large capacity hydroseeder has a 15000L tank capacity and a 190kw Cummins diesel engine, it is used for commercial landscaping, large-scale erosion control, mine reclamation, highway projects, and golf course construction. A Cummins diesel engine provides the sustained, powerful, and reliable performance needed to effectively operate the demanding systems (pump, agitator, blower if it’s a tow-behind) of a large-capacity hydroseeder over long workdays and challenging terrains.

Large capacity Cummins diesel engine hydroseeder advantages:
1. Powerful and Efficient Powertrain
Equipped with a 190kW Cummins diesel engine and an industrial-grade pneumatic high-torque clutch, it achieves a balance of stable power output and fuel economy under high-load conditions.

2. High-Flow Centrifugal Pump System
A 6-inch x 3-inch two-stage centrifugal pump design delivers a flow rate of 120 m³/h, efficiently conveying high-viscosity materials (such as wood fiber substrates) while reducing the risk of clogging.

3. Ultra-Long-Range Spraying Capability
The barrel-type sprinkler has a maximum spraying distance of 85 meters, covering complex terrain such as steep slopes and deep trenches, increasing the single-shot spraying area by 30%.
4. Symmetrical Dual-Barrel Spraying Design
Equipped with dual independent barrels, it supports synchronous or asynchronous spraying, making it suitable for applications requiring symmetrical coverage, such as roadside slopes and mine retaining walls.
5. 360° Rotating Hydraulic Hose Reel System
An integrated hydraulically driven hose reel enables automatic retraction and rotation of the hose, reducing manual intervention and improving operational continuity. 6. Double-Helical Enhanced Mixing Mechanism
The propeller-type agitator, combined with a coaxial liquid circulation system, ensures material uniformity, increases solids throughput to 95%, and prevents stratification and sedimentation.
7. Modular Material Chamber Design
The removable feed hopper allows switching between a dedicated wood fiber chamber and a general-purpose chamber to accommodate different mix ratios and reduce cleaning costs.
8. Intelligent Centralized Control System
The integrated electronic control panel monitors parameters such as engine speed, pump pressure, and mixing speed in real time, supporting one-touch start/stop and fault warnings.
9. Upgraded Wireless Remote Control
Equipped with a waterproof wireless remote control, it supports remote control of the device’s start/stop, steering, and spray angle adjustment within a range of 50 meters, ensuring safe operation.

Large capacity hydroseeder applications:

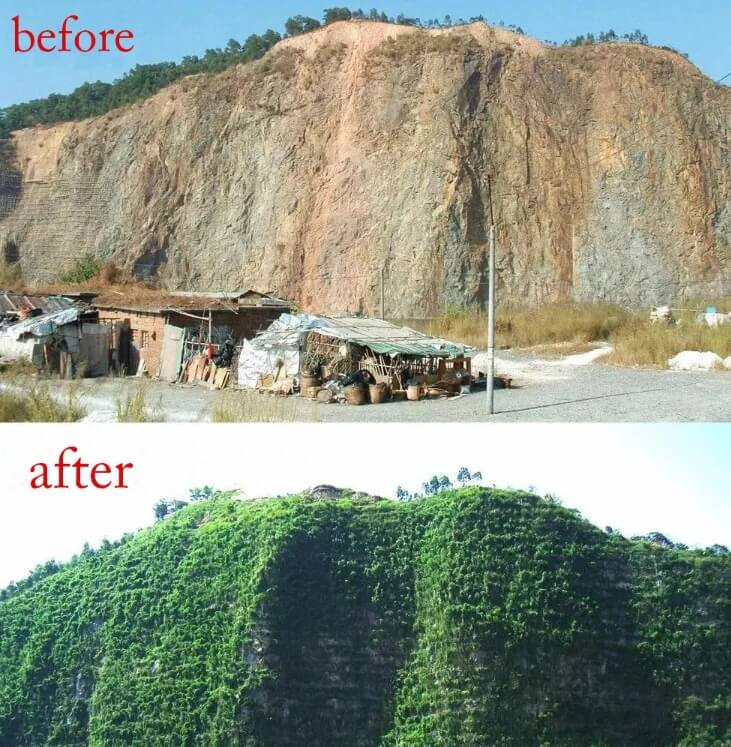

1. Slope Greening
Suitable for revegetation on steep slopes, such as those along highways, railways, and mines. It boasts a long spraying range and can cover areas with large elevation differences.
Mixed with high-concentration materials (60%-70% solids content), it ensures strong seed adhesion and survival rate.

2. Mine Reclamation
On exposed surfaces after mining, a mixture containing organic fertilizer and binders is sprayed to quickly establish a vegetation cover and suppress dust.
The powerful Cummins engine can transport high-viscosity materials and adapt to harsh terrain.
3. Land Reclamation and Dust Control
Used for temporary greening or dust control in areas such as construction sites and landfills, it offers high spraying efficiency and covers a wide area.
The centrifugal pump design can handle materials with high sand content, reducing the risk of clogging.

If you want to buy one or want to collect more product information about our cummins diesel engine large capacity hydroseeder, you can contact us directly via email, info@gaodetec.com
